• Model NO.：WDW-300D
• After-sale Customer Service：Yes
• Stock：Yes
• Transport Package：Standard Exporting Wooden Package
• Trademark：DahoMeter
• Origin：Dongguan, China
• HS Code：9027809900
• Production Capacity：300 Sets,Month

Standards

ASTMA370,ASTME4,ASTME8,ASTME9,ISO6892,ISO7438,ISO7500-1,EN10002-4,GB/T22
8-2002,etc

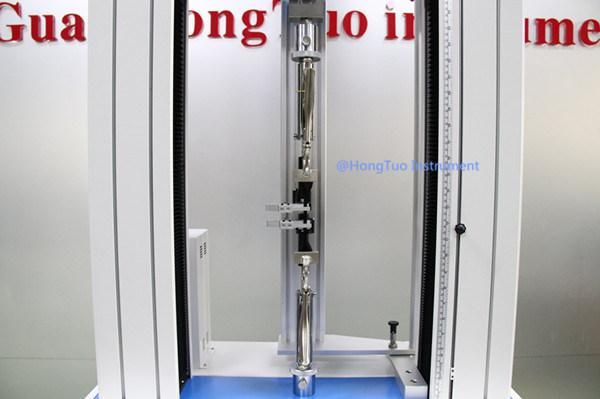

Specifications

1 Maximum stretching/compression space: 500mm;
2 Maximum test width: 570mm;
3 Maximum stroke of the beam: 1100mm
4 Maximum test force: 300 kN;
5 Test machine level: 1;
6 Test force measurement range: 2%-100% FS;
7 Test force measurement accuracy: ±1%;
8 The force resolution: 1/500000 of the full scale (only a resolution in full scale, regardless of
file);
9 Displacement measurement accuracy: ±1%;
10 Displacement measurement resolution: 0.001mm / 0.001μm;
11 Deformation measurement accuracy: ±1%;
12 Deformation measurement resolution: 0.001mm;
13 Displacement control speed range: 0.001 ~ 500mm / min;
14 Displacement control rate accuracy: within ±1.0% of the set value, the rate is <0.01
mm/min;
within ±0.2% of the set value , the rate is ≥0.01 mm/min, ;
15 Stress and strain control rate adjustment range : 0.005~5%FS/S ;
16 Stress and strain control rate adjustment accuracy: when the rate is <0.05% FS, it is within
±2% of the set value;
rate ≥0.05% FS, it is within ±0.5% of the set value ;
17 Host size: 1055 × 1010 × 2310mm;
18 Weight: 1600kg;
19 Power: 5kW;
20 Power supply: three-phase 380V ± 10%, 50Hz;
21 Environmental requirements: no vibration, no dust; room temperature 10 ° C ~ 35 ° C;
humidity ≤ 80%;
No vibration around, no corrosive medium, no strong magnetic field interference;

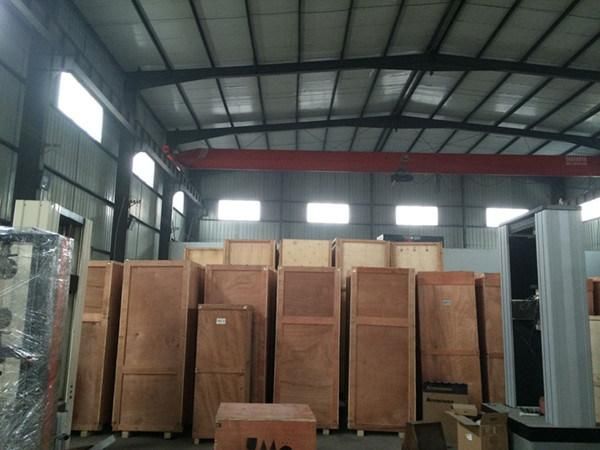

Packaging & Shipping




Company Information

We, Dongguan Hongtuo Instrument Co., Ltd, a China based company, are pleased to introduce ourselves as a notable testing equipments and machines manufacturer.Our company was established in the year 2000 with two primarily motto, which includes complete client satisfaction and to reach top-most position in the international market. The exceptional quality of our products like Gold Tester,Gold Testing Machine,Density Meter,Universal Tensile Testing Machine,Climatic Chamber,Melt Flow Index Tester,Charpy Impact Testing Machine,Tap Density Tester,Abrasion Tester,Ultrasonic Flaw Detector,Surface Roughness Tester and other Laboratory Testing Equipment, etc. is our company's USP.
