• Model NO.：WDW-300D
• After-sale Customer Service：Yes
• Stock：Yes
• Transport Package：Standard Exporting Wooden Package
• Trademark：DahoMeter
• Origin：Dongguan, China
• HS Code：9027809900
• Production Capacity：300 Sets,Month

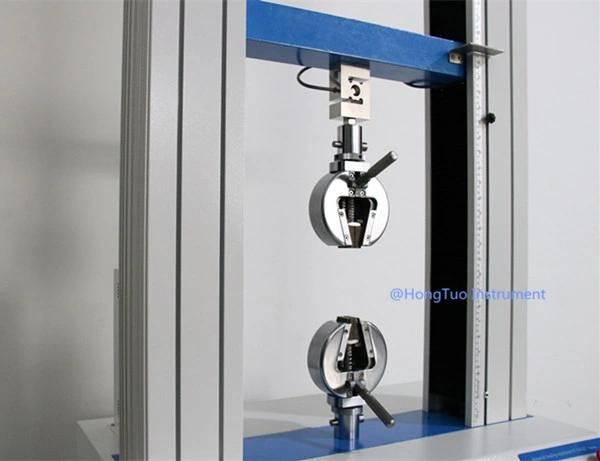

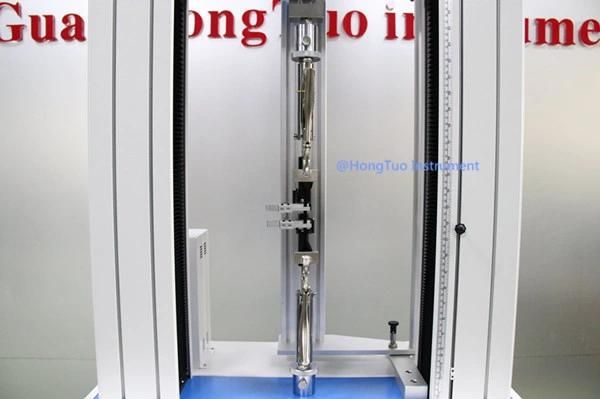

Application

It is applicable for wide range of material for tension, compression, bending, shearing and low
cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is
widely used in the corresponding industries, research and development, test institutes and
training centers etc.



Standards

ASTMA370,ASTME4,ASTME8,ASTME9,ISO6892,ISO7438,ISO7500-1,EN10002-4,GB/T22
8-2002,etc



Specifications

1 Maximum stretching/compression space: 500mm;
2 Maximum test width: 570mm;
3 Maximum stroke of the beam: 1100mm
4 Maximum test force: 300 kN;
5 Test machine level: 1;
6 Test force measurement range: 2%-100% FS;
7 Test force measurement accuracy: ±1%;
8 The force resolution: 1/500000 of the full scale (only a resolution in full scale, regardless of
file);
9 Displacement measurement accuracy: ±1%;
10 Displacement measurement resolution: 0.001mm / 0.001μm;
11 Deformation measurement accuracy: ±1%;
12 Deformation measurement resolution: 0.001mm;
13 Displacement control speed range: 0.001 ~ 500mm / min;
14 Displacement control rate accuracy: within ±1.0% of the set value, the rate is <0.01
mm/min;
within ±0.2% of the set value , the rate is ≥0.01 mm/min, ;
15 Stress and strain control rate adjustment range : 0.005~5%FS/S ;
16 Stress and strain control rate adjustment accuracy: when the rate is <0.05% FS, it is within
±2% of the set value;
rate ≥0.05% FS, it is within ±0.5% of the set value ;
17 Host size: 1055 × 1010 × 2310mm;
18 Weight: 1600kg;
19 Power: 5kW;
20 Power supply: three-phase 380V ± 10%, 50Hz;
21 Environmental requirements: no vibration, no dust; room temperature 10 ° C ~ 35 ° C;
humidity ≤ 80%;
No vibration around, no corrosive medium, no strong magnetic field interference;

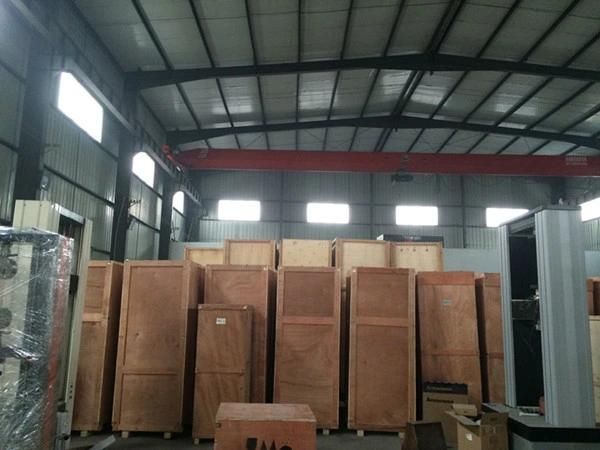

Packaging & Shipping
