ASTM D86 Low Temperature Distillation Analyzer Apparatus for Petroleum Products (Double units)
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.- Product Name:Distillation Analyzer for Petroleum Products
- Standard:ASTM D86, GB,T6536
- Measurement Range:0~60celsius
- Refrigeration:Yes
- Single/Double Unit:Double
- Atmospheric/Vacuum:Atmospheric
Base Info
- Model NO.:GD-6536B
- Usage:Determine The Distillation Characteristics
- Delivery Time:10 Working Days(If Urgent, We Can Push)
- Test Parameter:Petroleum Products
- Transport Package:Wooden Case for Gd-6536b
- Trademark:GOLD
- Origin:Chongqing, China
- Production Capacity:100 Sets, Month
Description
It adopts low temperature and double units working mode. The minimum temperature can set to 0ºC. It can do test for one sample or two samples at same time.It highly improves the work efficiency.
It adopts digital temperature controller, stainless-steel heater, new type refrigeration compressor and electric stirrer to constitute constant temperature bath. The temperature in the bath is uniform,can fully meet the requirements of test.
It adopts special designed structure, cooling speed is fast.The bath temperature can cool down from room temperature to 0ºC within 50 minutes.
It adopts special heating furnace to ensure the safety of test. Heating power can be continuously adjusted to meet the requirements of test
Specifications:
Product name
ASTM D86 Distillation Analyzer Apparatus for Petroleum Products
Power supply
AC(220±10%)V, 50Hz
Heating power
1000W*2
Receiving cylinder
100ml, division value is 1ml.
Distillation flask
125ml,meet the requirements of GB/T 6536 and ASTM D86
Thermometer
(-2~300)ºC and (-2~400)ºC. Division value 1ºC.
Flask support board
SiC, bore diameter is: Φ32mm, Φ38mm, Φ50mm.
Temperature controller
1) Range: 0ºC~60ºC
2) Accuracy: ±0.5ºC
3) Display: LED
Note: The temperature control is to control the temperature of condensate in the condenser pipe.
Ambient temperature:
≤30ºC
Relative humidity
≤85%
Cooling system
New type refrigeration compressor
Maximum power consumption
4000W
Dimension
730*530*580mm

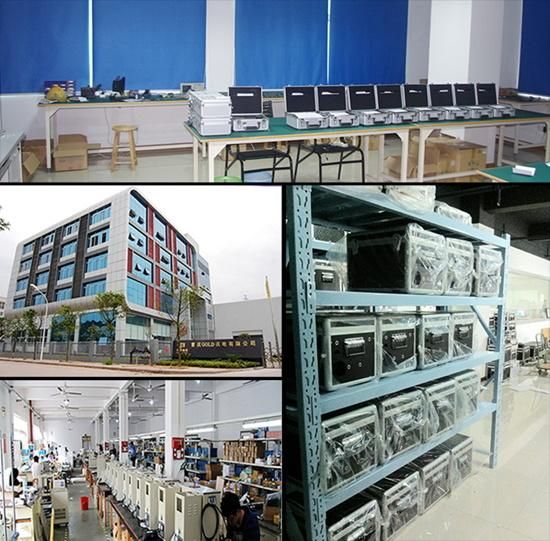

Company Information:
