• Model NO.：HZ-1913
• Weight：0-100Kg
• Power Source：AC220V
• Test Range：0.002 ~ 1mg KOH , G
• Power：500W
• Huminity：≤85% Rh
• Power Supply：AC220V , 50Hz
• Repeatability：≤0.005mg KOH , G
• Measurment Error：≤ ± 0.005mg KOH , G
• Measurement Error：≤ ± 0.005mg KOH , G
• Standards：GB,T7599-87, GB,T264-83, GB,T28522-2002
• Aftersales Service：Yes
• Transport Package：Wooden Box with Foam Inside
• Specification：CE,ISO,IEC
• Trademark：HuaZheng
• Origin：Hebei, China
• HS Code：9031809090
• Production Capacity：100 PCS,Month

Basic Info.

Model NO. HZ-1913 Weight 0-100Kg Power Source AC220V Test Range 0.002 ~ 1mg KOH / G Power 500W Huminity ≤85% Rh Power Supply AC220V / 50Hz Repeatability ≤0.005mg KOH / G Measurment Error ≤ ± 0.005mg KOH / G Measurement Error ≤ ± 0.005mg KOH / G Standards GB/T7599-87, GB/T264-83, GB/T28522-2002 Aftersales Service Yes Transport Package Wooden Box with Foam Inside Specification CE/ISO/IEC Trademark HuaZheng Origin Hebei, China HS Code 9031809090 Production Capacity 100 PCS/Month

Product Description

Titration Value Testing Equipment Automatic Content Potentiometric Titrator For Sale

I.General

With new microprocessor technology, the meter can show relevant measuring methods, titration curve, test result. It has friendly operating interface for convenience.

The meter has several titration modes including Pre-titration, Preset endpoint titration, blank titration or manual titration. After titration, the meter can generate special titration modes directly which enlarges the operating range. The meter can perform pH measurement, acid and alkali titration, oxidation-reduction titration, precipitation titration, complexometric titration and non-aqueous titration with different kinds of electrodes.

The meter adopts burette integration to decrease mutual interference among different solutions.

The transmission system has been improved to reduce the size of the meter and noise during operation. The stirring system adopts PWM technology to adjust the speed of stirring system.

The titration system applies the material which resists perchloric acid and it can perform non-aqueous titration.

With the function of power-off protection, the meter will save the measuring data and parameters when it is power off at un-normal condition.

The meter has USB interface which can be connected to the computer. It is controlled by the professional software. It can display titration curve, ion valence on the computer. It can edit and modify the titration mode, and statistic.

It supports GLP Norm and can save 200 sets of titration data.

It can also save titration curve.

It supports firmware upgrade, function extension and individual requirements.



II.Specifications Measuring range

2.1. pH: (0.00~14.00)pH;

mV: (-1800.0~1800.0)mV;

Temp:(-5.0~105.0)ºC.

2.2.Resolution:

pH: 0.01pH; mV: 0.1mV; Temp:0.1ºC.

2.3. Relative accuracy:

pH: ±0.01pH±1 bit; mV: ±0.03% Full Scale; Temp:±0.3ºC;

2.4. Burette volume accuracy 10mlburette:±0.025ml; 20mlburette:±0.035ml.

2.5. Burette filling solution speed:55±10s(When the burette is in full scale)

2.6. Reproducibility of titration analysis:0.2%.

2.7. Relative reproducibility:≤0.2mV.

2.8. Relative stability:±0.3 mV±1 bit/3h.2.9.Sensitivity of controlling titration:±2mV.

2.10.  Normal working conditions:

Environments temperature:(5.0~35.0)ºC; Relative humidity:≤80%;

Power supply:(220±22)V,Frequency(50±1)Hz; There should be no disturbance of electromagnetic field

2.11. Dimension(mm):340×400×400(length×width×height).

2.12. Weight(kg):about 10

III.Company Information

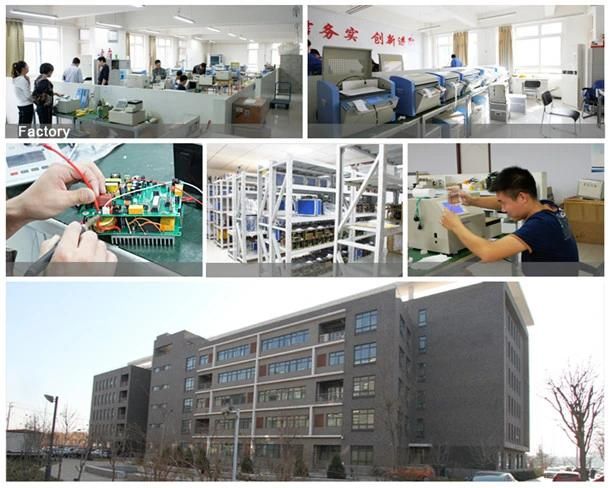

HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.

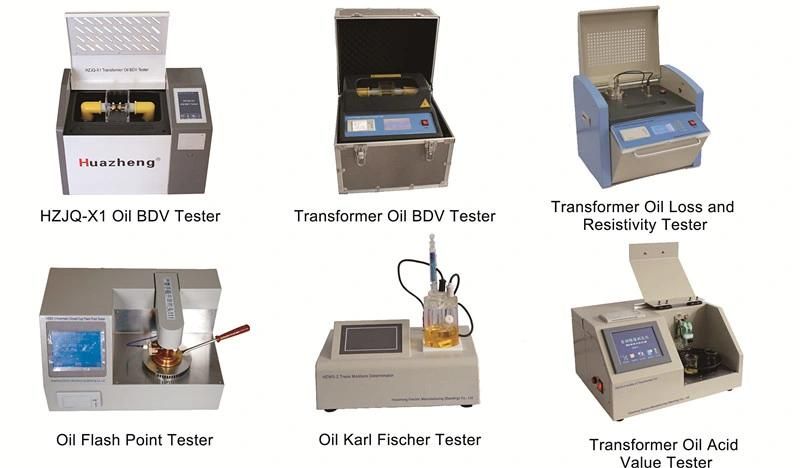

Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.
