Matest Quality Pendulum Skid Resistance and Friction Coefficient Tester
Zhuozhou Tianpeng Imp. & Exp. Trade Co., Ltd.- Usage：Road Friction Coefficient Tester
- Product Name：Pendulum Skid Resistance Tester
- Transport Package：Aluminum Flight Case and Pallet
- Specification：Standard: BS EN 1097-8
- Trademark：C-Tech
- Origin：China
Base Info
- Model NO.：48-B0192
- HS Code：90248000
- Production Capacity：300 Per Month
Description
Basic Info.
Model NO. 48-B0192 HS Code 90248000 Production Capacity 300 Per MonthProduct Description

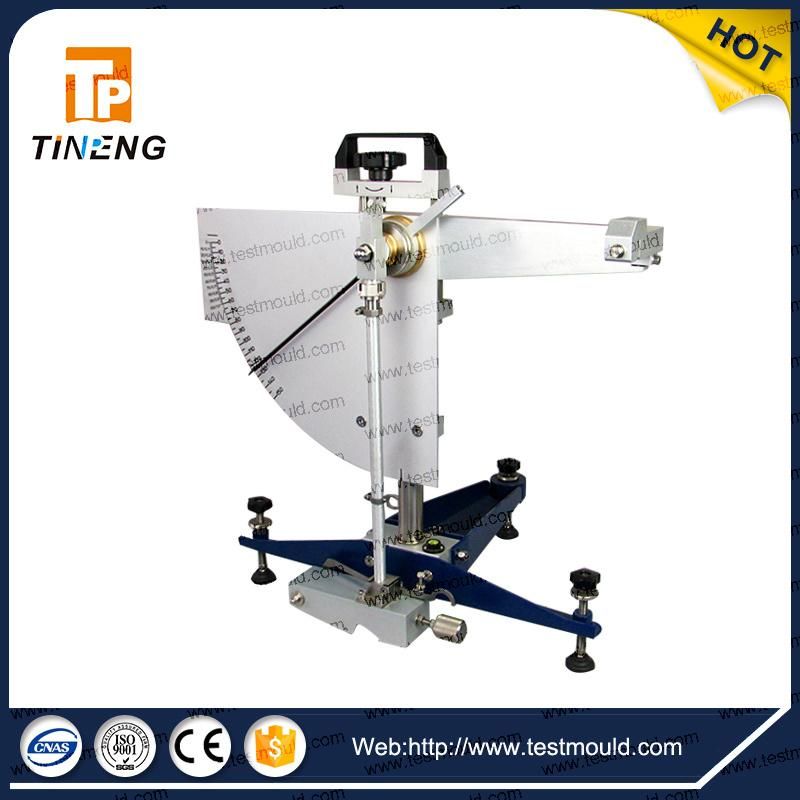

Pendulum skid resistance and friction coefficient tester
The Pendulum Skid Tester measures the frictional resistance between a rubber slider mounted on the end of a pendulum arm and the test surface. This provides highway engineers with a routine method of checking the resistance of wet and dry surfaces to slipping and skidding, both in the lab and on site.
Specifications:
1, Rocker weight: 1500±30g
2, Distance between rocking centre and center of gravity : 410±5mm
3, Positive static pressure on pavement: 22.2±0.5kN
4,Package:Flight Case
5, Package dimension:770mm*780mm*510mm
6,Net weight of tester: 17kgs
7, Gross weight approx: 45kgs
