ISO20345-2011 Computer System Servo Control Universal Testing Machine (GW-011A)

GREAT WIN INSTRUMENT CO., LTD.
  • Type：Strength Testing Machine
  • Maxcapacity：2000kg
  • Accuracy Grade：1
  • Load Way：Electronic Load
  • Loading Method：Dynamic Load
  • Display：Digital

Base Info

  • Model NO.：GW-011A
  • Control：Computer Control
  • Weight：100-500Kg
  • Power Source：AC220V
  • Oil Cylinder Position：Electric Control
  • Packaging：Wooden Case
  • Export Markets：Global
  • Model No：Gw-011A1
  • Print：Print The Test Result
  • Testing Speed：0-500mm,Min
  • Max.Load：2t
  • Unit：Kg, N, Lb
  • Motor：AC Serve Motor
  • Testing Stroke：800mm or 1000mm
  • Power：AC 220V, 50Hz
  • Trademark：Great Win
  • Origin：China
  • HS Code：9024800000
  • Production Capacity：500 Pieces,Year

Description

Load weight
 0.25 high-precision force sensor --- NTS (original import).
 Capacity selection
 100N 200N 500N1000N 2000N 500KG is available.
 Accuracy level
 0.25
 Test force test range
 0.2% to 100% FS
 Power accuracy
 ±0.25%
 Power decomposition
 1/300000
 Power magnification
 X1, X2, X5, X10, X20, X50, X100, etc.Automatic shift switching
 Displacement indication error
 ±1% of the value of the whole process.
  Displacement resolution
 0.00004mm.
 Motor function
 0.4KW
 Test width
 40 width / interval / manual take point
 Walking space
 1500mm
 Stroke Resolution
 0.00004mm
 Extensometer Resolution
 0.0001 mm
  Voltage
 AC 220V



•Standard for:
ISO7500/1,ISO 20345-2011,JJG475-88,ASTME4,DIN5122,JISB7721/B7733,EN1002-2,BS1610,
CNS9471/9470,GB/T532-2008,GJB2589.3


•Attached accessories:

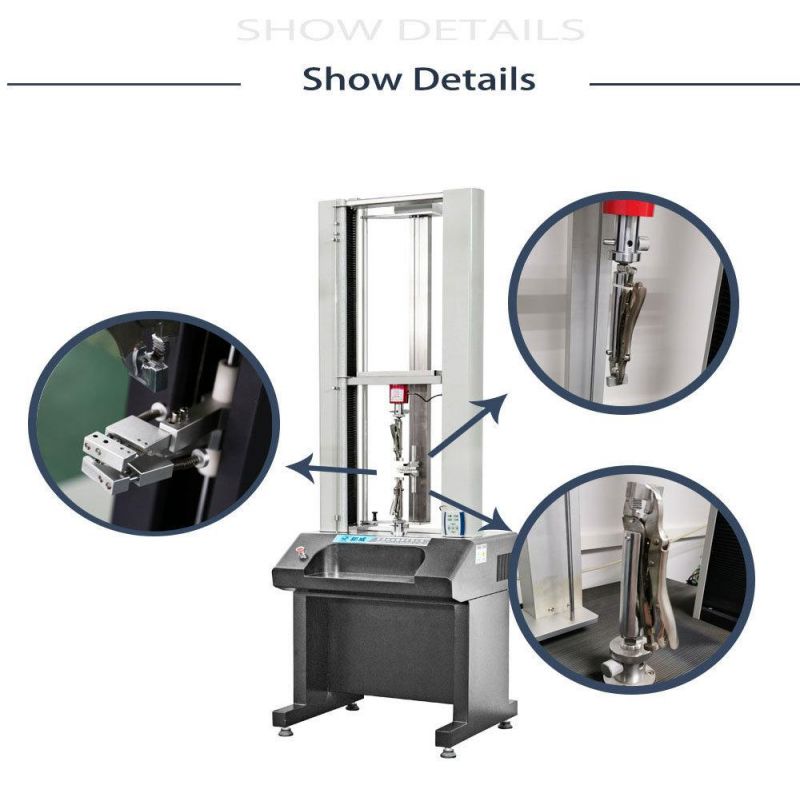

3 sets of grips (GW-G: Pliers grips; GW-O: leather tear grips; GW-C: Elastomeric grips)
2 die moulds

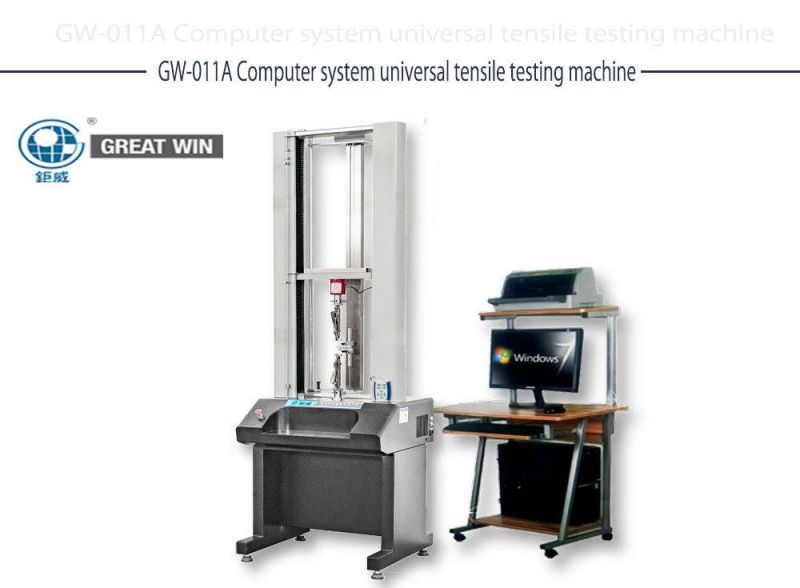

Lenovo business PC with 17 inch screen, software CD, Canon printer  (for computer desk, customer prepared by customers.)

ISO20345-2011 Computer System Servo Control Universal Testing Machine (GW-011A)
ISO20345-2011 Computer System Servo Control Universal Testing Machine (GW-011A)
ISO20345-2011 Computer System Servo Control Universal Testing Machine (GW-011A)ISO20345-2011 Computer System Servo Control Universal Testing Machine (GW-011A)ISO20345-2011 Computer System Servo Control Universal Testing Machine (GW-011A)ISO20345-2011 Computer System Servo Control Universal Testing Machine (GW-011A)ISO20345-2011 Computer System Servo Control Universal Testing Machine (GW-011A)ISO20345-2011 Computer System Servo Control Universal Testing Machine (GW-011A)ISO20345-2011 Computer System Servo Control Universal Testing Machine (GW-011A)ISO20345-2011 Computer System Servo Control Universal Testing Machine (GW-011A)
What about the product quality?
For our products, each instrument must be carried out 100% quality calibration and test when delivery goods. With CE certificate, we are very confident in our products, and we will pack them with safety wooden case to protect the machine when transport oversea.

What about usage of the machine?
We will also give your professional guidance(Product operating manual and video), each products comes with a USB flash drive which have all the details.

What about warranty?
Guarantee one years( if the parts damage within one year, we can replace the part for free)
If customer need any technical support, we can help them solve their problem through email, video meeting. We also can provide door to door service, but customer need to bear the travel fees.

What about standards support?
We are strictly following different international standards such as EN, ISO, ASTM, AATC, JIS, GB ect, and had been recognized by SATRA, CSA international standard agency.
