• Model NO.：YG(B)026HC
• Power Source：AC220V
• Measuring Range：500n,1000n,2500n,5000n,10000n
• Clamping Modle：Manual,Pneumatic
• Force Accuracy：0.2%F.S
• Max. Stroke：800mm
• Clamping Distance Accuracy：±0.1mm
• Stretching Speed：(0.001 ~ 1000)mm,Min
• Gantry Width：420mm
• Elongation Resolution：0.001mm
• Sampling Frequency：2000 Times,Second
• Transport Package：Export Package
• Trademark：DARONG
• Origin：China
• HS Code：9024800000
• Production Capacity：100sets,Month

Basic Info.

Model NO. YG(B)026HC Power Source AC220V Measuring Range 500n/1000n/2500n/5000n/10000n Clamping Modle Manual/Pneumatic Force Accuracy 0.2%F.S Max. Stroke 800mm Clamping Distance Accuracy ±0.1mm Stretching Speed (0.001 ~ 1000)mm/Min Gantry Width 420mm Elongation Resolution 0.001mm Sampling Frequency 2000 Times/Second Transport Package Export Package Trademark DARONG Origin China HS Code 9024800000 Production Capacity 100sets/Month

Product Description

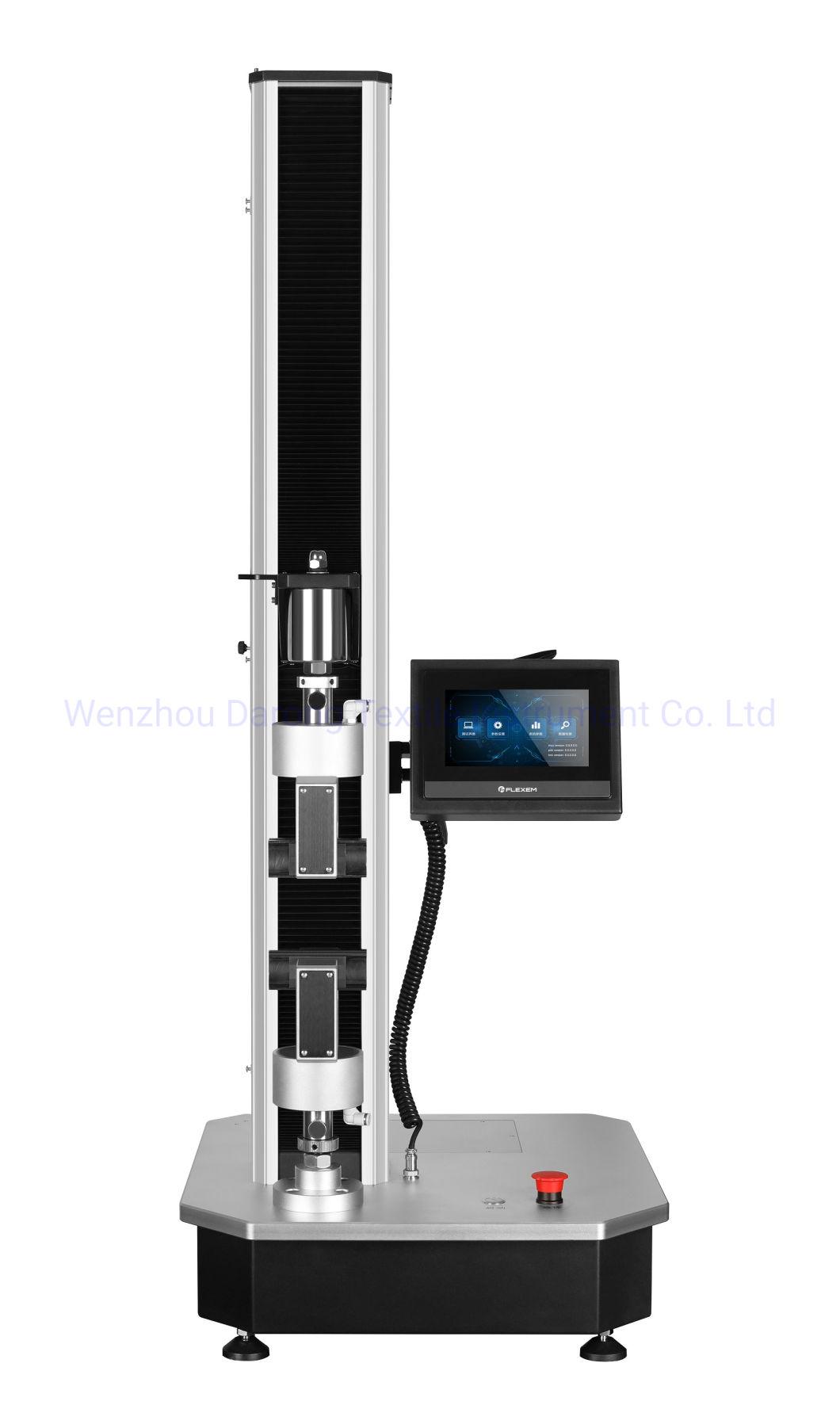

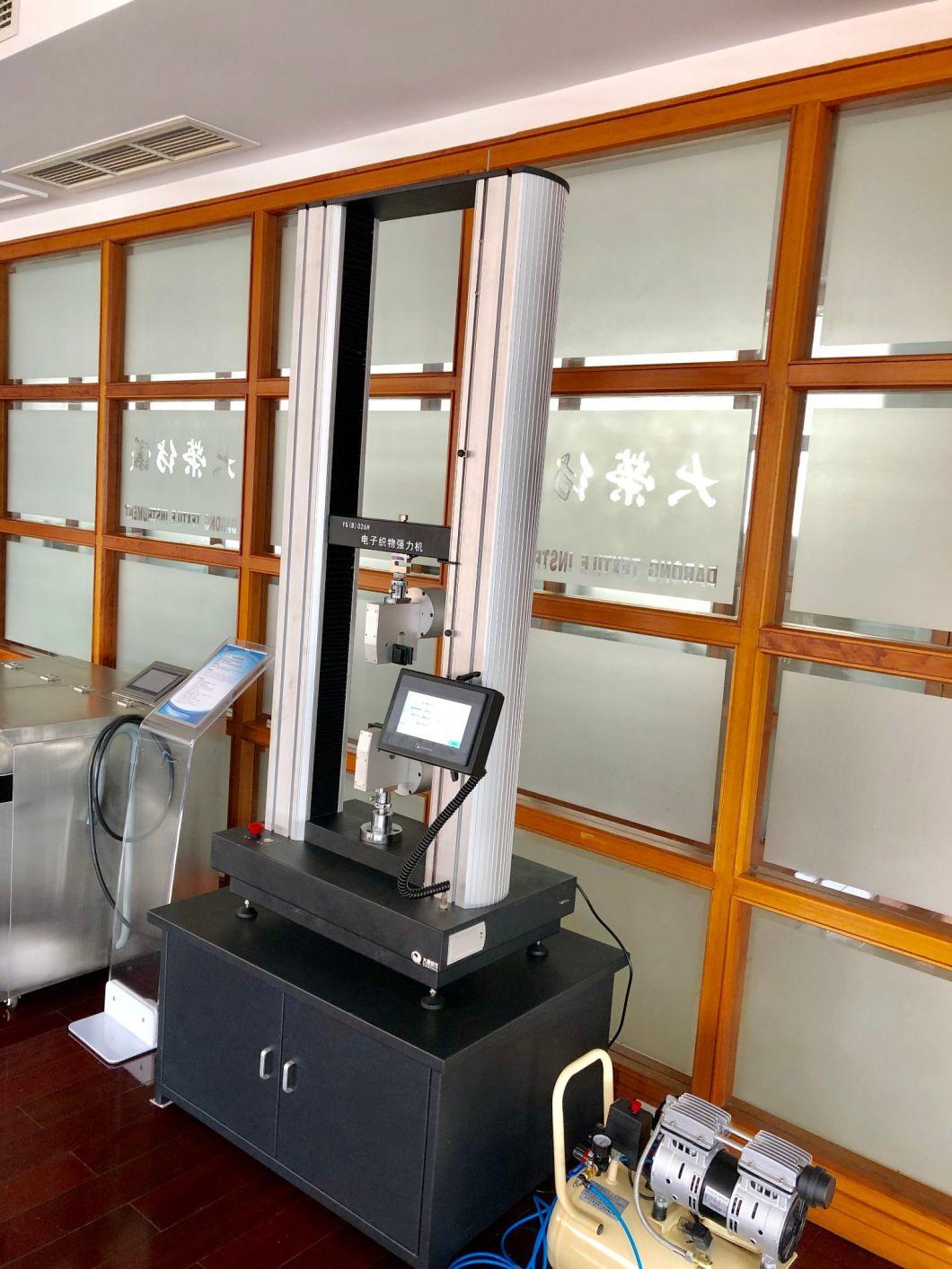

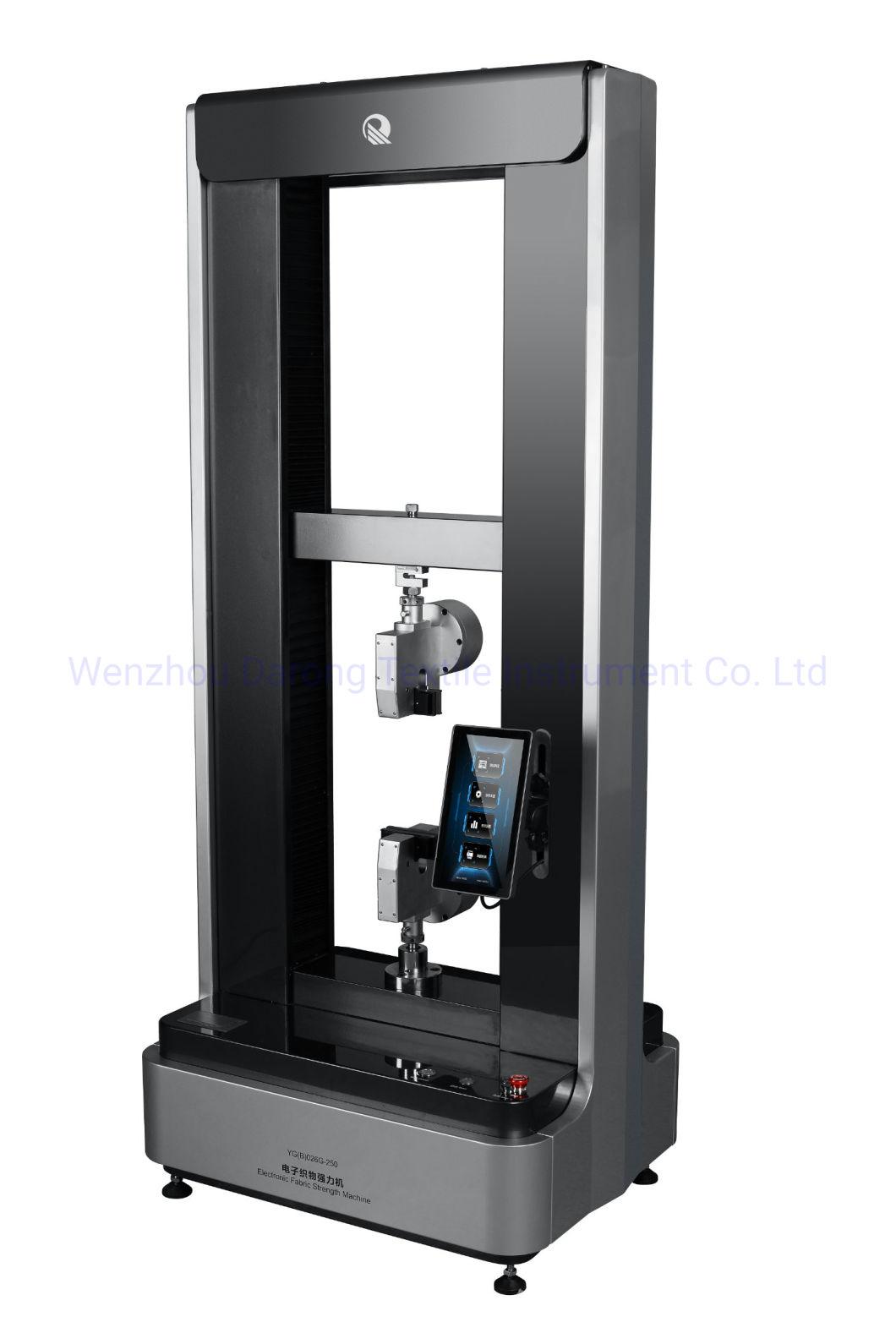

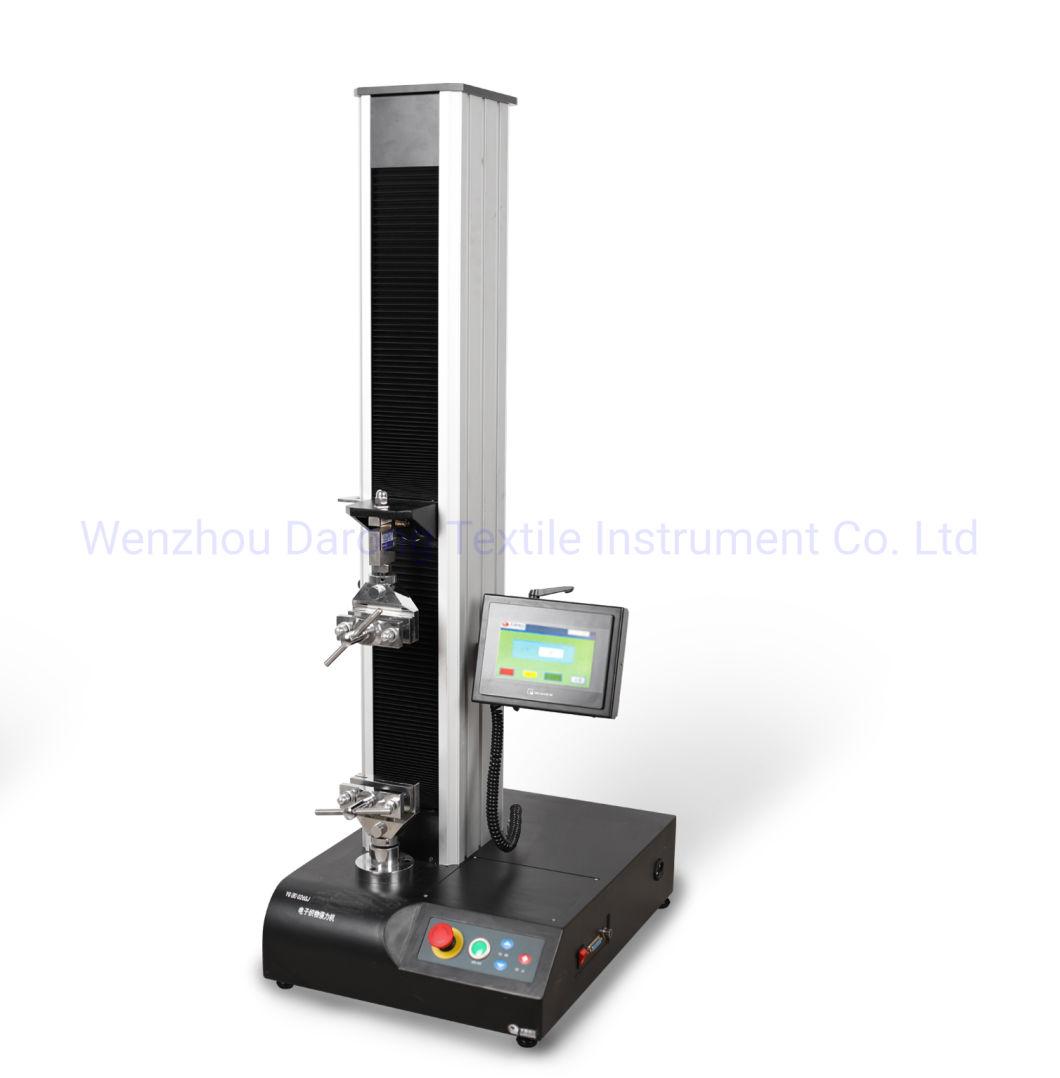

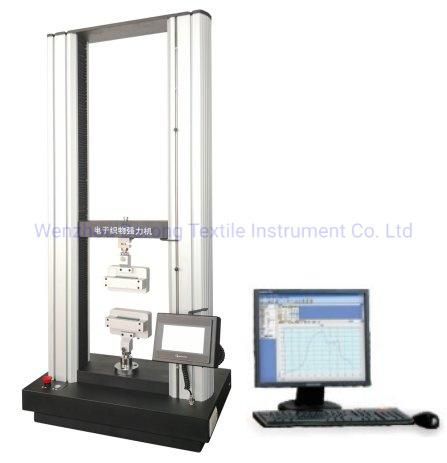

YG (B) 026HC Electronic Strength Machine
[Scope of application] :
Used for testing the mechanical properties of various textiles such as stretching, tearing, topping, fixed elongation, fixed load, elasticity, thread slip and stripping.
And widely used in rubber, plastic, leather, metal, wire, paper, packaging, building materials, petrochemical, electrical, geotechnical materials tensile, compression, bending, bonding, peel, tear, breaking, creep test of force, elongation, deformation test.

[Related standards] :
GB/T3923.1/2, FZ/T70006, FZ/T70007, ISO4606,GB/T13772.1/2/3, FZ/T20019, FZ/T01030, ISO9073.3/4GB8687, FZ/T01085, ISO13934.1/2, ISO13935.1/2, ASTM D5034, ASTM D5035, ASTM D2261, ASTM D4964,ASTM D5587, ASTM D3936, ASTM D1683 (replace 434) JIS L1096, etc



[Instrument characteristics] :
1, sampling frequency up to 2000 times/second.
2, more power motor and advanced servo control drive system, higher reliability.
3, modular design, support online communication, two-way control.
4, the equipment comes with a thermal printer, fast output test results.
5, the instrument adopts precision grade C5 above ball screw
6, excellent precision guide rail for neutralization and bending
7. The seventh generation digital Signal Processing (DSP) control technology based on embedded system
8, powerful, easy to use on the computer control software

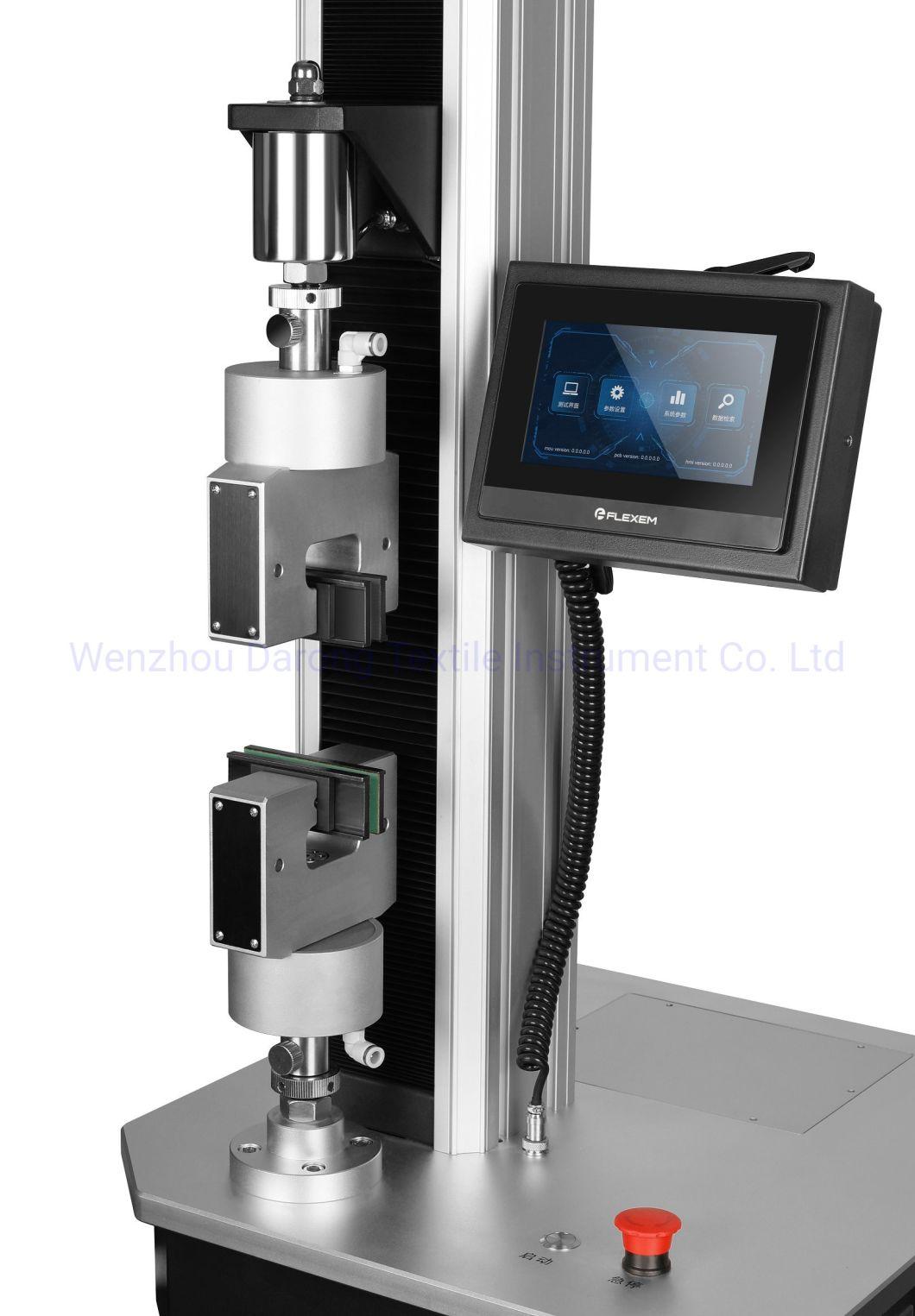

9, equipped with an independent color touch screen controller, easy to move or installed on the rack, any appropriate position, display the machine working state, and provide the test control process required positioning, inching, moving and other operation control

[Technical parameters] :
1, Working mode: constant speed extension (CRE) principle, microcomputer control, touch screen display, support online communication.
2, comprehensive sampling rate: 2000 times/second

3, Measuring range: full range of 1% ~ 100% model

Model #	50	100	250	500	1000
Full range	500N	1000N	2500N	5000N	10000N
Indexing value	5cN	0.1N	0.1N	0.1N	1N

4, test accuracy: ≤0.2%F·S
5, clamping mode: pneumatic, manual two
6, stretching speed: (0.01 ~ 1000)mm/min
7, effective range: 800mm
8, elongation resolution: 0.01mm
9, gantry width: 400mm
10, power source: AC220V±10% 50Hz 750W
11. Overall size :(750×450×1550)mm
12, weight: 150kg
