• Model NO.：GW-054
• Loading Method：Dynamic Load
• Display：Digital
• Control：Manual Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Electric Control
• Packaging：Wooden Case
• Export Markets：Global
• Model No：Gw-054
• Big Idler Wheel Diameter：162.0+,-0.5mm
• Small Idler Wheel Diameter：160.0+,-0.5mm
• Idler Wheel Speed：80 mm
• Size：70*47*60cm
• Power：AC 220V,50Hz
• Transport Package：Wooden Case
• Specification：50kg
• Trademark：Great Win
• Origin：China
• HS Code：9024800000
• Production Capacity：500 Sets,Year

Basic Info.

Model NO. GW-054 Loading Method Dynamic Load Display Digital Control Manual Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Electric Control Packaging Wooden Case Export Markets Global Model No Gw-054 Big Idler Wheel Diameter 162.0+/-0.5mm Small Idler Wheel Diameter 160.0+/-0.5mm Idler Wheel Speed 80 mm Size 70*47*60cm Power AC 220V,50Hz Transport Package Wooden Case Specification 50kg Trademark Great Win Origin China HS Code 9024800000 Production Capacity 500 Sets/Year

Product Description

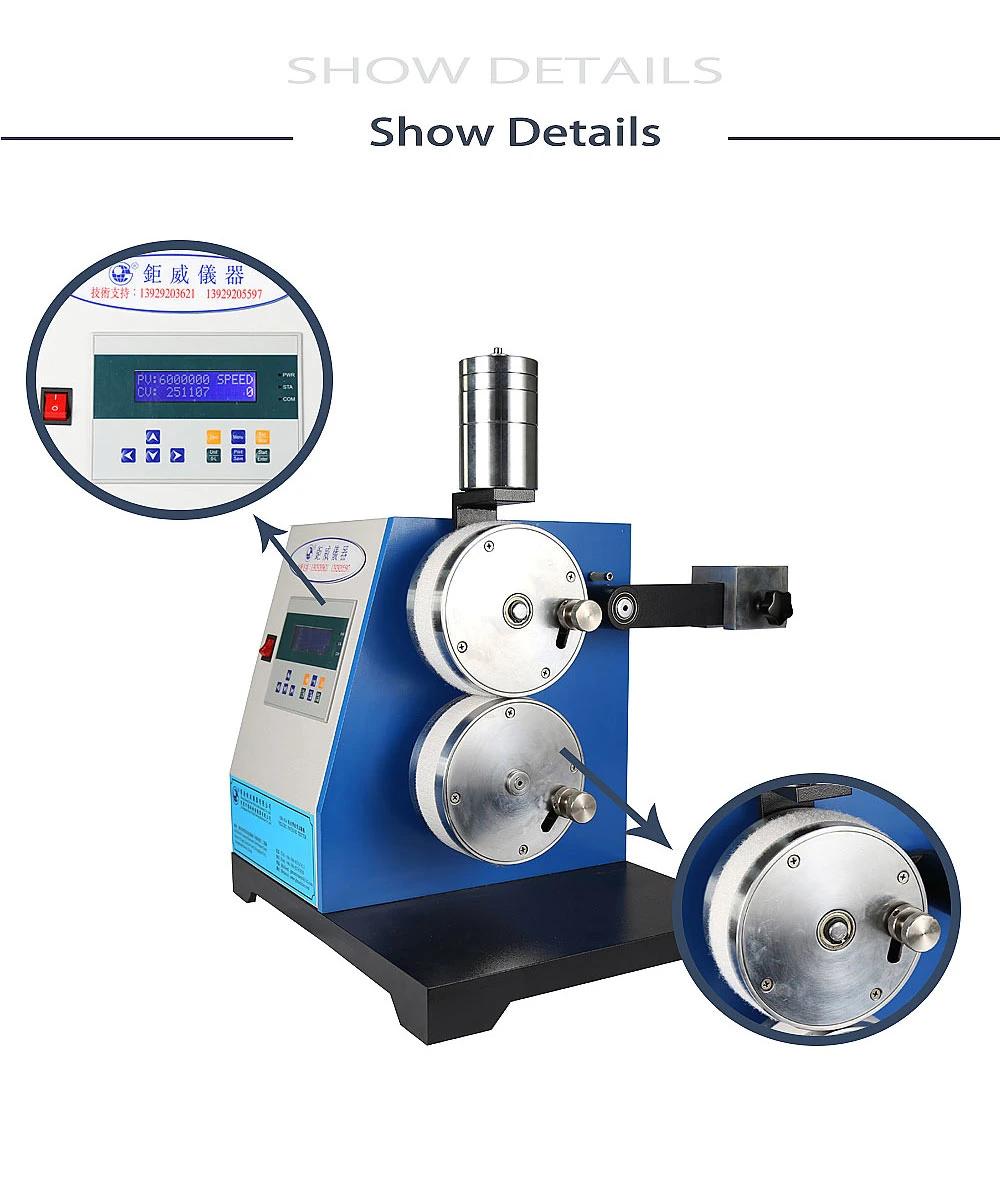

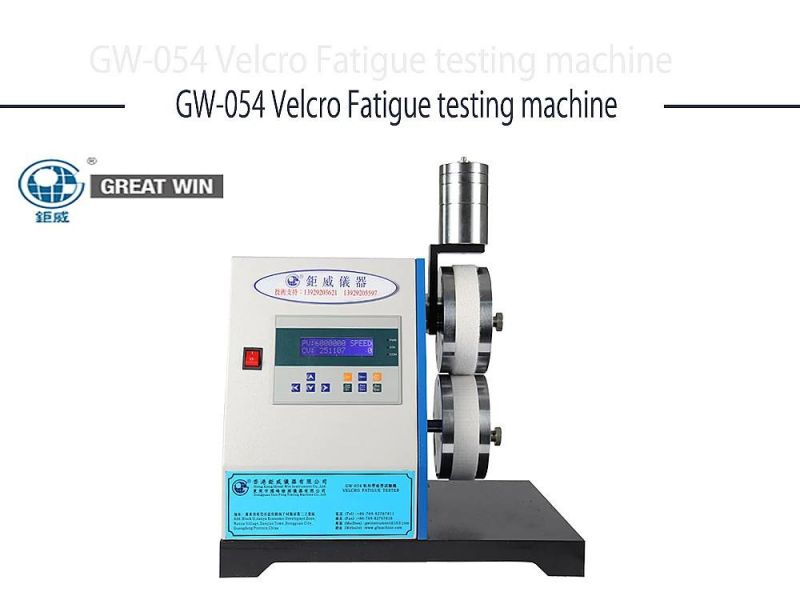

Velcro fatigue testing machine/Equipment( GW-054)

•Brief introduction:
The machine repeatedly peels and attaches the hook and loop fastener. After a certain number of times, the test piece is cut into 75X20mm, and then the test piece is pressed by the weight of the roller itself to make it evenly fit, and then another Purchased tensile testing machine to determine adhesion and bond strength.


•Technical Specifications:

Model	GW-054 Velcro fatigue testing machine
1.The diameter of big idler wheel:	162.5±0.5mm
2.The diameter of big small wheel:	160.0±0.5mm
3.The width of idler wheel:	80mm
4.The speed of idler wheel:	60±5cpm/72±5cpm(adjustable)
5.Size:	70X47X60cm
6.Weight:	51kg
8.Power:	AC220V 50HZ s

•Standard for:

GB/T 3903.20,GB/T 3903.21,GB/T 23315,ISO 22777
     ISO 22776,DIN 3415 ,SATRA TM 123
