• Model NO.：GD-12579
• Loading Method：Dynamic Load
• Display：Digital
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Reference Standard：ASTM D892
• Foam Test：The Tendency of Oils to Foam Is a Serious Problem
• Foam Tester：Test Foaming Tendency of a Lubricant
• Foaming Tendency：Foaming Characteristics of Lubricating Oils
• Sequence I：Measures Foaming Tendency and Stability at 24c
• Sequence II：Uses 93.5c (200f)
• Purpose：Assessing Foaming Characteristics of Lubricants
• Timer：5min and 10min, Accurate to Second
• Warranty：12 Months
• Transport Package：Venner Case or as Required
• Specification：refer to ASTM D892
• Trademark：GOLD
• Origin：Chongqing of China
• HS Code：9031809090
• Production Capacity：200 PCS , Month

Basic Info.

Model NO. GD-12579 Loading Method Dynamic Load Display Digital Weight 0-100Kg Power Source AC220V Oil Cylinder Position Under Reference Standard ASTM D892 Foam Test The Tendency of Oils to Foam Is a Serious Problem Foam Tester Test Foaming Tendency of a Lubricant Foaming Tendency Foaming Characteristics of Lubricating Oils Sequence I Measures Foaming Tendency and Stability at 24c Sequence II Uses 93.5c (200f) Purpose Assessing Foaming Characteristics of Lubricants Timer 5min and 10min, Accurate to Second Warranty 12 Months Transport Package Venner Case or as Required Specification refer to ASTM D892 Trademark GOLD Origin Chongqing of China HS Code 9031809090 Production Capacity 200 PCS / Month

Product Description

GD-12579 ASTM D892 Foam Tester for measuring lubricant's foaming tendency and stability


Introduction:

During use lubricating oils can form an undesired foam, which can greatly affect their performance. Foaming can present serious problems for system operation. The ASTM D892 foam test method is used to determine the foaming tendency and stability of foam in lubricating oils. The Foam Tester is applied to measure the foaming characteristics of lubricating oils at 24°C and 93.5°C.


Features:

1. The ASTM D892 Foam Tester  adopts all-in-one structure. It includes three parts: low temperature test part and it's control, high temperature test part and it's control, a portable cooler for low temperature test part.
2. The temperature controller has parameters modifying function. If there is bias between showing temperature and testing temperature,it ca be corrected by this function.
3. The ASTM D892 Foam Tester equips an automatic timing alarm.


Parameters:

1. Power supply:  AC(220±10%)V, 50Hz
2.Total power consumption: ≤2700W
3. Air flow rate:  (94±5)ml/min,adjustable
4. Temperature control range for high temperature bath: (Room temp.~99.9)C
5. Temperature control range for low temperature bath:  (5~99.9)C
6. Temperature control accuracy: ±0.5C
7. Timer: 5min and 10min,accurate to second
8. Ambient temperature: (15~35)C; Relative humidity: ≤85%
9. Dimension: Main unit:690mm*460mm*700mm; Cooler:400mm*450mm*300mm
10.Net weight: 48kg.

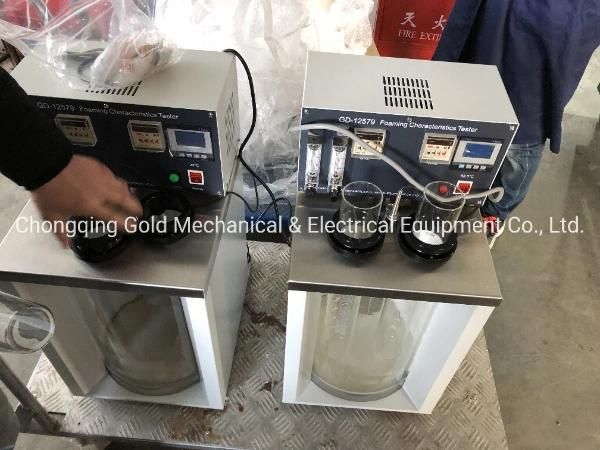

ASTM D892 Foam Tester for measuring lubricant's foaming tendency and stability:
