High Quality Carbon Residue Tester by Electric Furnace Method for Lubricating Oils
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.- Product Name：Gd-30011 High Quality Carbon Residue Tester (Elect
- Application：Carbon Residue of Lubricating Oil, etc
- Heating Method：Electric Furnace Method
- Heating Power：1150W(230W*5)in Total
- Controller：Digital Temperature Controller
- Test Furnace：One Furnace with Four Holes
Base Info
- Model NO.：GD-30011
- Temp. Control Range：(0~520)Celsius
- Auto./Manual：Manual
- Measurement Range：0~100%
- Sample Quantity：1
- Transport Package：Wooden Case
- Trademark：gold
- Origin：China
- Production Capacity：100 Piece,Pieces Per Month
Description
Basic Info.
Model NO. GD-30011 Temp. Control Range (0~520)Celsius Auto./Manual Manual Measurement Range 0~100% Sample Quantity 1 Transport Package Wooden Case Trademark gold Origin China Production Capacity 100 Piece/Pieces Per MonthProduct Description

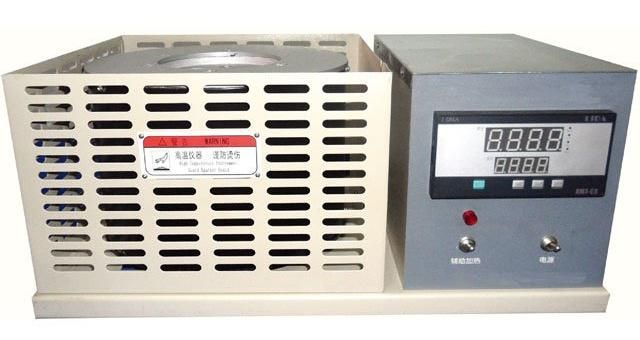

GD-30011 High Quality Carbon Residue Tester (Electric Furnace Method)
Introduction:
Carbon Residue Tester is suitable to determine the carbon residue of lubricating oils, heavy liquid
fuels and other petroleum products.
Features:
1. Carbon Residue Tester adopts desktop configuration. The heating furnace and controller are
assembled to all-in-one machine. Small dimension and easy to use.
2.The max temperature of heating furnace can reach 520ºC. It adopts digital temperature controller. The
temperature control accuracy can reach ±5ºC.
3. It can do four sample determinations concurrently. The test efficiency is high.
Specifications:
| Product name | GD-30011 High Quality Carbon Residue Tester (Electric Furnace Method) |
| Power supply | AC (220±10%) V, 50Hz |
| Heating mode | Electric furnace |
| Heating power | 1150W (230W*5) in total |
| Temp. Control range | (0~520)ºC |
| Temp. Control accuracy | ±5ºC |
| Test furnace | One furnace with four holes |
| Ambient temperature | Room temperature ~ 35ºC |
| Relative humidity | ≤85% |
| Maximum power consumption | 1300W |
| Dimension | 350mm*360mm*365mm |
