• Model NO.：TOB-AT526
• Origin：China
• Production Capacity：1000000set,Month

Model

TOB-AT526

Test parameters

AC resistance, DC voltage

Basic accuracy

Resistance: 0.2%

Voltage: 0.01%

Measuring range

Resistance: 0.001mΩ ~33.000kΩ       voltage: 0.00001V~120.000VDC

Signal source

AC 1kHz, test current: <150ma

Range

Seven range auto and manual

Test speed

145 times/second, 30 times/second, 10 times /second,

1 times/second

Display results

Direct reading, ΔABS,Δ%,θ,to sorting results

Correction

Full range short circuit reset

Comparator

Optional 18 sorting RHI/RNG/RLO output VHI/VNG/VLO output The absolute value of tolerance ±TOL Sorting  percentage tolerance TOL sorting  Sequential sorting

Trigger

Internal trigger, manual trigger, external trigger and remote trigger

Interface

RS-232C interface handler interface (PLC interface)

power requirement

Voltage: 195vac ~ 245vac frequency: 50Hz power: maximum 15va

Size and weight

External dimensions (mm):264 (W) x107 (high) x350 (deep) weight: 4kg

Appendix

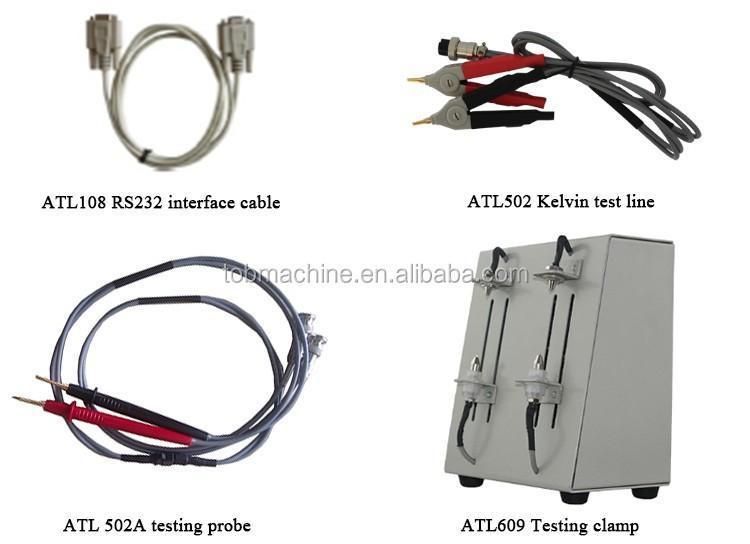

ATL502 Kelvin test line, ATL108/ RS232 interface cable

Others

Test line damage detection , color TFT-LCD display, keyboard lock and data hold function, internal flash memory and disk data recording

Packing
