• Model NO.：GD-6307
• Commendable Sample Weight：(1000~2000)G
• After-Burner Maximum Temperature：Can Reach to 900celsius
• Test Time：1200g Sample Only Needs 30 Mins
• The Dimension of The Combustion Chamber：350mm*440mm*330mm
• Size：700mm*800mm*1550mm
• Delivery Time：10 Working Days(If Urgent, We Can Push)
• Transport Package：Wooden Case for Gd-6307
• Trademark：GOLD
• Origin：Chongqing, China
• Production Capacity：100 Sets, Month

Basic Info.

Model NO. GD-6307 Commendable Sample Weight (1000~2000)G After-Burner Maximum Temperature Can Reach to 900celsius Test Time 1200g Sample Only Needs 30 Mins The Dimension of The Combustion Chamber 350mm*440mm*330mm Size 700mm*800mm*1550mm Delivery Time 10 Working Days(If Urgent, We Can Push) Transport Package Wooden Case for Gd-6307 Trademark GOLD Origin Chongqing, China Production Capacity 100 Sets/ Month

Product Description

Automatic Asphalt Content of Asphalt Mixture by Ignition Method

ASTM D6307 asphalt content test apparatus by ignition method covers the determination of asphalt content of asphalt mixture and asphalt pavement samples by removing the asphalt cement in an ignition furnace.


I.Summary

  The Asphalt content furnace is designed and made ASTM D6307. It can determine asphalt content of the bituminous mixtures rapidly, correctly, safely and reliably. It is also used to analysis the asphalt mixtures after the combustion .


II.Main technical features

1. The body of the combustion furnace adopts aerospace insulation materials .It has good warm-keeping effect and short preheating time .The heating rate is rapid and it can arrive to standard temperature 538ºC in the 30 minutes .

2. It has good heat insulation characteristic. when the inner of the furnace body arrives to the standard temperature , the temperature of outer furnace body will be lower than 45ºC ,and it has high operation safety ,for avoid the influence of the high temperature on the electronic scales measurement accuracy .

3. It adopts the second combustion function and high temperature filtration technology .The test exhaust emission reach the standard .

4. The function of the software is powerful .It can display temperature ,sample weight ,weight loss ,correction coefficient ,asphalt content and asphalt aggregate ratio .

5. Safety protection ,no use organic solvent that can damage the human's healthy and environment ,it is a green product .

6. 7inch industrial stage touch-screen .and the screen display large information ,operation is simple and convenient ,the work is reliable .Put the sample into the furnace and close the furnace door ,press the open key ,the instrument can be finished the determination automatically.

7.Real-time display test procedure data ,and it has self diagnostic function ,fault code indication function ,it can inquire about the history data and deal with it .

8. After the test finished ,the instrument has voice indication function and it can save and print out the test results.

9. it can connect with computer and common printer .



III.Main technical specifications

1	Max. sample weight	4000g , recommended sample weight :(1000~2000) g
2	Combustion chamber maximum temperature	800ºC ,accuracy :+5 ºC ,standard working temperature :538 ºC
3	Maximum temperature after burning	It can reach to 900 ºC
4	Combustion and filtration	It adopts after-burner the second combustion and high temperature filtration technology. The test exhaust emission can reach the standard
5	Balance accuracy	0.1g ,range of balance :10kg(American imported balance )
6	Test precision	0.10%
7	Test time	1200g sample only needs 30 minutes
8	The dimension of the combustion chamber	350mm*440mm*330mm
9	Overall dimension	700mm*800mm*1550mm
10	Power supply	AC380V+10V,50Hz, current meter ≤ 40A(three-phase four-wire system, with zero line)

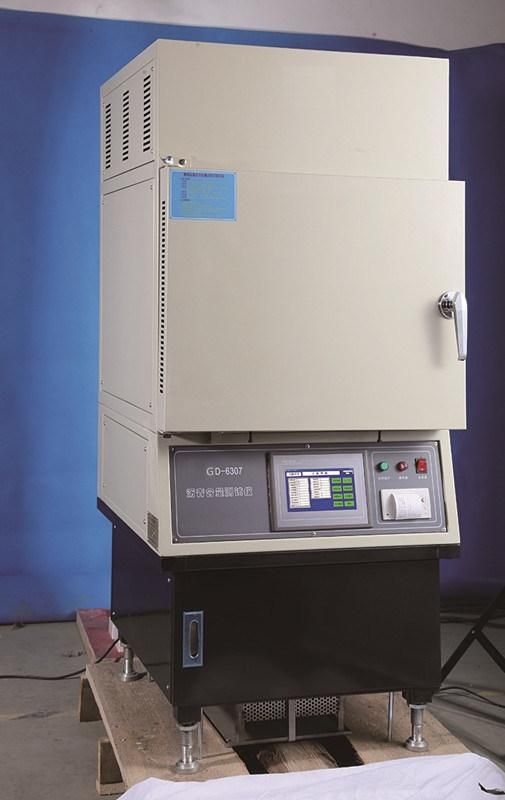

IV. Detail Images:







V. About us:

Chongqing Gold Mechanical & Electrical Equipment Co.,Ltd is a high-tech enterprise for researching, designing, developing and producing scientific and measuring instruments. With its continuous drawing of lessonas, unremitting innovation and borrowing of advanced technology from both at home and abroad, our company is now becoming a professional manufacture of oil tester,laboratory instrument,road building instrument.
