• Model NO.：CXJJ-5M
• Accuracy Grade：1
• Load Way：Mechanical Load
• Loading Method：Static Load
• Display：Dial Showing
• Control：Manual Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Without
• Function：Plastic Material Testing
• Control Way：Mechanical Dial
• Impact Energy：Charpy Test: 1j,2j,4j,5j
• Speed：2.9m,S
• Angle of Pendulum：150 Degree
• Transport Package：Ocean Shipping
• Specification：600*300*1200
• Trademark：Chenji or OEM
• Origin：China Jinan or Others

Basic Info.

Model NO. CXJJ-5M Accuracy Grade 1 Load Way Mechanical Load Loading Method Static Load Display Dial Showing Control Manual Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Without Function Plastic Material Testing Control Way Mechanical Dial Impact Energy Charpy Test: 1j,2j,4j,5j Speed 2.9m/S Angle of Pendulum 150 Degree Transport Package Ocean Shipping Specification 600*300*1200 Trademark Chenji or OEM Origin China Jinan or Others

Product Description

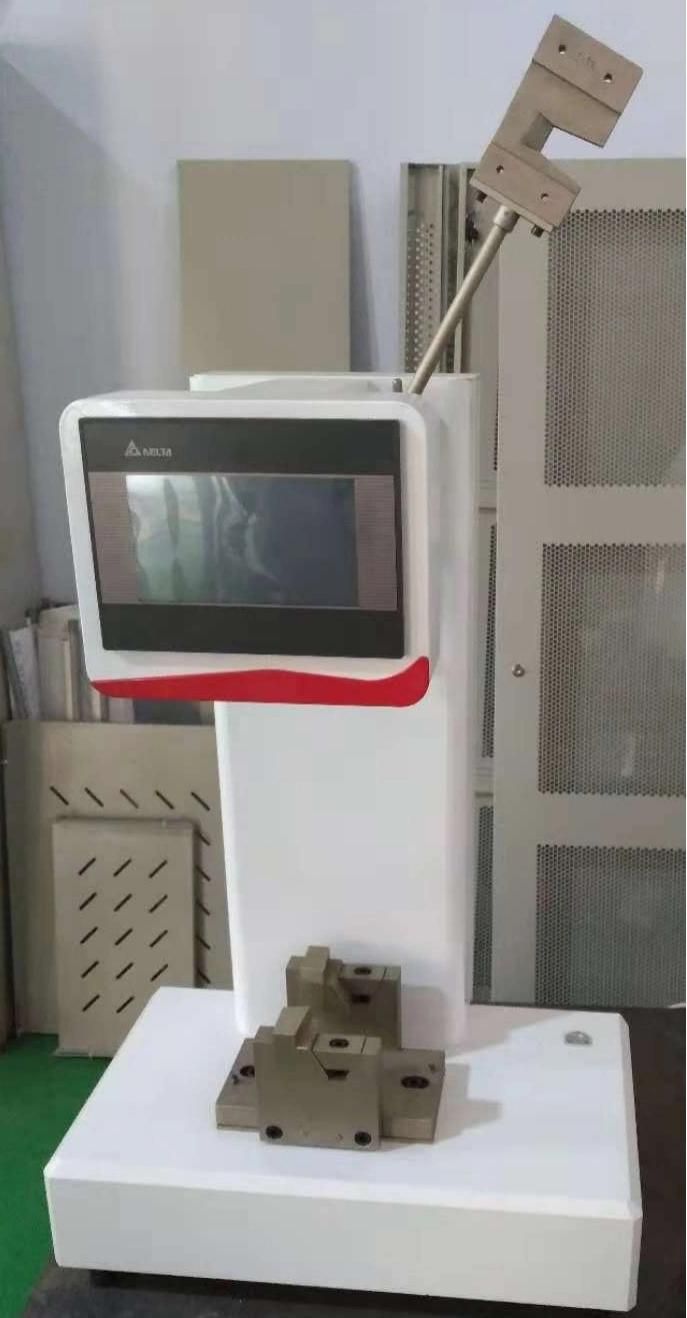

CXJJ-5M Plastic Specimen Charpy Impact Testing Machine with Touch Panel Controlling

Detailed Product Description1. Touch screen display
2 . Impact speed: Charpy Test : 2.9m/s
3. Easy to operate
4. High quality and precision
5. Good after service
Characteristics
Digital type adopts the radial grating goniometry technology. With the characteristics of the precision high, stability good and measuring range big. Touch Screen setting parameters and shows the test result. The impact power, impact intension, angle in advanced, rising angle, calculate the sample's average value, energy lost self-correcting. The machine is equipped with USB output, an be directly exported data through the U disk, with the U disk and PC software provided by our company, the data can be imported into PC to editing and printing the experimental report
1. Functions
The instrument is mainly used for the determination of impact toughness of the nonmetal materials including rigid plastic, reinforced nylon, glass steel, ceramics, cast stone, electric insulating materials and so on. It is the ideal testing devices for the departments including the chemical industry, research institutes, universities, quality inspection and so on.2. standards-compliant
Accord with the ISO179,GB/T1043,ASTM E23 DIN51222 ASTM D6110 standards' demands.
 3. Technological indicators

item	parameter
Model	CXJJ-5M
Controlled manner	Touch screen
Impact energy	Charpy test:  1J,2J,4J,5J (choose one)
Speed of impact	Charpy test:2.9m/s
Pre-elevation angle of pendulum	150 degree
