Automatic Karl Fischer Moisture Analyzer by Coulometric Karl Fischer Titration Method
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.- Display：Digital
- Weight：0-100Kg
- Power Source：AC220V
- Product Name：Automatic Karl Fischer Moisture Analyzer
- Standard：ASTM D1744, ASTM D6304
- Power Supply：AC(220±10%)V, 50Hz
Base Info
- Model NO.：GD-3200
- Test Method：Coulometric Karl Fisher Titration Method
- Measurement Range：3 ~ 999.9 Mcg
- Resolution：0.1 Mcg
- Single/Double Unit：Single
- Sample Quantity：1
- Auto-Calculate , Print and USB Port：Yes
- Transport Package：Wooden Case for Karl Fischer Water Content Appara
- Trademark：Gold
- Origin：China
- Production Capacity：100 Piece,Pieces Per Month
Description
Product name
Electrolytic current
400mA maximum
Measurement range
3 - 999.9 mcg
Instrument resolution ratio
0.1 mcg
Accuracy
3mcg water ±20% 10mcg water±10% 100mcg water±1% more than 100mcg ±0.5% (sample introduction error is not included)
Display
7 inch high definition true color touch screen (1024*600)
Printing
wide line thermal printing
Power supply
AC220V±10% 50Hz±5%
Power
100W
Environment temperature
0 - 50ºC
Environment humidity
≤85%
Volume
390*270*220
Weight
6kg
Constructional feature:

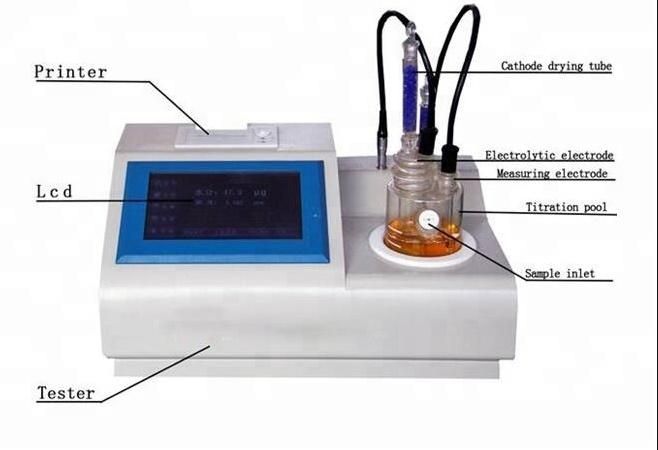

1.Front view:(Figure 1)
