• Model NO.：HTZK-IV
• Production Capacity：500 Sets Per Month

Basic Info.

Model NO. HTZK-IV Production Capacity 500 Sets Per Month

Product Description

Brief introduction

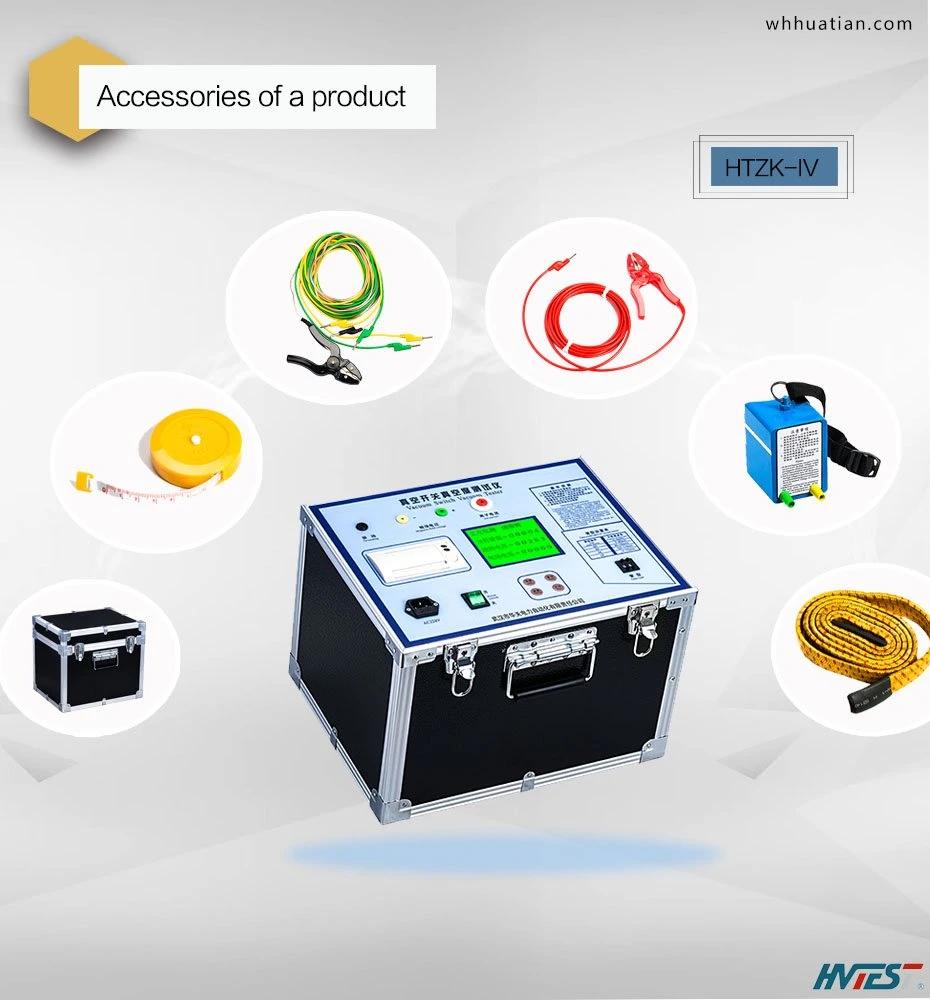

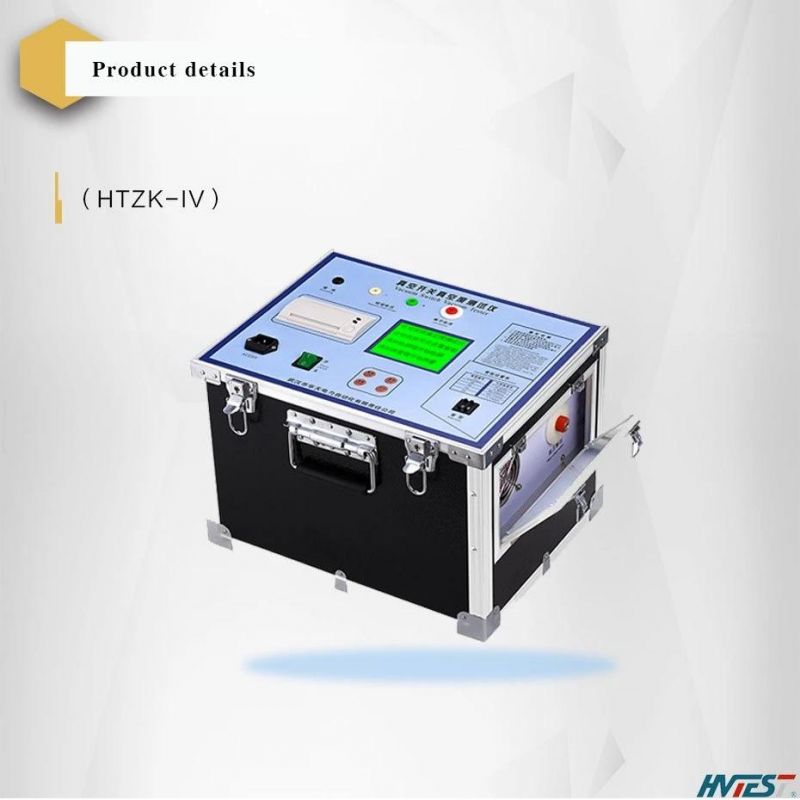

HTZK-IV Vacuum Interrupter Test Set, without removing, direct quantitative measuring vacuum degree of vacuum switch interrupter. With the quantitative measurement means can not only measure the degree of vacuum of vacuum switch whether is within the normal range, more importantly, for some vacuum switches which leak faster, compared with the measuring results of past years, its life can generally be inferred, prevent accidents. This product is compact, lightweight and compact models, short test time, reliable measurement results, good stability, high precision, fully functional, is the ideal instrument for quantitative measuring vacuum switches.

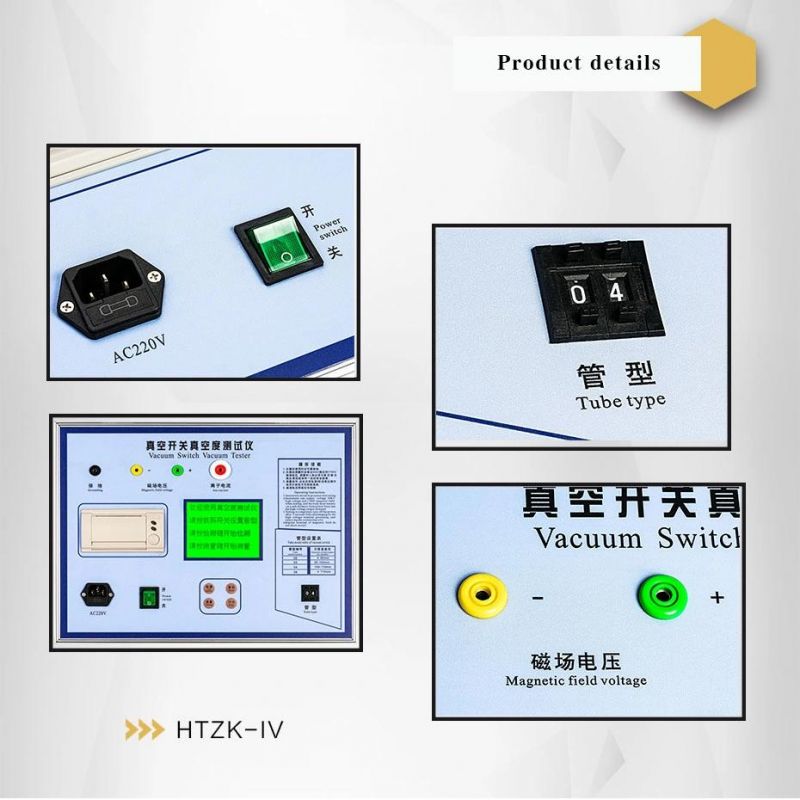

Products features1. Can make quantitative measurement for vacuum degree of all models vacuum switch arc-chutes.2. Need not disassemble the vacuum switch during the field test. 3. High precision.4. With LCD, easy to operate. 5. Can save, print and review the test results.  6. The device with RS232 communication interface, connect with the PC can download the vacuum degree-ion current curve, can estimate the life.7. Light in weight, easy to carry.
 Product parameters

Power supply	AC220V+15%,50Hz
Measurement range	10-4~10-1 Pa
Electric field voltage	20KV
Magnetic field voltage	1600V
Accuracy	5%
Temperature	-10ºC~40ºC
Dimension	460×335×330mm3
Weight	12kg

Common problem
1. Is your company a sales company or a manufacturer?
Wuhan Huatian Electric Power Automation CO., LTD.is an industrial and trade enterprise, with its own  factory, self-produced and self-sold. We were founded in 2004 and have fifteen years of production experience. Our company has reliable production lines, test rooms and R&D centers.

2. Whether the goods are in stock, whether they can be customized, and how long the delivery time is.
After the goods have been ordered, we can be made to order according to the special requirements of customers by using the latest technology. The delivery time is usually within 10 working days if there are no accidents.

3. Is the quality guaranteed?
In order to ensure quality, we use imported components in large quantities. After three times of quality inspection, the goods can be sent out, and the export is uniformly packed in non-fumigation wooden boxes.

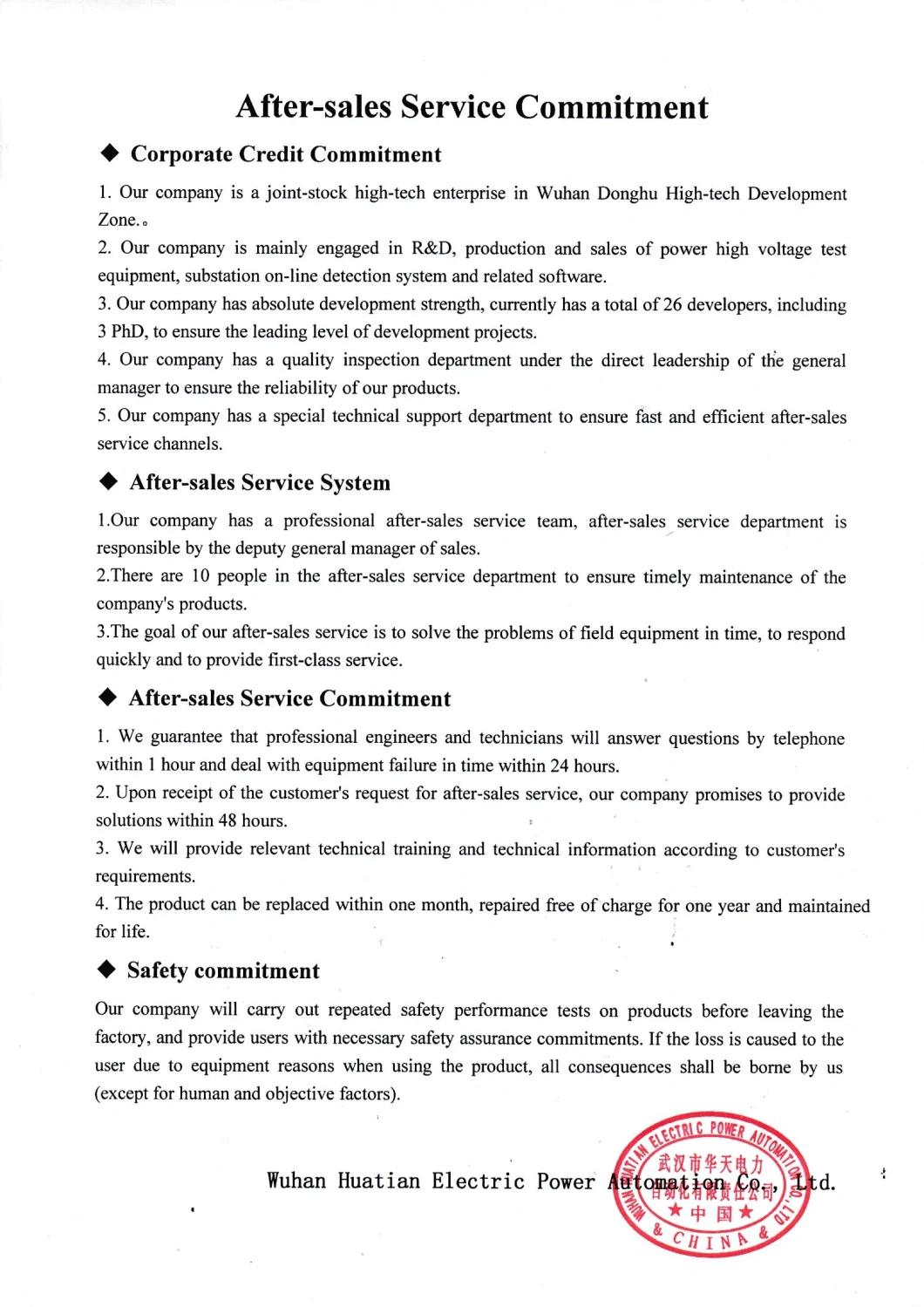

4. What are the after-sales terms?
We offer free consulting service, one year warranty, and adopt various methods such as email communication, video calls, technology door-to-door, aiming to solve any after-sales problems in a timely manner.

5. What are the cooperative countries or regions?
Products have been successfully exported to the United States, Brazil, Australia, Russia, the Netherlands, Indonesia, Bangladesh, Iran, India, Saudi Arabia, Mongolia, Japan and other countries and regions. In the United States, India, Vietnam and other regions have cooperative distributors, can provide thoughtful services.
