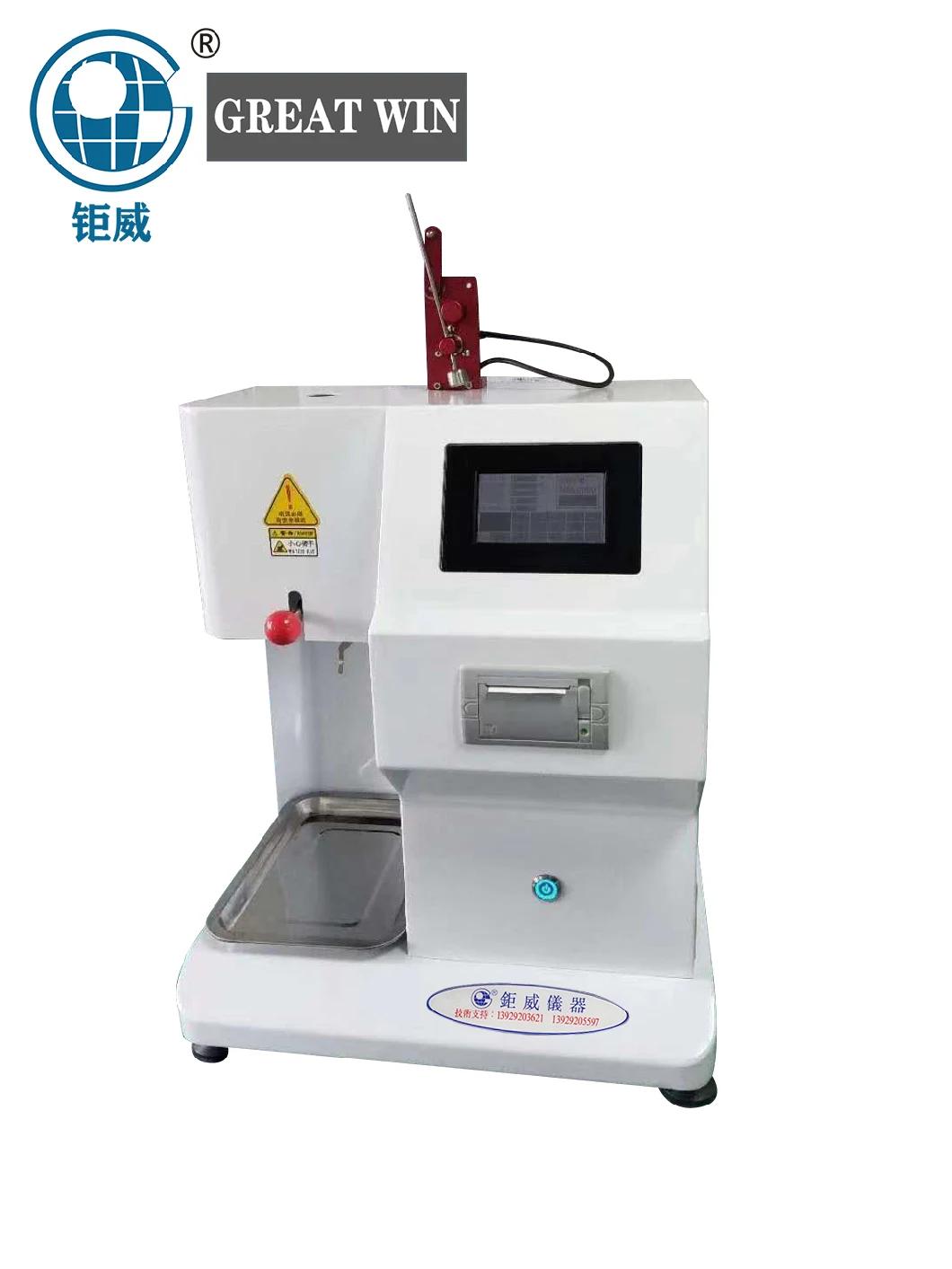

• Model NO.：GW-108
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC220V
• Oil Cylinder Position：Melt-Blown Volumetric Melt
• Certificate：Ce ISO SGS
• Display Mode：Touch Screen Operation
• Power：AC220V, 50Hz, 450W
• Transport Package：Wooden Case
• Specification：50kg
• Trademark：Great Win
• Origin：China
• HS Code：9024800000
• Production Capacity：500 Pieces,Year

Temperature range40ºC-450ºCTemperature drift4 hours≤0.5 ºCTemperature fluctuation±0.2ºCTemperature display resolution0.1ºCvoltageAC220V±10%Test Range0.1-150g/10minOutlet length8.000±0.025mmWeight accuracy8.000±0.025mmPiston rod length6.35±0.13mmDisplacement measurement accuracy0.01mm



Features:

1. Chinese and English color LCD display

2. Automatic manual cutting

3. Double temperature control system, the temperature control precision is more precise, and the heating efficiency is higher

4. Double imported sensors, the upper and lower temperature gradients are more accurate, and can be used independently to increase the service life

5. The barrel is made of imported Hastelloy nitriding, the die is made of carbon tungsten steel, the material is solid

6. The heat preservation barrel is made of all sus304 stainless steel, which will not rust at high temperature for a long time

7. Automatically calculate the result and print it out
