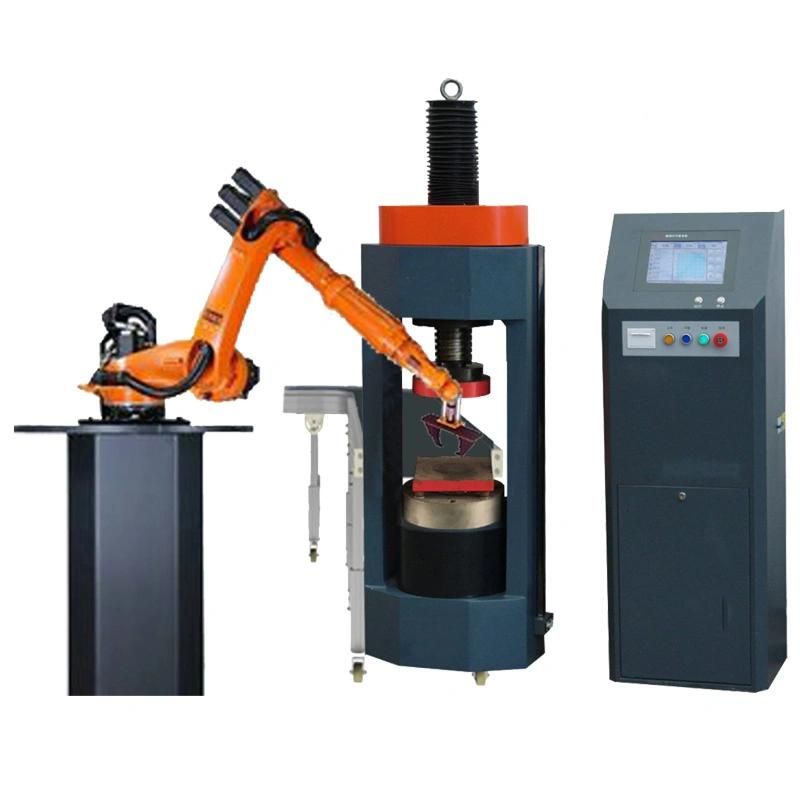

Stye-3000m Full Automatic Compression Testing Machine (with Conveyor belt)

Shanghai Civil & Road Instrument Co., Ltd.
  • After-sales Service：24 Hours Online Support
  • Warranty：1 Year
  • Max Diameter of Workpiece：<500mm
  • Mass Scope of Workpiece：900kg
  • Type：Compression Testing Machine
  • Maxcapacity：2000kn

Base Info

  • Model NO.：STYE-3000M
  • Accuracy Grade：1
  • Load Way：Electronic Load
  • Loading Method：Dynamic Load
  • Display：Digital
  • Control：Manual Control
  • Weight：850
  • Power Source：AC380V
  • Oil Cylinder Position：Under
  • Product Name：Automatic Compression Testing Machine
  • Model：Stye-3000m
  • Max. Testing Power：3000kn
  • Measuring Range：0-3000kn
  • Max. Distance Between The up and Down Be：380mm
  • Max. Piston Stroke：300mm
  • Diameter of The Piston：Dia 310mm
  • Rated Pressure of The Hydraulic Pump：40MPa
  • Transport Package：Wooden Case
  • Specification：950x400x1160mm
  • Trademark：SHTG
  • Origin：China
  • HS Code：9031809090
  • Production Capacity：100PCS,Month

Description

Max. Testing power3000KNMeasuring range0-3000kNRelative indication error±1%Max. distance between the up and down bearing
plates380mmMax. piston stroke300mmDiameter of the pistonΦ310mmRated pressure of the hydraulic pump 40MPaPowerAC380 or AC220V±10%Max. piston lift speed50mm/minPiston free back speed20mm/minNoise ≤80DbStye-3000m Full Automatic Compression Testing Machine (with Conveyor belt)
