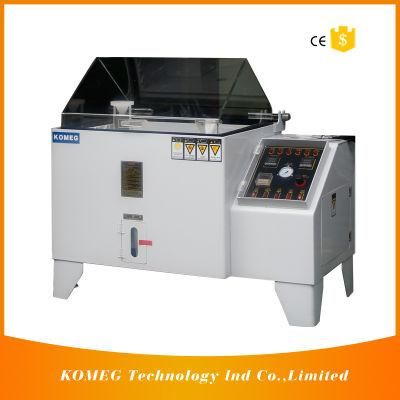

CE Certificatized Salt Spray Corrosion Test Chamber Good Quality and Easy Maintenance

Guangdong Komeg Industrial Co., Ltd.
  • Power Supply：380V ,220V
  • Certification：CE, ISO
  • Warranty：1 Year
  • Interior Dimensions (D*W*H)：900*500*600mm
  • Exterior Dimensions(D*W*H)：1380*1150*800mm
  • Heater Power：7kw+0.75kw

Base Info

  • Model NO.：KM-F-90C
  • Max. Temp：35oc or 50oc
  • Volume：270
  • Air Compressor：1,2HP
  • Salt Water Temperature：35 ºC ~ 55 ºC
  • Settlement：1-2ml , 80cm2 , H
  • Inner Material：5mm A Grade PVC Corrosion-Resistant Plate
  • Weight：Approx. 135kg
  • Transport Package：Strong Plywood Case, Meet International Standards
  • Specification：Standard and Customized
  • Trademark：KOMEG
  • Origin：Dongguan, China
  • HS Code：90321000
  • Production Capacity：1000 Sets Per Yesr

Description

Specifications for Salt Spray Test Chamber ModelKM-F-60A/CKM-F-90 A/CKM-F -120 A/CKM-F-160 A/CKM-F -200 A/CInner Box Size(L*W*H)mm600*450*400900*600*5001200*800*5001600*1000*5002000*1000*600Outside Box Size(L*W*H)mm1100*600*12001410*900*12001850*1050*12002350*1250*13002650*1250*1400Equipment MaterialBoth inside & outside shell adopt imported P.V.C rigid plastic board, and tank cover uses imported transparent P.V.C rigid plastic boardTemperature Range35ºC-55ºCTemperature Fluctuations±0.5ºCTemperature Uniformity±2ºCTemperature Precision±1ºCTest Chamber TemperatureSpray Method(NSS AASS)35±1ºC;Spray Method(CASS )50±1ºCPressure Barrel TemperatureSpray Method(NSS AASS)47±1ºC;Spray Method(CASS )63±1ºCBrine Temperature35ºC±1ºCSpray Quantity1.0-2.0ml/80cm²/hrPHNSS(6.5-7.2);AASS CASS(3.1-3.3)Lab Volume108L270L480L800L1200LBrine Tank Capacity15L20L30L40L60LPower1 phase,AC220V,50Hz,2.5KW3 phase,AC380V,50Hz, 5.5KWMultiple Safety Protection DevicesCurrent discharge protection, over pressure protection, over temperature protection , over load fuse protectionAccessoriesTesting Salt/Measuring tank/Equipment each 1 set

Note:
1. We reserve the right to change specifications without prior notice

2. Customized sizes and configurations available

CE Certificatized Salt Spray Corrosion Test Chamber Good Quality and Easy MaintenanceCE Certificatized Salt Spray Corrosion Test Chamber Good Quality and Easy Maintenance
FAQ

1. Q: Have your machine met relevant standards, and with relevant TEST CERTIFICATE?A: Yes, our machines are manufactured according to International Standards. If TEST CERTIFICATE required, it can be offered.

2. Q: How-to video provided?A: Yes, if required, our engineers will record a specialized how-to video for you.

3. Q: Is the machine-made in your own plant?A: Yes, welcome to visit our plant(factory), also we support OEM and ODM.

4. Q: How you do the maintenance oversea?A: In the way, you are convenient, by Telephone or E-mail or Video meeting, etc.CE Certificatized Salt Spray Corrosion Test Chamber Good Quality and Easy Maintenance
