• Model NO.：GD-2806H
• HS Code：9031809090
• Production Capacity：100sets,Month

Basic Info.

Model NO. GD-2806H HS Code 9031809090 Production Capacity 100sets/Month

Product Description

Automatic Ring-and-Ball Softening Point Tester for softening point test of bitumen


Preface of GD-2806H Automatic Ring-and-Ball Softening Point Tester:

The Automatic Ring-and-Ball Softening Point Tester is designed and made as per GB/T4507 Standard Test Method for Softening Point of Bitumen of national standard of People's Republic of China , T0606 -2011 Softening Point Test (Ring-and-Ball Apparatus) in the industrial standard of People's Republic of China JTG E20-2011 Specification and Test Methods of Bitumen and Bituminous Mixture for Highway Engineering and ASTM D36 Standard Test Method for Softening of Bitumen (Ring-and-Ball Apparatus).
The ASTM D36 Ring-and-Ball Softening Point Tester is used  to determine softening point of petroleum asphalt, coal pitch, liquid petroleum asphalt, and various of asphalts.
The Automatic Ring and Ball Softening Point Tester can be widely used for asphalt manufacturing companies, highway and bridge construction companies, relative colleges and universities, and scientific research institutes.


Features:
The Automatic Ring-and-Ball Softening Point Testeradopts advanced technologies such as computer intelligent control, laser automatic detection, LCD touch screen and micro printer.It has linear temperature heating, uniform bath stirring and accurate test results.
The Automatic Ring-and-Ball Softening Point Tester can do four samples or two samples at a time.
The Automatic Ring-and-Ball Softening Point Tester has functions of automatic completion of sample testing and automatic printing of test results.
The Automatic Ring-and-Ball Softening Point Tester is an automatic and intelligent testing instrument for asphalt softening point with high degree of automation, fast and convenient testing, accurate and reliable testing results.


Specifications:
1. Power supply: AC(220V±10%)V, 50Hz
2. Measurement range:
    (1) Heating medium: distilled water(softening point <=80 ºC) +5 ºC~+80ºC
    (2) Heating medium: glycerin (softening point > 80 ºC) 32 ºC~160 ºC.
3. Temperature resolution: 0.1 ºC
4.Test samples: It can do two samples or four samples.
5. Heating rate: it will be adjusted to 5.0±0.5 ºC/ min automatically after three minutes
6. Heating power: 600 W
7. Computer port: RS-232C communication port
8. Cubage of beaker: 900 ml
9. Ambient temperature: 15ºC~35ºC
10. Relative humidity: ≤85%
11.Maximum power consumption: 700 W
12.Dimension: 400mm×300mm×490mm (L*W*H)

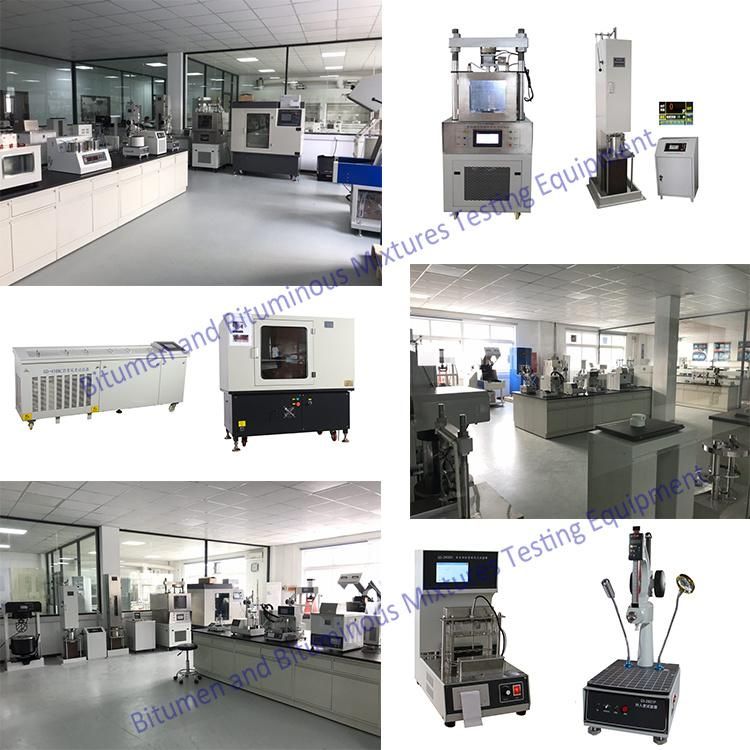

Welcome to visit our Asphalt Testing Laboratory!
