Electromechanical Universal Tensile Test Machine with 20kg/196n Test Force

Dongguan SYS Industrial Co., Ltd.
  • After-sales Service：Yes
  • Warranty：1 Yesr
  • Max Diameter of Workpiece：<500mm
  • Mass Scope of Workpiece：<900kg
  • Type：Strength Testing Machine
  • Maxcapacity：9.8n

Base Info

  • Model NO.：ST020
  • Accuracy Grade：0.5
  • Load Way：Electronic Load
  • Loading Method：Static Load
  • Display：Digital
  • Control：Touch Screen
  • Weight：35kg
  • Power Source：AC220V
  • Oil Cylinder Position：No
  • Transport Package：Plywood
  • Specification：600x600x1200
  • Trademark：SYS
  • Origin：China
  • HS Code：9024800000
  • Production Capacity：100PCS,Month

Description

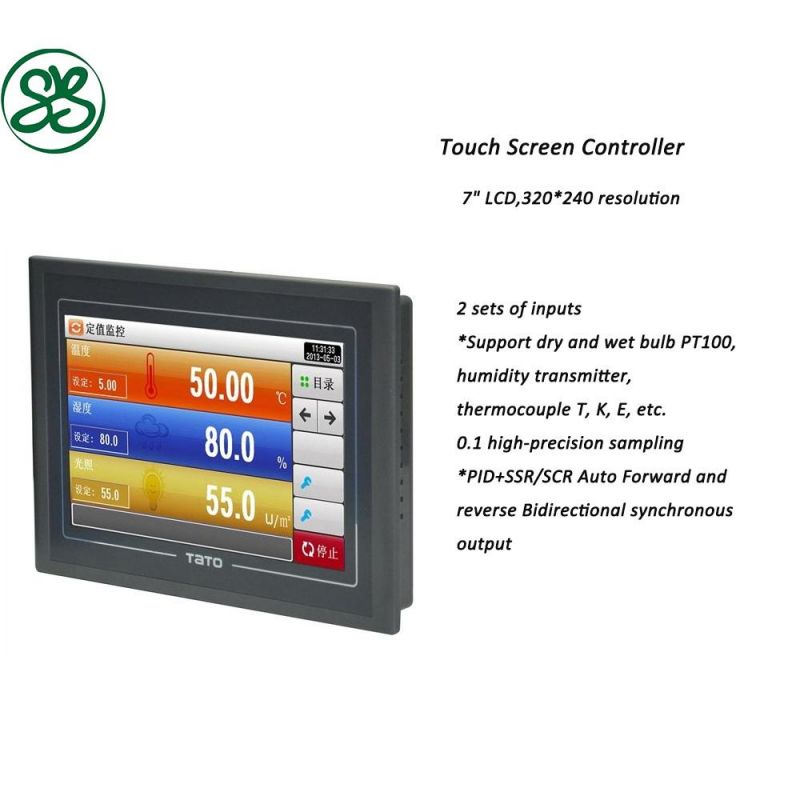

Touch screen control
  1. Force resolution: 1/100000.
  2. Definition force of extensometer: 1/100000, sampling frequency 50 times/sec.
  3. Elongometer accuracy: ±0.1% of the indicated value (20 to 100% FS).
  4. Test speed: 1mm/min~500mm/min.
  5. Speed accuracy: within ±1% of the indicated value.
  6. 0~10V voltage output mode output control frequency conversion motor stepless speed regulation.
  7. With a micro printer, print test results, and with the point that print, curve printing and other functions.
  8. Single test, manual 10-point statistics, and automatically calculate the average value, fracture value (suitable for peeling, tearing test), up to 50 sets of test data can be stored.
  9. Unit arbitrary switching: force: kN/N/kgf/gf/t/lbf, displacement: mm/cm/in.
  10. Automatic homing function.
  11. Overload protection function can be set
Electromechanical Universal Tensile Test Machine with 20kg/196n Test Force

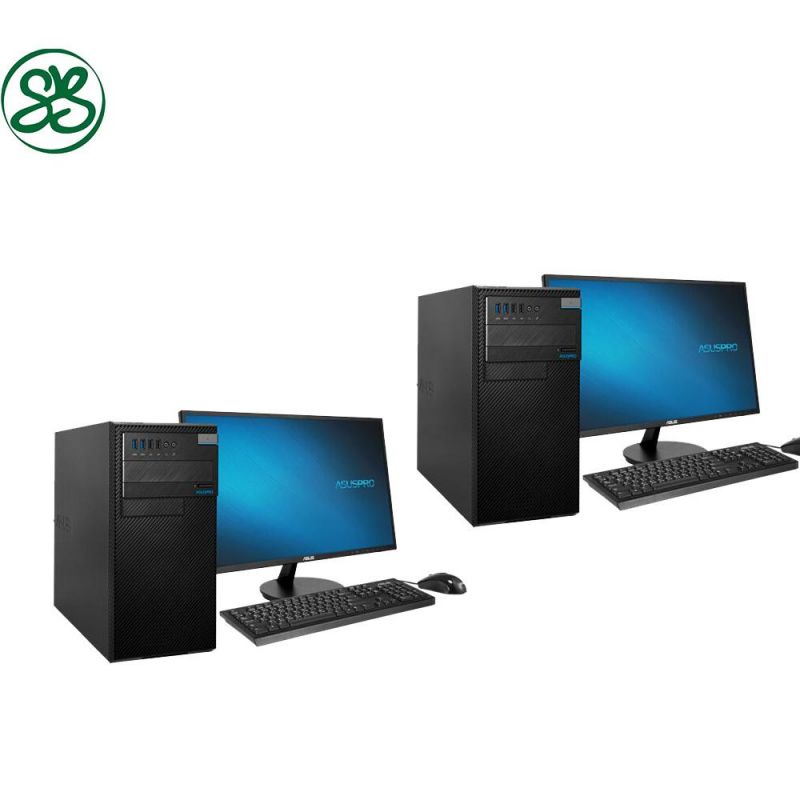

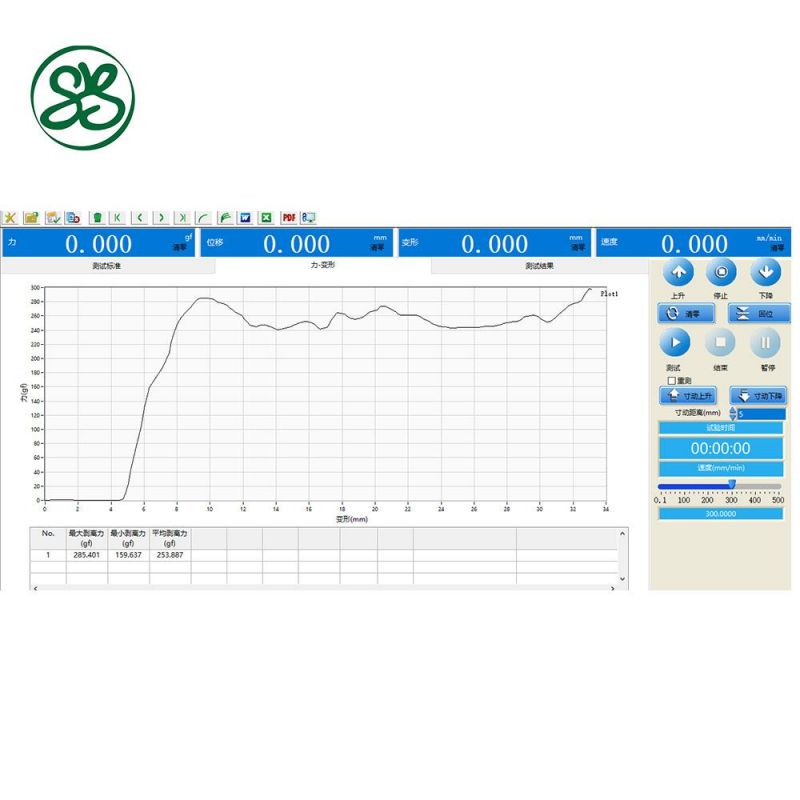

 OptionalTouch screen optional curve functionComputer and software
