• Model NO.：WAW-1000D
• Control：Computer Control
• Weight：1000-2000Kg
• Power Source：AC380V
• Oil Cylinder Position：Under
• Sample Clamp：Hydraulic Grips
• Tension Space：650mm
• Compression Space：500mm
• Sampel Grips：Customized
• Safe：Protection Net
• Color：Blue or White
• Transport Package：Standard Sea Shipping Case
• Specification：740x580x2035mm
• Trademark：Hensgrand or OEM
• Origin：Jinan, Shandong
• HS Code：9031809090
• Production Capacity：500 Sets,Month

Basic Info.

Model NO. WAW-1000D Control Computer Control Weight 1000-2000Kg Power Source AC380V Oil Cylinder Position Under Sample Clamp Hydraulic Grips Tension Space 650mm Compression Space 500mm Sampel Grips Customized Safe Protection Net Color Blue or White Transport Package Standard Sea Shipping Case Specification 740x580x2035mm Trademark Hensgrand or OEM Origin Jinan, Shandong HS Code 9031809090 Production Capacity 500 Sets/Month

Product Description

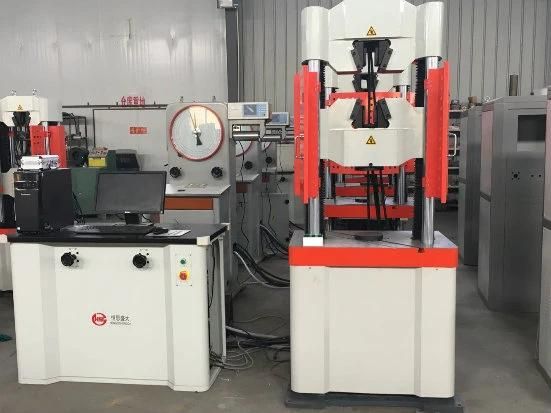

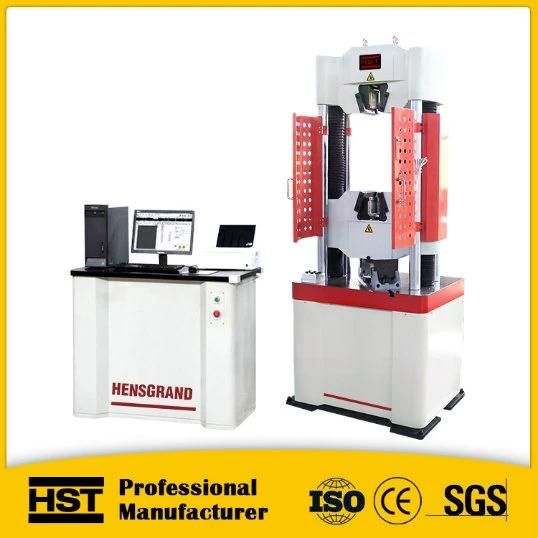

Computer Control 1000KN China Universal Tensile Testing Machine WAW-1000D

1. Application:
WAW-1000H adopts hydraulic loading, computer control, easy and convenient to operate. It is mainly used to execute the tension, compression, bending, flexural etc. test for metal materials. Attached with simple accessories and devices, it can be used to test wood, concrete, cement, rubber, and so on.It is very suitable for making test to different metal or nonmetal materials under high toughness and hardness against extreme big loading force.
2. Standards:
ISO6892, BS4449,ASTM C39,ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards.
3. Host Features
3.1 Adopts that fuel tank is mounted under the host, tensile test space is located above the host, compression, bending, shearing test space is located under the host, means between beam and worktable.
3.2 The structure is designed with solid four column and two screw, the whole machine has strong stability.
3.3 The host is designed all-inclusively to ensure its super strong stiffness so that it can resist micro-deformation when it is loading.
3.4 Middle beam adopts adjustable gap screw-nut mechanism, eliminating the gap and improving the measurement performance.
3.5 Fuel tank adopts gap sealed, improving the measurement accuracy and also extending service lifetime.
4. Overload protection
4.1 When the test force exceeds 2%-5% of the maximum test force of each file, overload protection, it will stop.
4.2 When the piston rises to the upper limit position, travel protection, pump motor will stop.
5. Main specifications:

Model	WAW-1000D
Structure	4 columns and 2 screws
Control way	Constant stress uniform deformation constant displacement three closed loop control and program control dealing
Max.load (kN)	1000kN
Load accuracy	≤±1%
Load range	2%-100%FS
Load resolution	1/300000
Deformation Measurement Range	2%~100%FS
Deformation accuracy	≤±1%
Displacement resolution (mm)	0.01
Displacement error	≤±0.5%
Max.piston stroke(mm)	250
Max piston moving speed	0-90mm/min stepless speed adjusting
Crosshead lifting speed	200mm/min
Max. tension test space	650mm (can customize)
Max.Compression Test Space	500mm (can customize)
Column clearance(mm)	525
Clamping method	Hydraulic clamp
Round specimen clamping range (mm)	Φ13-Φ26,Φ26-Φ40, (Φ6-Φ13 , Φ40-Φ50 Optional )
Flat specimen clamping range (mm)	0-15 (15-30 Optional)
Flat specimen clamping width(mm)	80
Compression plate size (mm)	φ160
Bending roller distance(mm)	450
Width of bending rollers (mm)	120
Power supply	3-phase,AC380V, 50Hz(can be customized)
