Four Ball Wear Testing Machine Mrs-10
Jinan Kason Testing Equipment Co., Ltd.- Type：Friction Testing Machine
- Maxcapacity：<1000KN
- Accuracy Grade：1
- Load Way：Electronic Load
- Loading Method：Static Load
- Display：Digital
Base Info
- Model NO.：MRS-10P
- Control：Computer Control
- Weight：100-500Kg
- Power Source：AC220V
- Oil Cylinder Position：No
- Test Force：40n to 10kn
- Max. Friction Force：1 to 300n
- Friction Speed：200 to 2000r,Min
- Accuracy：10r,Min
- Transport Package：Standard Sea Shipping Case
- Specification：1200mmX810mmX1700mm
- Trademark：Hensgrand or OEM
- Origin：Jinan, Shandong
- HS Code：9031809090
- Production Capacity：50 Sets,Month
Description
Basic Info.
Model NO. MRS-10P Control Computer Control Weight 100-500Kg Power Source AC220V Oil Cylinder Position No Test Force 40n to 10kn Max. Friction Force 1 to 300n Friction Speed 200 to 2000r/Min Accuracy 10r/Min Transport Package Standard Sea Shipping Case Specification 1200mmX810mmX1700mm Trademark Hensgrand or OEM Origin Jinan, Shandong HS Code 9031809090 Production Capacity 50 Sets/MonthProduct Description

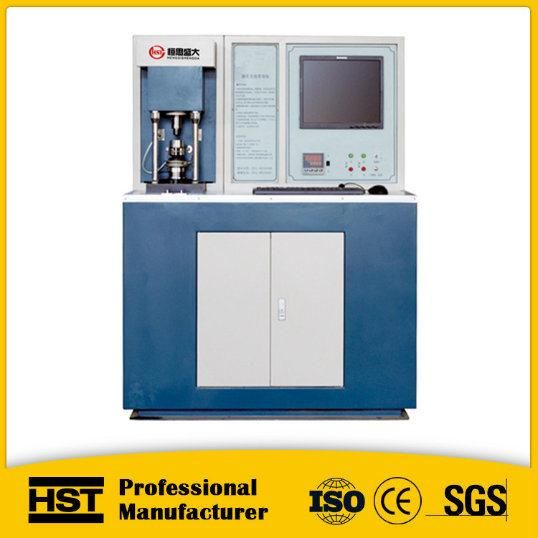

Four Ball Wear Testing Machine Mrs-10
1. Computer Control Four-ball Wear Testing Machine Application
MRS-10 is in the form of sliding friction, the contact pressure at the high point of assessment under the conditions of the carrying capacity of lubricants.It includes the maxinun biting load no card PB, sintering load PD and the value of ZMZ indications.This machine using high-precision measuring device , it can test friction wear scar size or to display, measure and record the friction wear scar zize on the computer.
2. Computer Control Four-ball Wear Testing Machine Standards
GB/T12583-98 extreme pressure lubricant performance measurement method (four-ball machine method)
GB3142-82 lubricant Determination of carrying capacity (four-ball method)
SH/T0189-92 lubricant wear resistance assay (four-ball machine method)
SH/T0202-92 grease extreme pressure performance measurement method (four-ball machine method)
SH/T0204-92 grease wear resistance assay (four-ball machine method)
SH / T 0762-2005 | lubricant friction coefficient measurement method (four-ball machine method)
ASTM D5183-2005 four-ball wear test machine with lubricant friction coefficient measurement test methods
3. Parameters
| Model | MRS-10 |
| Axial Test Force | 40N--10KN |
| Range of Friction | 1 to 300N |
| Control | Manual Loading |
| Test Force Accuracy | ±2% (starting from 20%) |
| Spindle speed range | 200-2000r/min |
| Relative error of spindle speed | ±10r/min |
| The room temperature of friction temperature control | Room temperature to 200°C |
| Test steel ball | diameter 12.7mm |
| Dimension | 1200x810x1700mm |
