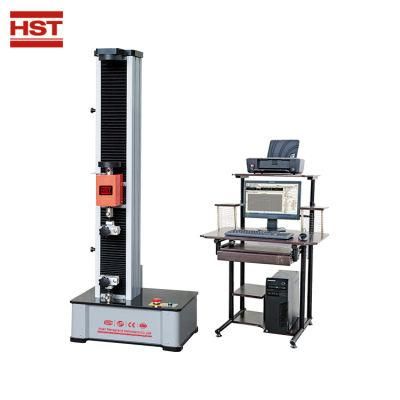

200n Automatic Computer Controlled Universal Tensile Test machine
Jinan Kason Testing Equipment Co., Ltd.- After-sales Service：24 Hours Technical Supply
- Warranty：12 Months
- Max Diameter of Workpiece：<500mm
- Mass Scope of Workpiece：<900kg
- Type：Universal Testing Machine
- Maxcapacity：200n
Base Info
- Model NO.：WDW-02
- Accuracy Grade：1 or 0.5
- Load Way：Electronic Load
- Loading Method：Static Load
- Display：Computer Display
- Control：Computer Control
- Weight：100-500Kg
- Power Source：AC220V
- Oil Cylinder Position：No
- Certificate：CE ISO
- Transport Package：Plywood Exporting Package
- Specification：120kg 0.8CBM
- Trademark：HST
- Origin：Jinan, Shandong, China
- HS Code：9024109000
- Production Capacity：1500 Sets,Month
Description

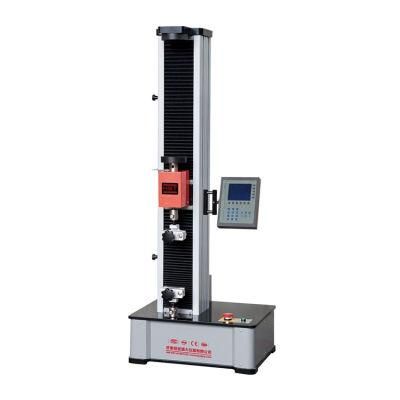

Single column double spacesControl method computer control Load accuracy 1 class Load range 2%~100%F·S/0.4%-100% FS Displacement Resolution 0.01mm Test speed 0.05-500mm/min(can be customized) Tensile space 600mm(can be customized) Compression space 600mm(can be customized) Power supply AC220V±10%,50Hz(can be customized) Grips Wedge type, plate type and other grips as consumer's demand Dimension 425*400*1315mm Weight 90kg
4. Software Features
6.1Auto zero clearing : After starting test, the system auto zero clearing.
6.2Auto calibration:system can automatically realize the value accuracy of the calibration.
6.3 Auto return:finish test, the cross beam will auto return to the starting position.
6.4 Auto gear shifting (when choose classify gear test): According to the load size automatically switch to the appropriate range, to ensure the accuracy of the test data.
6.5Auto speed changing:The cross beam moving speed can auto changing during the test process according to the preset program, also can manual change.
6.6Auto saving: adopting the the database management way, the test data and curve automatically saved after the test.
6.7Auto calculating:when finish test, automatic calculate elastic modulus, yield strength and the non-proportional elongation stress, etc ( Different test method, different analysis date.) , can auto analyze, also be artificial correction analysis results, improve the accuracy of the analysis.
6.8 Display way: Dynamic display of data and curves with the testing process.
6.9 Result comparison: Multiple test curve can use different color superposition, reappear, enlarge , presenting comparison of a set of sample.
6.10 Curve choice:can choose Stress - strain, force - displacement, force - time, force- deformation, displacement - time, and other curves to display and print; Can switch at any time to observe, zoom in and zoom out, horizontal or vertical movement, real-time high speed sampling.
6.11 Test standard: Integrated with about 40 kinds of national standard or test method, can meet the various test need of customers.
6.12 Test report: According to user required format, using EXCEL to compile reports and print bulk data.
6.13 Limit protection: with mechanical and programmable two level limit protection function.
6.14 Overload protection: with two grade overload protection.
Cross beam moving overload: when the load exceeds 0.2-0.5% of the maximum value of the scale, automatic stop.
Test overload: when the load exceeds 2-5% maximum value of the each file, automatic stop
6.15 Other protection:with overload, over current, over voltage, the displacement upper and lower limit and emergency stop protection function.
