Vu-2y Impact Specimen Notch Hydraulic Electric Broaching Machine
Jinan Kason Testing Equipment Co., Ltd.- After-sales Service：1 Year
- Warranty：1 Year
- Max Diameter of Workpiece：<500mm
- Mass Scope of Workpiece：<900kg
- Type：Impact Testing Machine
- Maxcapacity：Sample Size 10*10,7.5,5*55
Base Info
- Model NO.：VU-2Y
- Accuracy Grade：1
- Load Way：Electronic Load
- Loading Method：Static Load
- Display：Digital
- Control：Electric Control
- Weight：100-500Kg
- Power Source：AC380V
- Oil Cylinder Position：Under
- Broacher：V Type & U Type
- Transport Package：Plywood Exporting Package
- Specification：270kg 1.3CMB
- Trademark：HST OR OEM
- Origin：Jinan, Shandong, China
- HS Code：9031809090
- Production Capacity：100 Sets,Month
Description
Basic Info.
Model NO. VU-2Y Accuracy Grade 1 Load Way Electronic Load Loading Method Static Load Display Digital Control Electric Control Weight 100-500Kg Power Source AC380V Oil Cylinder Position Under Broacher V Type & U Type Transport Package Plywood Exporting Package Specification 270kg 1.3CMB Trademark HST OR OEM Origin Jinan, Shandong, China HS Code 9031809090 Production Capacity 100 Sets/MonthProduct Description

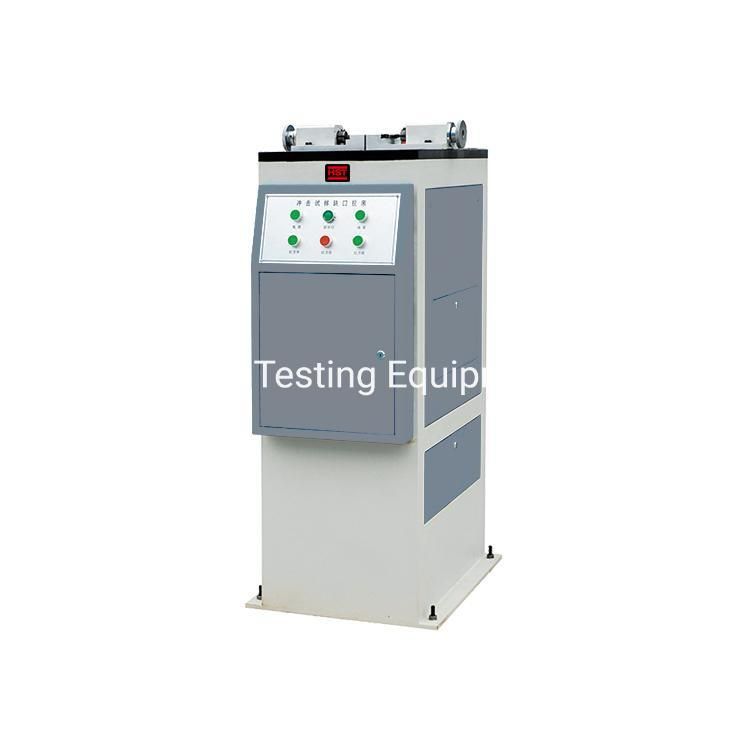

VU-2Y Impact Specimen Notch Hydraulic Electric Broaching Machine
1. Application
The machine is special processing equipment "metal Charpy notched impact test method" in the impact of the sample produced V-and U-requirements and developed according to GB / T229-2007, fully meet GB229-2007, ASTM, E23-02a, indicators specified in the standard EN10045, ISO148, ISO083 and so on.
2. Descriptions::
The machine consists of working parts, hydraulic drive parts, electrical control, lubrication and cooling section, and other auxiliary section. Random configuration 2mm V type and 2mm U type broaches, a notch forming, one time can successfully draw two standard notch, broaches the use of special materials, special technology precision manufacturing, high hardness, wear resistance, long service life.
4. Main Technical Specifications:
| Shape of sample notch | 2 mm V type and 2 mm U type, (U 3 mm, U 5 mm is optional ) |
| Sample size | (10, 7.5, 5 mm) x 10 mm x 55 mm |
| Cutting mode | Hydraulic |
| Journey of broach | V2, U2, U3 350mm; U5 380mm |
| Broaching Speed | 2.5 m/min |
| Broach material | W18 Cr4V |
| Power supply | Three phase 380V 50Hz 400W |
| Max. Dimension | 660x500x1240mm |
| Weight | 200kg |

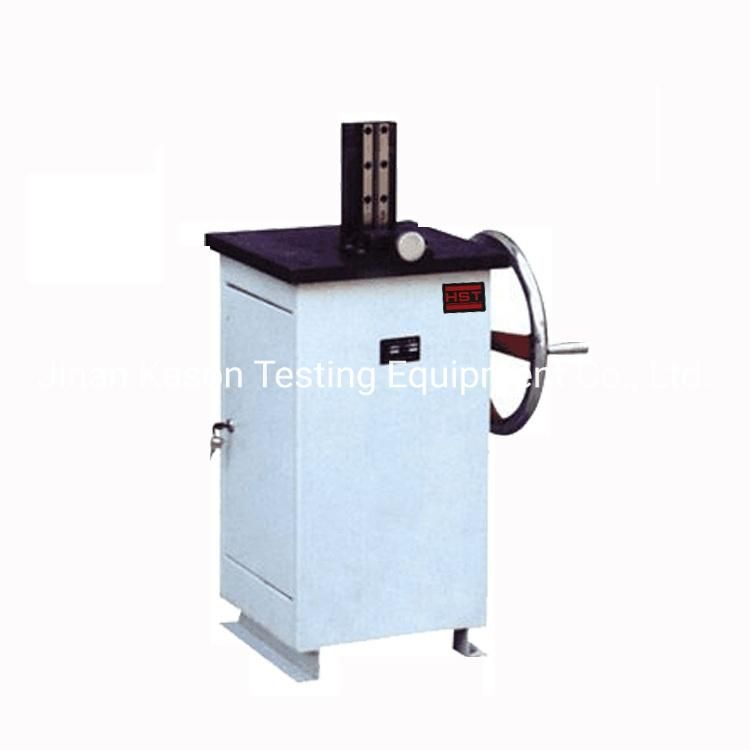

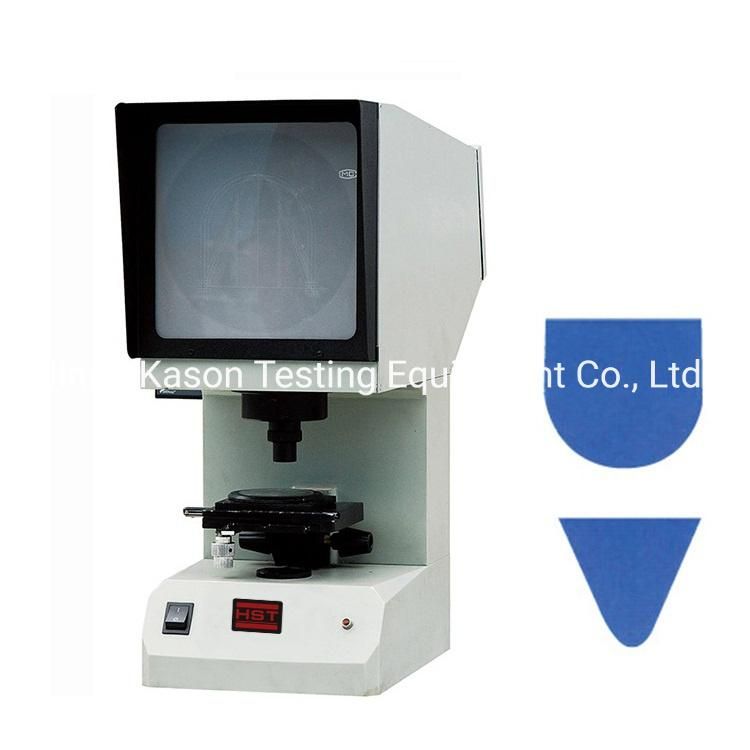

We also have other related machines for your choice:
