500kn 50ton Electronic Universal Testing Machine with Computer Control

Jinan Kason Testing Equipment Co., Ltd.
  • After-sales Service：24 Hours Technical Supply
  • Warranty：12 Months
  • Max Diameter of Workpiece：<500mm
  • Mass Scope of Workpiece：<900kg
  • Type：Universal Testing Machine
  • Maxcapacity：<1000KN

Base Info

  • Model NO.：WDW-500
  • Accuracy Grade：0.5
  • Load Way：Electronic Load
  • Loading Method：Static Load
  • Display：Digital
  • Control：Computer Control
  • Weight：>2000Kg
  • Power Source：AC220V
  • Delivery Time：15 Days After Get Payment
  • Standard：ASTM, GB, ISO, DIN
  • Transport Package：Standard Export Packing
  • Specification：1360*1000*2830mm
  • Trademark：HST or OEM
  • Origin：Shandong China
  • HS Code：9024101000
  • Production Capacity：100 Sets Per Month

Description

Four-column floor or desk model,
(upper is compression and lower is tensile)CoverAll aluminum alloyControl methodComputer controlLoad accuracyClass 1Class 0.5Class 1Class 0.5Load range2%~100%F·S0.2%~100%F·S2%~100%F·S0.2%~100%F·SLoad resolution1/300000Rang of deformation4%-100%FSResolution of deformation0.04umAccuracy of displacementWithin±0.5%of indicating loadResolution of displacement0.01mmTest speed(mm/min)0.05-1000 stepless arbitrary settingTensile space(mm)800(can be customized)Compression space(mm)800(can be customized)Test width(mm)400(can be customized)

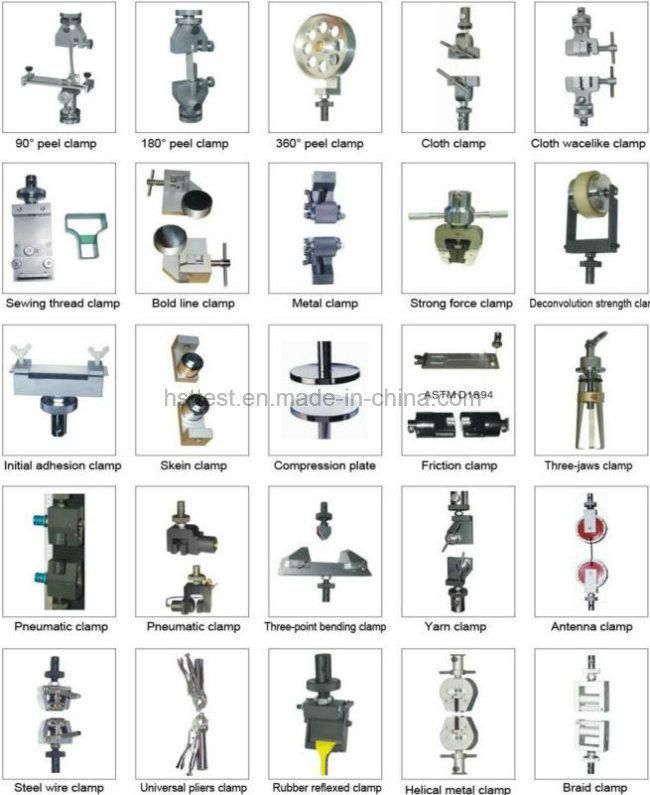

Fixtures for choice according to different material:
500kn 50ton Electronic Universal Testing Machine with Computer Control

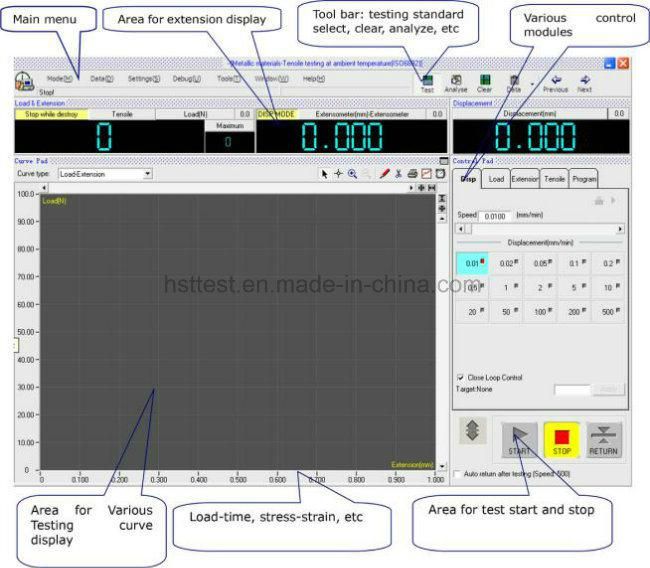

Machine software show:
500kn 50ton Electronic Universal Testing Machine with Computer Control
500kn 50ton Electronic Universal Testing Machine with Computer Control
