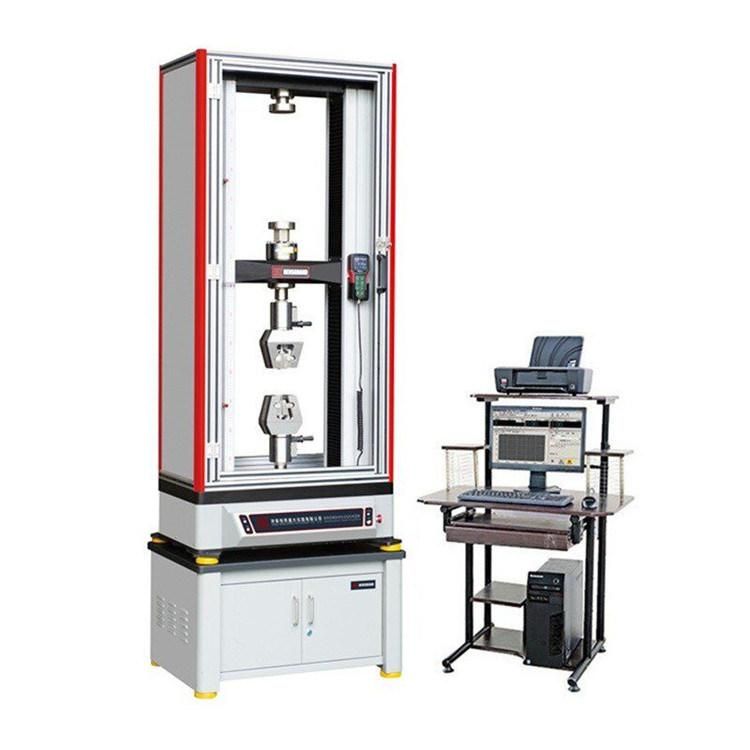

Wds-300 30t Digital Display Type Electronic Universal Tension Compression Tester
Jinan Kason Testing Equipment Co., Ltd.- After-sales Service：24 Hours Technical Supply
- Warranty：12 Months
- Max Diameter of Workpiece：<500mm
- Mass Scope of Workpiece：<900kg
- Type：Universal Testing Machine
- Maxcapacity：300kn
Base Info
- Model NO.：WDS-300
- Accuracy Grade：1
- Load Way：Electronic Load
- Loading Method：Static Load
- Display：Digital
- Control：Manual Control
- Weight：100-500Kg
- Power Source：AC220V
- Certification：CE & ISO
- Transport Package：Plywood Exporting Package
- Specification：350kg, 1.35CBM, color can customize
- Trademark：HST
- Origin：Jinan, Shandong, China
- HS Code：9024109000
- Production Capacity：1000 Sets,Month
Description
Four-column floor model, (upper is tensile and lower is compression; upper is compression and lower is tensile)Control method Single chip control Load accuracy 1 class Load range 2%~100%F·S/0.4%-100% FS Displacement Resolution 0.04um Test speed 1-200mm/min(can be customized) Tensile space 550mm(can be customized) Compression space 500mm(can be customized) Test width 600mm(can be customized) Power supply AC220V±10%,50Hz(can be customized) Grips Wedge type, plate type and other grips as consumer's demand Dimension 1000*650*2150mm Weight 980 kg
4. Main Unit Feature:
4.1 Adopt floor structure,High Stiffness, lower for tensile, upper for compression,upper for tensile, lower for compression, double space. The beam is step less lifting.
4.2 Adopting ball screw drive, realize no clearance transmission,make sure the precision control of the test force and deformation speed.
4.3 The shiel plate with limit mechanism used to control the beam moving range, in order to avoid sensor damaged due to the moving distance is too large.
4.4 The table, moving beams is made of high quality precision machining steel plate , not only reduce the vibration generated by specimen fracture, but also improve the stiffness.
4.5 Three columns of mandatory orientation, make the main unit rigidity much improved, to further ensure the repeatability of measurement.
4.6 Adopt bolt type grip installation, make the grip replace easier.
4.7 Adopt AC servo driver and AC servo motor, with stable performance,more reliable. Have over-current, over-voltage, over speed, overload protection device.
5.Function Features:
5.1 Automatic calibration: system can automatically realize the accuracy of the calibration value.
5.2 After the sample broken, automatic stop.
5.3 Automatic display: Real-time display testing force, displacement, testing speed, peak value, testing status on one LCD.
5.4 Automatic return: beam automatic return to initial position when testing finished.
5.5 Breakage judgment: sample after fracture,beam automatic stop moving.
5.6 Limiting protection: Program control and Mechanical limiting protection.
5.7 Overload protection: When more than 3 ~ 5% of the rated load device automatically stop working.
5.8 Automatic calculation: automatic calculation area after input sample diameter (round); Width, thickness (flat), sample gauge ect.
