Ultralow-Temperature Automatic Metal Izod Charpy Impact Testing Machine (JBDW-500C)

Jinan Kason Testing Equipment Co., Ltd.

After-sales Service：Standard
Warranty：1 Year
Max Diameter of Workpiece：1000mm
Mass Scope of Workpiece：4000kg
Type：Impact Testing Machine
Maxcapacity：500j

Base Info

Model NO.：JBDW-500C
Accuracy Grade：1
Load Way：Electronic Load
Loading Method：Static Load
Display：Computer Display
Control：Computer Control
Weight：500-1000Kg
Power Source：AC220V
Oil Cylinder Position：Under
Delivery Time：3 Days
Certification：Ce ISO
Range of Low Temperature：Room Tempeature-196 Degree
Transport Package：Standard Export Packing
Specification：2200 × 1500× 1900mm
Trademark：HST
Origin：China
HS Code：9031809090
Production Capacity：900 Sets Per Month

Description

Overview Product Description JBDW-300CJBDW-500Cimpact energy150J300J250J500JValue of every grid2J1J5J2.5JMoment of pendulum(N.m)
160.7695
80.3848
267.9492
133.9746
The distance between the
pendulum shaft and impact point750mm850mmImpact speed5.2m/s5.4 m/sPre-rising angle of the pendulum150°Specimen bearer span40+0.2mmRound angle of the jawR1-1.5mmRound angle of impact edgeR2-2.5mm,R8±0.05(special order)mmAngle accuracy0.1°Standard specimen dimension10mm×10(7.5/5)mm×55mmThickness of impact knife16mmDip angle of supporting surface of supports11°
Cooling wayliquid nitrogen refrigerationCapacity of sample box10Range of low temperatureroom tempeature-196°CPrecision of controlling temperaturefluctuation ±1.5°C grades 2°C
Speed of sending specimen≤2SPower supply3phs, 380V, 50Hz Or 220V,60HzDimensions (mm)2200 ×1500×1900 2200 ×1500×1900Net Weight (kg)850950
5.Standard Accessories

5.1 Main unit----------1 setCompany Profile

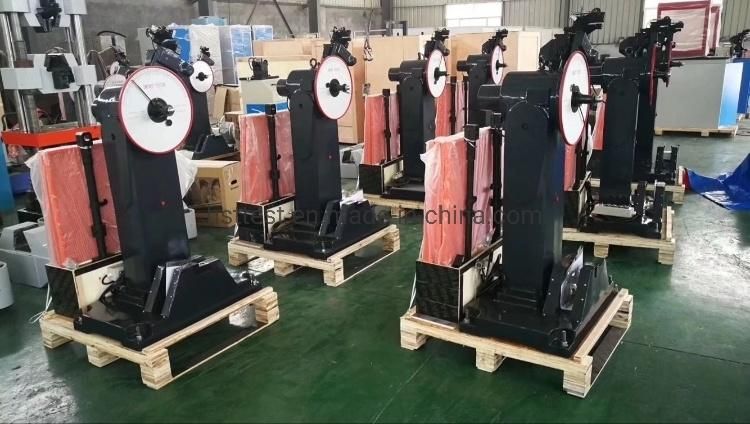

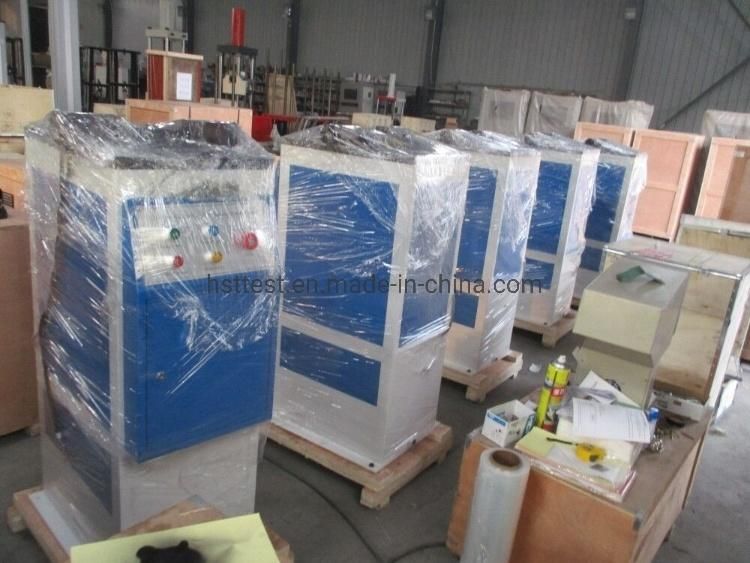

Our workshop:
