• Model NO.：YES-100,200,300
• Loading Method：Static Load
• Display：Digital
• Control：Manual Control
• Weight：100-500Kg
• Power Source：AC 380V ,220V
• Oil Cylinder Position：Under
• Color：Gray, White , Blue,Green or Customized
• Safe：Protection Net
• Sample：Concrete or Cement or Stone
• Resolution：0.01kn
• Distance Between Pressure Plate：210mm
• Distance Between Columns：180mm
• Pressure Plate：170mm
• Certificate：Ce ISO
• Warranty：12 Months
• Test Space Adjusting Mode：Block Adjustment Test Space
• Transport Package：Standard Sea Shipping Case
• Specification：900*450*1400mm
• Trademark：HST or OEM
• Origin：China
• HS Code：9024800000
• Production Capacity：500 Sets,Month

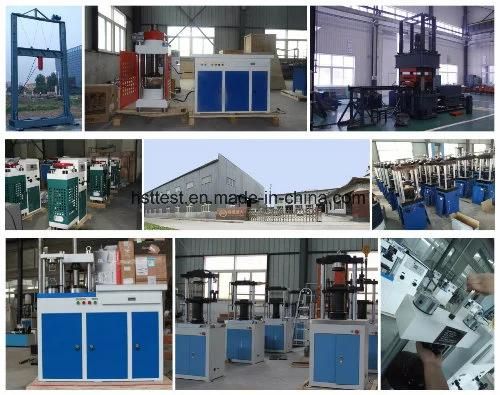

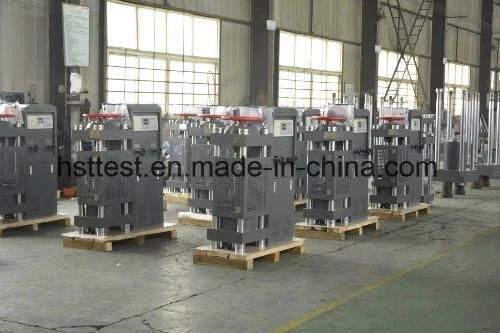

Block adjustment test spaceOil source control structureWith the host integration designControl modeManual control loading processTest class1 class1 class1 classLoad display accuracy±1%±1%±1%Force resolution1/100001/100001/10000Piston stroke80mm80mm80mmMax piston speed50mm/min50mm/min50mm/minMax compression space between two plates210mm210mm210mmMax distance between two columns180mm180mm180mmWorking table sizeφ170 mmφ170 mmφ170 mmDimension900×450×1400mmPower supply0.75Kw/AC380V4. Real Pictures:

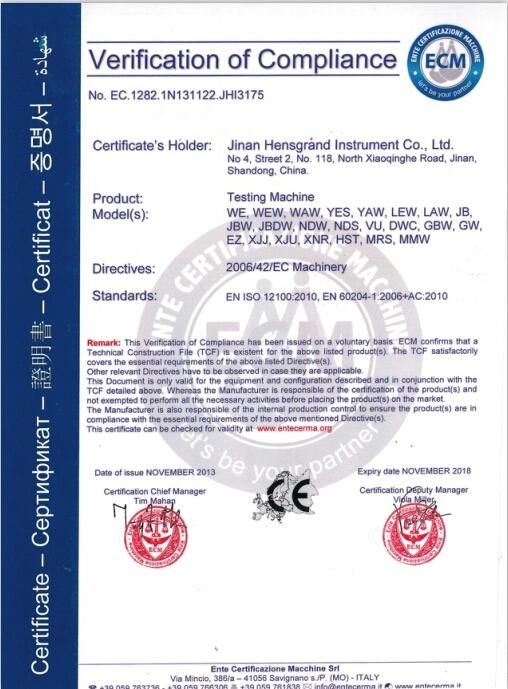

5. Certificate

Different models for choice


5. Our Business Scope
A: Universal Testing Machine: Electronic/hydraulic    Single column/door tye WDS/WDW/WE/WEW/WAW
B: Impact Testing Machine: JB-300B/500B JBS-300B/500B  150J to 750J
C: Compression Testing Machine: YES-2000/3000/3000D  YAW-300
D: Hardness Testing Machine: Rockwell, Brinell, Vicker, Universal, Portable-leeb/webster/shore
E: Force Gauge/Tension Meter: NK DTF HF ATG etc.
F: Friction/Wear  Resistance Tester: MMW  MRH   MMU
G: Metallographic Equipments:cutting, mounting, polishing and grinding machine, microscopes.
