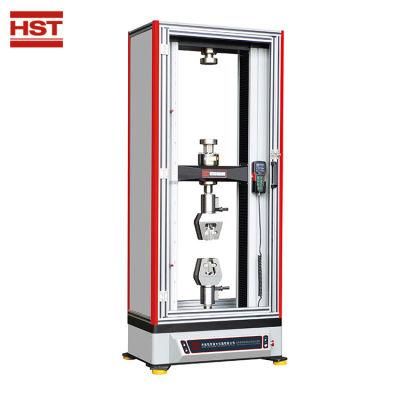

50kn Computer Controlled Electronic Universal Tensile Strength Testing Machine

Jinan Kason Testing Equipment Co., Ltd.
  • After-sales Service：24 Hours Technical Supply
  • Warranty：12 Months
  • Max Diameter of Workpiece：<500mm
  • Mass Scope of Workpiece：<900kg
  • Type：Tensile Testing Machine
  • Maxcapacity：50kn

Base Info

  • Model NO.：WDW-50
  • Accuracy Grade：1 or 0.5
  • Load Way：Electronic Load
  • Loading Method：Static Load
  • Display：Computer Display
  • Control：Computer Control
  • Weight：100-500Kg
  • Power Source：AC220V
  • Oil Cylinder Position：Motor Under
  • Certificate：CE ISO
  • Transport Package：Plywood Exporting Package
  • Specification：350kg 1.37CBM
  • Trademark：HST
  • Origin：Jinan, Shandong, China
  • HS Code：9024101000
  • Production Capacity：1200sets,Month

Description

Basic Info.

Model NO. WDW-50 Accuracy Grade 1 or 0.5 Load Way Electronic Load Loading Method Static Load Display Computer Display Control Computer Control Weight 100-500Kg Power Source AC220V Oil Cylinder Position Motor Under Certificate CE ISO Transport Package Plywood Exporting Package Specification 350kg 1.37CBM Trademark HST Origin Jinan, Shandong, China HS Code 9024101000 Production Capacity 1200sets/Month

Product Description

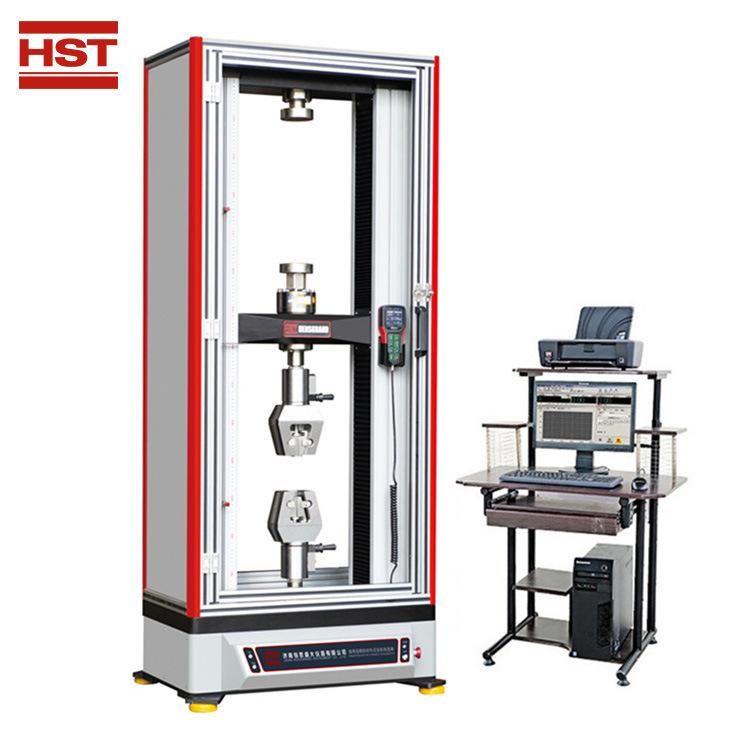

50kN Computer Controlled Electronic Universal Tensile Strength Testing Machine
50kn Computer Controlled Electronic Universal Tensile Strength Testing Machine
1. Application:
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.

2.Standard:
ASTM, ISO, DIN, GB and other international standards.

3.Main Technical Parameters:
ModelWDW-50
Max. load50 kN
StructureFour-column floor model, (upper is tensile and lower is compression; upper is compression and lower is tensile)
Control methodComputer control
Load accuracy1 class/0.5 class (optional)
Load range2%~100%F·S/0.4%-100% FS (optional)
Resolution 1/300000
Measuring range of deformation2%-100%
Accuracy Indication of
deformation		≤±1%
Disp. indicating relative error≤±1%
Displacement Resolution 0.01mm
Test Speed0.05~500mm/min(can be customized)
Effective Tensile space700mm(can be customized)
Effective Compression space700mm(can be customized)
Effective Testing width400mm(can be customized)
Power supplyAC220V±10%,50Hz (can be customized)
