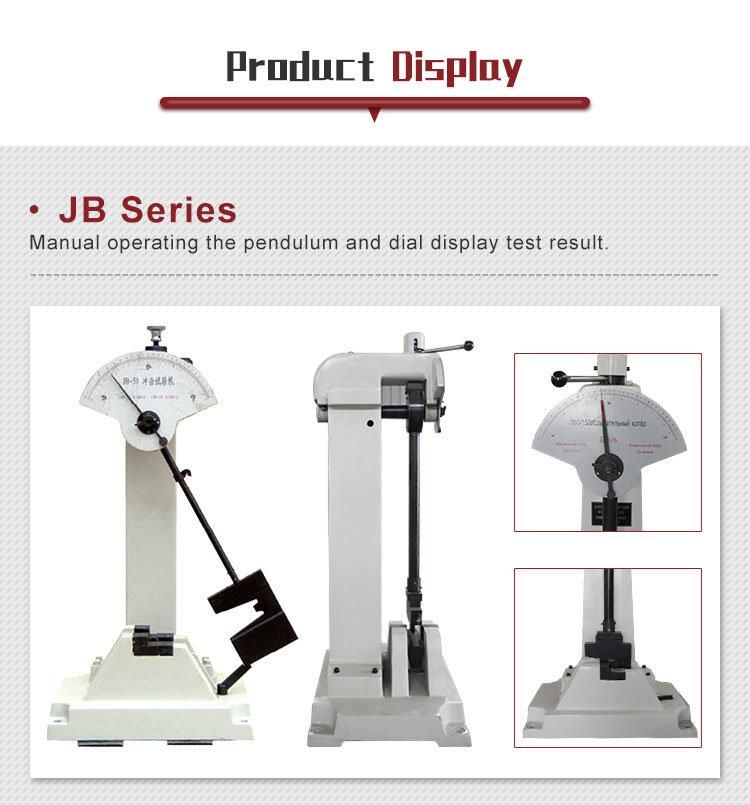

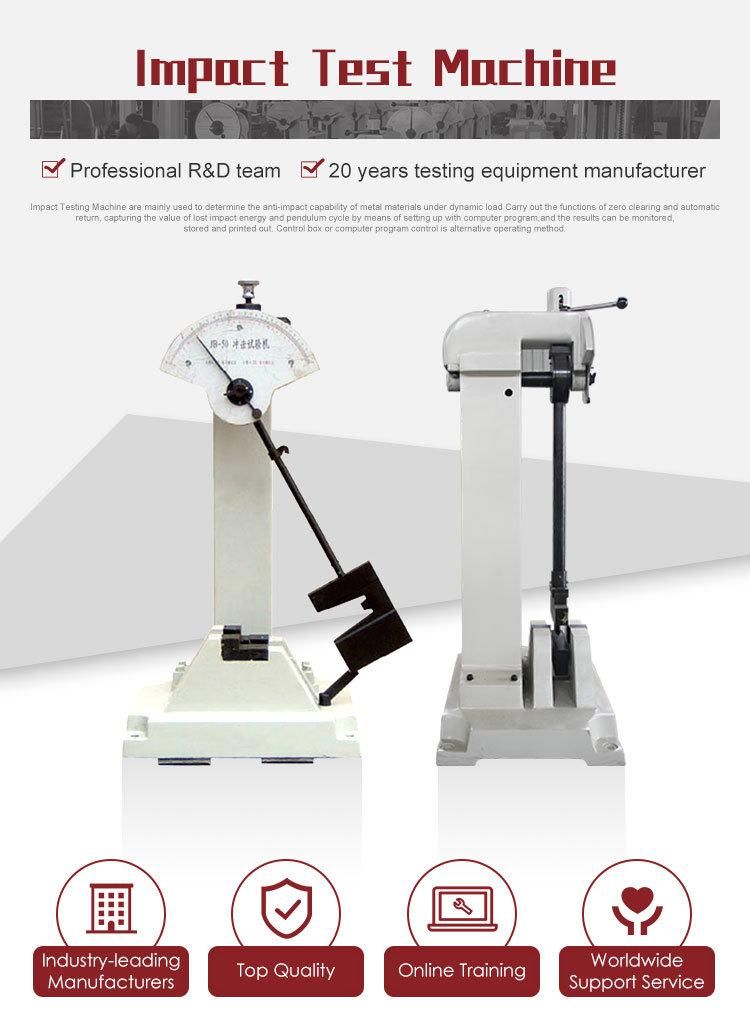

Semi Automatic Pendulum 150j 300j Metal Impact Testing Machine (JB-300)

Jinan Kason Testing Equipment Co., Ltd.
  • After-sales Service：1 Year
  • Warranty：1 Year
  • Max Diameter of Workpiece：<500mm
  • Mass Scope of Workpiece：<900kg
  • Type：Impact Testing Machine
  • Maxcapacity：<1000KN

Base Info

  • Model NO.：JB-300
  • Accuracy Grade：1
  • Load Way：Electronic Load
  • Loading Method：Dynamic Load
  • Display：Needle
  • Control：Manual Control
  • Weight：100-500Kg
  • Power Source：AC380V
  • Oil Cylinder Position：Under
  • Delivery Time：10-25 Days After Get Payment
  • Color：White
  • Impact Energy：150j,300j
  • Transport Package：Standard Export Packing
  • Specification：1000× 630× 1520mm
  • Trademark：HST OR OEM
  • Origin：China
  • HS Code：9031809090
  • Production Capacity：300 Sets Per Month

Description

Basic Info.

Model NO. JB-300 Accuracy Grade 1 Load Way Electronic Load Loading Method Dynamic Load Display Needle Control Manual Control Weight 100-500Kg Power Source AC380V Oil Cylinder Position Under Delivery Time 10-25 Days After Get Payment Color White Impact Energy 150j/300j Transport Package Standard Export Packing Specification 1000× 630× 1520mm Trademark HST OR OEM Origin China HS Code 9031809090 Production Capacity 300 Sets Per Month

Product Description

Semi Automatic Pendulum 150J 300J Metal Impact Testing Machine (JB-300)Semi Automatic Pendulum 150j 300j Metal Impact Testing Machine (JB-300)Semi Automatic Pendulum 150j 300j Metal Impact Testing Machine (JB-300)Semi Automatic Pendulum 150j 300j Metal Impact Testing Machine (JB-300)
1.Application:
JB-300 Manual Impact Testing Machine is used for measuring the metal material resistance performance
under dynamic load, in order to determine the material properties under dynamic load.
2.Standards:
ISO148, EN10045, ASTM E23, GB/T3808-2002, GB/T229-2007.
3.Main Technical Specifications:
ModelJB-300
Reading Of Dia0-150J (1J/Grid);  0-300J(2J/Grid)
Impact Energy150J, 300J
The Distance Between The Pendulum
Shaft And Impact Point		800mm
Impact Speed5.2 m/s
Pre-rising Angle Of The Pendulum135°
Specimen Bearer Span40+0.2mm
Round Angle Of The JawR1-1.5mm
Round Angle Of Impact EdgeR2-2.5mm
Angle Accuracy0.1°
Power SupplyManual
Standard Specimen Dimension10mm×10mm×55mm
Dimensions (mm)1000×630×1520mm
Net Weight (kg)320KG

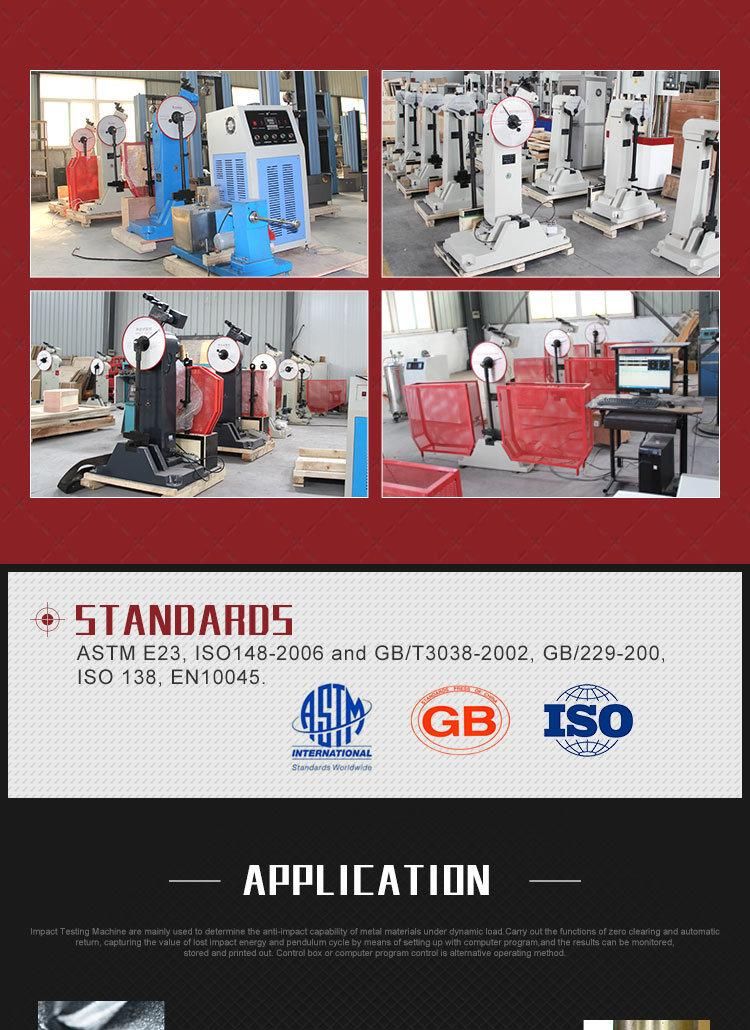

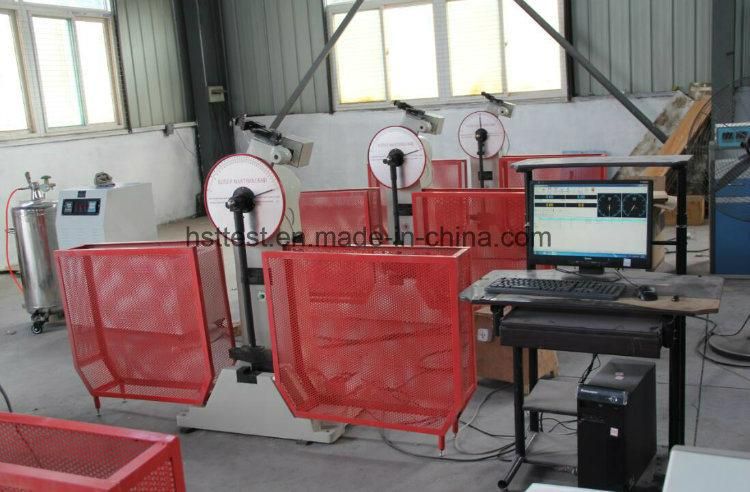

 Our factory show:
Semi Automatic Pendulum 150j 300j Metal Impact Testing Machine (JB-300)
Semi Automatic Pendulum 150j 300j Metal Impact Testing Machine (JB-300)

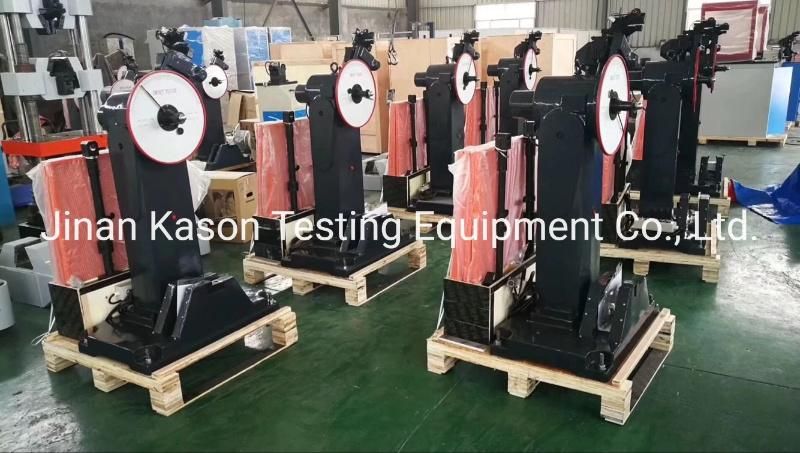

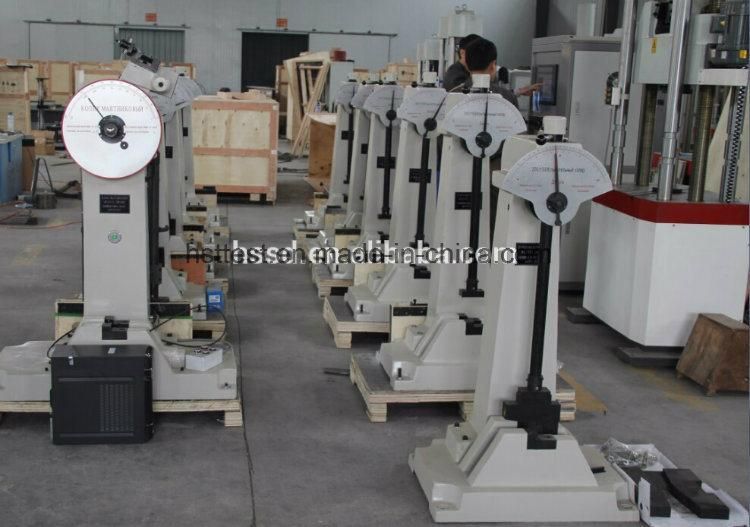

Machines in store show:
Semi Automatic Pendulum 150j 300j Metal Impact Testing Machine (JB-300)
Dear Customer, we also have the below impact teters and attached machines for choice:
Dial Display impact testing machines
Digital control impact testing machines
Computer display impact testing machines
Computer automatic low temperature impact testing machines from minus 60 to 190 degree
Projector for impact specimen
Broaching machine for specimen
Impact testing low temperature chambers
Semi Automatic Pendulum 150j 300j Metal Impact Testing Machine (JB-300)

Semi Automatic Pendulum 150j 300j Metal Impact Testing Machine (JB-300)Semi Automatic Pendulum 150j 300j Metal Impact Testing Machine (JB-300)Semi Automatic Pendulum 150j 300j Metal Impact Testing Machine (JB-300)Semi Automatic Pendulum 150j 300j Metal Impact Testing Machine (JB-300)Semi Automatic Pendulum 150j 300j Metal Impact Testing Machine (JB-300)
