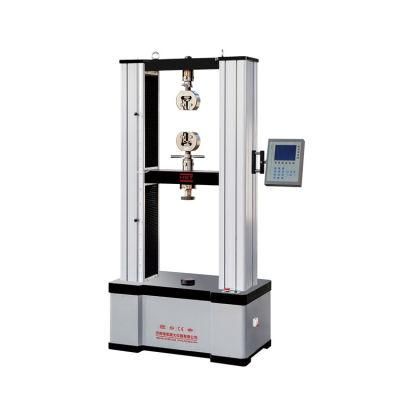

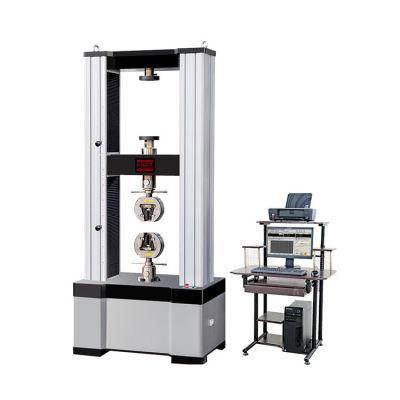

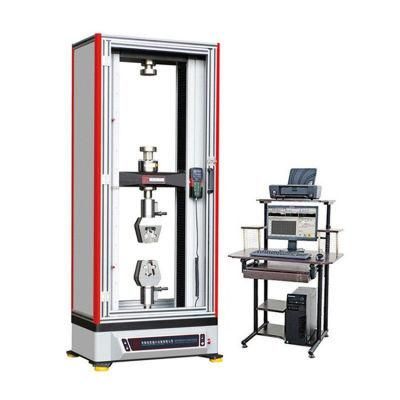

30 Ton Electronic Automatic Steel Wire Tensile Testing Measurement Systems

Jinan Kason Testing Equipment Co., Ltd.
  • After-sales Service：24 Hours Technical Supply
  • Warranty：12 Months
  • Max Diameter of Workpiece：<500mm
  • Mass Scope of Workpiece：<900kg
  • Type：Universal Testing Machine
  • Maxcapacity：<1000KN

Base Info

  • Model NO.：WDW-300
  • Accuracy Grade：0.5
  • Load Way：Electronic Load
  • Loading Method：Static Load
  • Display：Digital
  • Control：Computer Control
  • Weight：500-1000Kg
  • Power Source：AC220V
  • Delivery Time：3 Days After Get Tt Payment
  • Standard：ASTM, GB, ISO, DIN
  • Transport Package：Standard Export Packing
  • Specification：1000*650*2150mm
  • Trademark：HST
  • Origin：China
  • HS Code：9024101000
  • Production Capacity：200 Sets Per Month

Description

Four-column floor or desk model,
(upper is compression and lower is tensile)CoverAll aluminum alloyControl methodComputer controlLoad accuracyClass 1Class 0.5Class 1Class 0.5Load range2%~100%F·S0.2%~100%F·S2%~100%F·S0.2%~100%F·SLoad resolution1/300000Rang of deformation4%-100%FSResolution of deformation0.04umAccuracy of displacementWithin±0.5%of indicating loadResolution of displacement0.01mmTest speed(mm/min)0.05-200 stepless arbitrary settingTensile space(mm)550(can be customized)Compression space(mm)550(can be customized)Test width(mm)600(can be customized)30 Ton Electronic Automatic Steel Wire Tensile Testing Measurement Systems30 Ton Electronic Automatic Steel Wire Tensile Testing Measurement Systems30 Ton Electronic Automatic Steel Wire Tensile Testing Measurement Systems30 Ton Electronic Automatic Steel Wire Tensile Testing Measurement Systems
