Lx Series Indicator Needle Type Shore Hardness Tester
Jinan Kason Testing Equipment Co., Ltd.- After-sales Service：Standard
- Warranty：1 Year
- Max Diameter of Workpiece：<500mm
- Mass Scope of Workpiece：<900kg
- Type：Hardness Tester
- Maxcapacity：10-90 Ha
Base Info
- Model NO.：LX
- Accuracy Grade：1
- Load Way：Mechanical Load
- Loading Method：Static Load
- Display：Digital
- Control：Manual Control
- Weight：0-100Kg
- Power Source：AC220V
- Oil Cylinder Position：Under
- Hardness Test：Application
- Transport Package：Plywood
- Specification：115*60*25mm
- Trademark：HST
- Origin：Shangdong, China
- HS Code：9024800000
- Production Capacity：1000
Description
Overview
Product Description
wax,etc.
Type C: Applicable to the hardness test of rubber microporous material.
Type D: Applicable to hard rubber, hard resin, acrylic, glass, cushiony plastic cement, printing
plates, fiber, etc.
2.Major Performances:
Shaw rubber hardness gauge is an apparatus to measure vulcanized rubber and plastic products.
This apparatus has three models of Type A, Type C and Type D and each model is subdivided into
two types of single pointer and double pointer.
Type A and D respectively are applicable to the testing of low and medium hardness, and high-hardness materials.
Type C applies to the testing of microporous material which is used to make shoes,with compression rate 50 percent, stress 0.049 MPa or above, and this kind of material is made of rubber plastic and has blister in plastic.
This hardness gauge conforms to the regulations of GB/T531-99, GB2411-80, hg/t2489-93, JJG304-2003.Product ParametersLX-C LX-D Indicator Needle Single Double Single Double Single Double Model LX-A-1 LX-A-2 LX-C-1 LX-C-2 LX-D-1 LX-D-2 Test Range 0-100HA 0-100HC 0-100HD Available Test Range 10-90 HA 10-90 HC 10-90 HD Resolution 1HA 1HC 1HD Pressure Head Size 0.79mm SR2.5mm SR0.1mm End pressure of Pressure Head 0.55N-8.06N 0.55N-8.06N 0-44.5N Stroke 0-2.5mm Dimension 115*60*25mm Apparatus Weight 0.16 KG
Company Profile

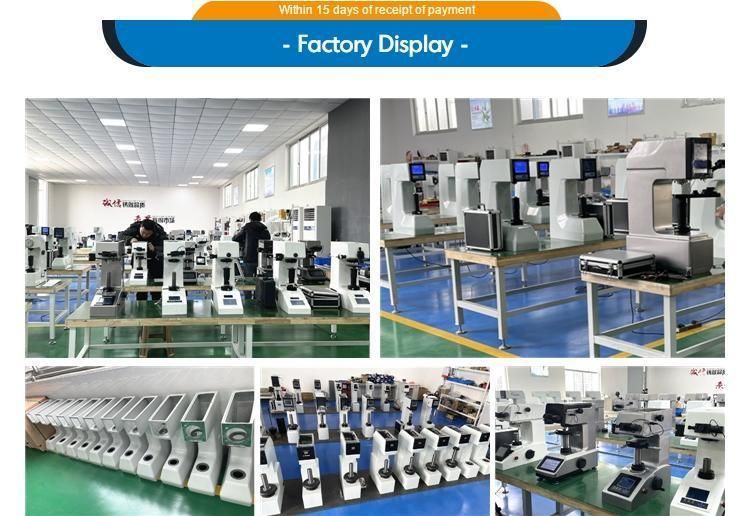

Our exhibation
1.Application:
Type A: Applicable to general rubber, synthetic rubber, vulcanized rubber, soft rubber, leather,wax,etc.
Type C: Applicable to the hardness test of rubber microporous material.
Type D: Applicable to hard rubber, hard resin, acrylic, glass, cushiony plastic cement, printing
plates, fiber, etc.
2.Major Performances:
Shaw rubber hardness gauge is an apparatus to measure vulcanized rubber and plastic products.
This apparatus has three models of Type A, Type C and Type D and each model is subdivided into
two types of single pointer and double pointer.
Type A and D respectively are applicable to the testing of low and medium hardness, and high-hardness materials.
Type C applies to the testing of microporous material which is used to make shoes,with compression rate 50 percent, stress 0.049 MPa or above, and this kind of material is made of rubber plastic and has blister in plastic.
This hardness gauge conforms to the regulations of GB/T531-99, GB2411-80, hg/t2489-93, JJG304-2003.Product Parameters
3.Specifications:
