200kn Computerized Servo Universal Material Tensile Test Testing Machine

Dongguan Haida Equipment Co., Ltd.
  • Type：Tensile Testing Machine
  • Maxcapacity：<1000KN
  • Accuracy Grade：0.5
  • Load Way：Electronic Load
  • Loading Method：Dynamic Load
  • Display：Digital

Base Info

  • Model NO.：HD-B616
  • Control：Computer Control
  • Weight：>2000Kg
  • Power Source：AC220V
  • Oil Cylinder Position：Under
  • Max. Test Load：300kn
  • Warranty Period：One Year
  • Delivery Time：20 Days After Receive The Deposit
  • Load Range：6kn-300kn
  • Max. Tensile Space：800mm(Including Piston Stroke)
  • Technology：Professional
  • Relative Error of Indicate Value of Load：±1%
  • Tensile Grips for Flat Specimen：0-15mm
  • Dia. of Bending Roller：30mm
  • Vclamping Mode：Hydraulically
  • Transport Package：Strong Wooden Case
  • Specification：ISO9001: 2008, CE, SGS.
  • Trademark：Haida
  • Origin：Dongguan, China
  • HS Code：9024109000
  • Production Capacity：150 Sets,Month

Description

ModelHD-B616Max. Test load300KNLoad range6KN-300KNRelative error of indicate value of load±1%Max. Ram stroke250mmMax. Tensile space800mm(including piston stroke)Max. Compression space700mm(including piston stroke)DisplayComputer control and displayTensile grips for round specimenφ6-φ26mmTensile grips for flat specimen0-15mmDistance for two columns500mmUpper and lower platen size200x200mmThe span of bending450mmWidth of bending roller140mmDia. of bending roller30mmClamping modeHydraulicallyTransducerload cellDeformation measuringYYU-10/50Dimensions of load frame990×600×2435mmDimension of controller1140×700×930mmAll weight2800kg
Main standard accessories:Upper and lower platen for compression(200x200mm)1 setExtensometer1 setRound specimen grip for tensile ( φ6-φ26mm  )1 setFlat specimen grip for tensile ( 0-15mm )1 setBending accessories  1 setHigh accurate load cell1 setHigh precision photoelectric encoder Measuring the displacement1 setHigh pressure pump  1 setProportion Valve1 setElectro-hydraulic servo valve1 setShearing accessories ( Optional accessories)1 set
200kn Computerized Servo Universal Material Tensile Test Testing Machine

200kn Computerized Servo Universal Material Tensile Test Testing Machine    200kn Computerized Servo Universal Material Tensile Test Testing Machine

Packaging & Shipping:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.

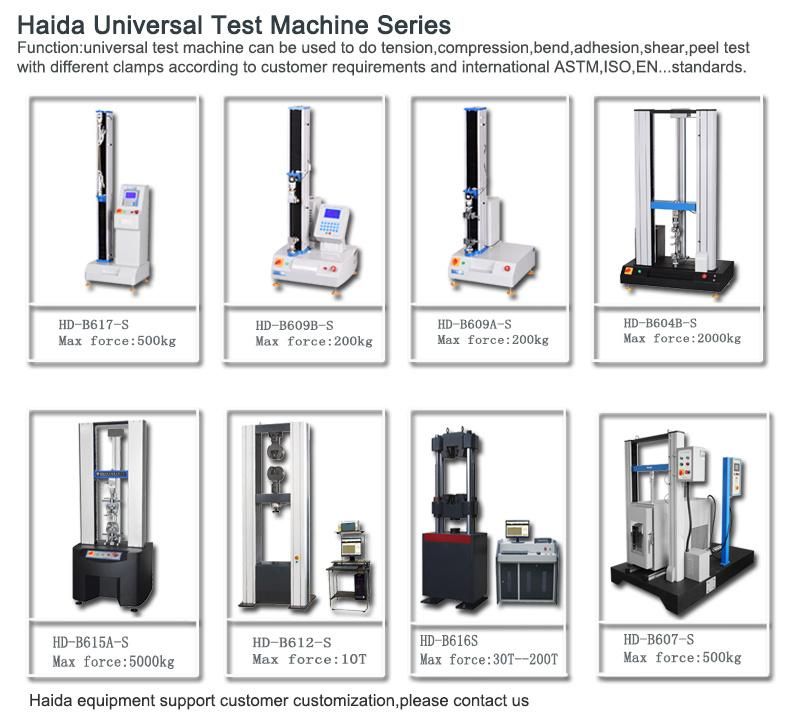

Universal tester

200kn Computerized Servo Universal Material Tensile Test Testing Machine

Our company Introduction: hydraulic pump testing machine

HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 24 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.
200kn Computerized Servo Universal Material Tensile Test Testing Machine


Our Service

Haida Equipment Service: hydraulic pump testing machine

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.

Onsite Service: hydraulic pump testing machine

1.Device installation; 2.Equipment Operation Test Technology training;3.Equipment Calibration;4.Daily maintenance and maintenance of equipment

Free technical training for visiting factories

24-hour Online contact

Free software upgrades

Free information: hydraulic pump testing machine

1.Product Instruction;2.Product operation instruction/video;3.Experiment Test (test application, test report)

Device Problem Handling:

1. Social media 24 hours online communication;2. Mail Seamless Docking;3. Video Conferencing;4. Artificial free door-to-door service

200kn Computerized Servo Universal Material Tensile Test Testing Machine

FAQ

Why choose us?

1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.

2.Excellent After sale Service:  hydraulic pump testing machine
12 months warranty. Besides, we can help you to repair your problem controller freely, Free replacement parts, even it's not from our factory's. What you need to do is to send us the controller.We can offer operation video and English operation muanual. We can provide video-con


200kn Computerized Servo Universal Material Tensile Test Testing Machine
