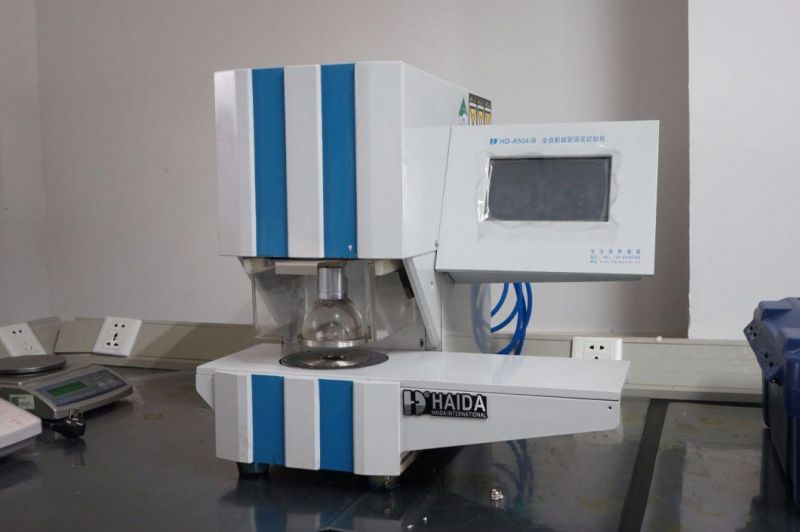

• Model NO.：HD-A504-B
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Design Standards：Tappi, ISO, ASTM
• Operate Method：Automatic
• Unit (Switchable)：Kpa, Psi, Kg,Cm^2
• Accuracy：0.5%
• Specimen Clamping Force：>690kpa
• Indicating Method：Digital
• Oil：85% Glycerin; 15% Distilled Water
• Motor：Anti-Vibration Motor 1,4 HP
• Speed of Compression：High Pressure 170± 10ml,Min
• Pressure Range：250~5600kpa
• Transport Package：Strong Plywood Case
• Specification：ASTM-D624, TAPPI, ISO
• Trademark：Haida
• Origin：Dongguan, China
• HS Code：9024109000
• Production Capacity：150 Set Per Month

ModelHD-A504Capacity  (Optional)High Pressure 0~100 Kg/ cm^2 (0.1kg/cm^2)Unit (sitchable)Kpa, psi, kg/cm^2Accuracy± 0.5%Pressure Range250~5600kpaSpeed of CompressionHigh Pressure 170± 10ml/minSpecimen Clamping Force>690kpaOil85% Glycerin; 15% Distilled Water Sensing methodPressure TransmitterIndicating MethodDigitalDisplayLCDMaterial of the RingStainless Steel SUS304Opening in Upper Clamp31.5 ± 0.05 mm DiameterOpening in Lower Clamp31.5 ± 0.05 mm DiameterMotorAnti-vibration Motor 1/4 HPOperation MethodautomaticDimension (L×W×H)430×530×520 mmWeight Approx. 64 kgPower1 phase, AC220± 10%, 50 HzPower Capacity120WStandard ConfigurationRubber Membrane 1 piece, Spanner 1 set, Correction Shim 10 sheets, Glycerin 1 bottleOptional ConfigurationPrinterStandardJIS-L1004, L1018, L1031, K6328, P8131, P8112
ASTM-D2210; TAPPIT403TS-63
ISO2759-2001; GB/T1539




The Introduction of Haida
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.


RAQ
Q1:Your company is a trading company or a factory?
A1:We are direct factory, 17 years focused on physical, paper and package test equipment development, manufacturing, six years of export experience.

Q2:What about the quality of services and products?
A2:Before shipping and delivery of the goods, the quality of the product must be 100% for each inspection and test.
Products use training: each of our products provide video training, to show you how to install and operate.
All the products meet with: ISO, ASTM, AATCC, BS, EN, DIN, JIS, GB and other standards.

Q3:How long the delivery time is?
A3:Generally about 15-25 days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
except for the special customization.
