• Model NO.：CY-CCS-300,10P
• Transport Package：Wooden Case
• Specification：176mm x 350mm x 356mm
• Trademark：CYKY
• Origin：Zhengzhou, China
• HS Code：9013809000
• Production Capacity：200

Basic Info.

Model NO. CY-CCS-300/10P Transport Package Wooden Case Specification 176mm x 350mm x 356mm Trademark CYKY Origin Zhengzhou, China HS Code 9013809000 Production Capacity 200

Product Description

High precision microcomputer control normal temperature compressive strength testing machine


Instrument introduction of Microcomputer controlled normal temperature compressive strength testing machine :
Mainly used for normal temperature compressive strength testing of materials.
High-precision digital servo valve with force closed-loop control function, capable of equal load rate loading or equal stress rate loading, high control precision and good reliability;
The microcomputer is used to realize electronic measurement, automatically complete the compressive strength test, and automatically calculate and print the report;

Technical parameters of Microcomputer controlled normal temperature compressive strength testing machine:
anti-folding and pressure-resistant one machine, double-station test space, space saving, simple operation, maximum pressure test force 300KN, maximum bending test force 10KN, computer automatic control

Maximum test force	300kN/10kN
Range of force measurement	2% to 100% FS
Relative error of test force indication	≤±1%
Loading rate (kN/S)	0.3 to 10 (compressive pressure) / 50 (flexural)
Loading speed error	±5%
Bearing plate size (mm)	Φ155 (compression resistance) / 80X150 (bending)
Maximum stroke of the piston (mm)	80
Piston diameter (mm)	Φ130 (compressive pressure) / Φ50 (bending)
Maximum oil pressure (MPa)	25
Oil pump rated flow (L/min)	1.52
Motor power (kW)	0.75
Mainframe dimensions (length × width × height) (mm)	820×450×1300
Weight (kg)	500

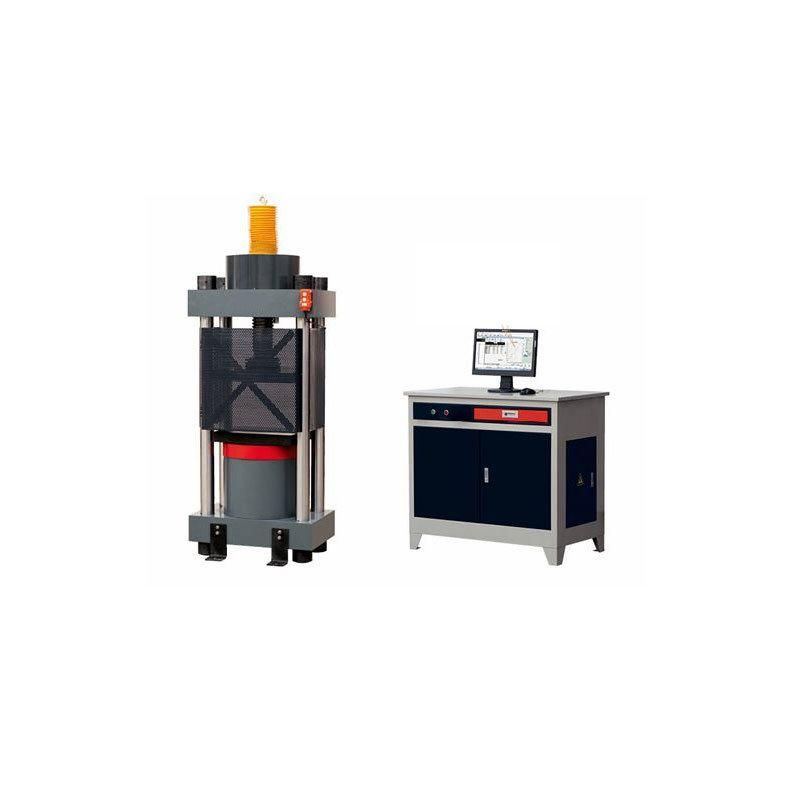

Product pictures of Microcomputer controlled normal temperature compressive strength testing machine:

Founded in 2005, Zhengzhou CY Scientific Instrument Co., Ltd. is a company specializing in the development and production of laboratory technology research equipment. The products are mixed, pressed, burned, cut, ground, polished, coated, analytical equipment and related consumables. Products include laboratory sintering equipment, coating equipment and so on. At present, it has been exported to 25 countries and regions such as the United States, Europe, and Southeast Asia, and has been well received by various scientific research units.

We have a mature technology research and development team, the number of technicians is 33, the company has 150 people, more than 500 square meters of office space, the factory covers an area of about 1,500 square meters located in Zhengzhou High-tech Zone Electronic Industrial Park. The products are mainly located in the research market, serving scientific research in the labs of universities and colleges, and can also customize products according to your needs.

Q. Are you a manufacturer or a trading company?

A. We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.

Q. How is your company's product after-sales service system?

A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales departments that can respond to you within 24 hours to resolve any technical issues.

Q. How long is your delivery time? If I want to customize the instrument, how long does it take?

A.1. If the goods are in stock, it is 5-10 days. 2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.

Q. Our country's power supply and plug are different. How do you solve it?

A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries.

Q. How to pay?

A.T / T, L / C, D / P, etc., it is recommended to use Alibaba Trade Guarantee.

Q. How is the package of goods? Delivery methods?

A.1. Standard export fumigation sign wooden box packaging 2. Express, air, sea shipping according to customer requirements, find the most suitable way.

More questions, please contact customer service.
