ISO7500/1 Computer-Type Plastic Leather Rubber Universal Testing Machine (GW-011A)

GREAT WIN INSTRUMENT CO., LTD.
  • Max Diameter of Workpiece：2000mm
  • Mass Scope of Workpiece：<900kg
  • Type：Strength Testing Machine
  • Maxcapacity：100,200,500n:1kn
  • Accuracy Grade：1
  • Load Way：Electronic Load

Base Info

  • Model NO.：GW-011A
  • Loading Method：Dynamic Load
  • Display：Digital
  • Control：Manual Control
  • Weight：100-500Kg
  • Power Source：AC220V
  • Oil Cylinder Position：Electric Control
  • Packaging：Wooden Case
  • Export Markets：Global
  • Model No：Gw-010A
  • Print：Print The Test Result
  • Capacity：100n to 1kn
  • Accuracy：+,-1%
  • Testing Stroke：0-800mm
  • Test Speed：0-500mm,Min
  • Motor：AC Motor with Variable
  • Power：AC 220V 50,60Hz
  • Transport Package：Standard Export Safety Packing
  • Specification：50*50*170cm
  • Trademark：Great Win
  • Origin：China
  • HS Code：9024800000
  • Production Capacity：500 Pieces,Year

Description

Load weight0.25 high-precision force sensor --- NTS (original import). Capacity selection100N 200N 500N1000N 2000N 500KG is available. Accuracy level0.25Test force test range0.2% to 100% FS. Power accuracy±0.25%Power decomposition1/300000. Power magnificationX1, X2, X5, X10, X20, X50, X100, etc. Automatic shift switchingDisplacement indication erro±1% of the value of the whole process. Displacement resolution0.00004mm. Motor function0.4KWTest width40 width / interval / manual take pointWalking space1500mmStroke Resolution0.00004mmExtensometer Resolution0.0001 mmVoltageAC 220V


•Standard for:
ISO7500/1, ISO 20345-2011, JJG475-88, ASTME4, DIN5122, JISB7721/B7733, EN1002-2, BS1610,
CNS9471/9470, GB/T532-2008, GJB2589.3

•Attached accessories:

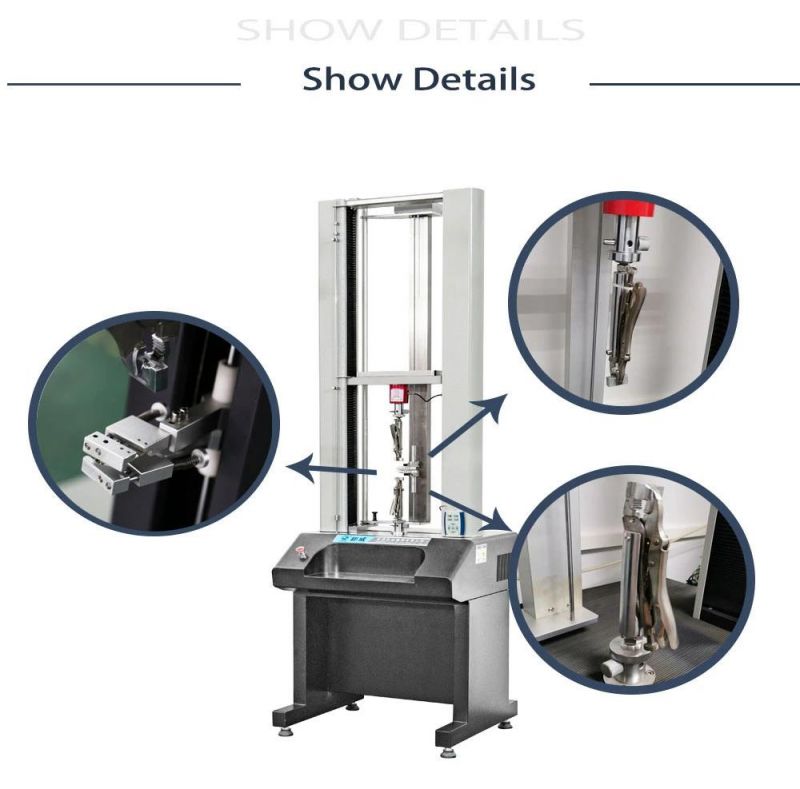

3 sets of grips (GW-G: Pliers grips; GW-O: Leather tear grips; GW-C: Elastomeric grips)
2 die moulds

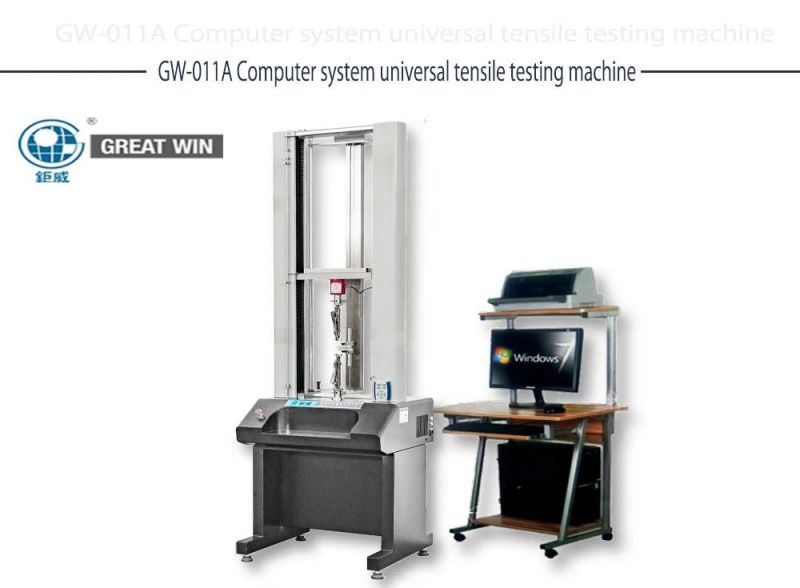

Lenovo business PC with 17 inch screen, software CD, Canon printer (for computer desk, customer prepared by customers. )
We will held the responsibility for the situation evidenced our fault. Such as short delivery, improper packing and product quality. Other wise, in the circumstances, we are apparently not liable for the damage, that's all right for us to help you lodge the claim against the shipping comapny if you are inconvenient.
ISO7500/1 Computer-Type Plastic Leather Rubber Universal Testing Machine (GW-011A)
ISO7500/1 Computer-Type Plastic Leather Rubber Universal Testing Machine (GW-011A)
ISO7500/1 Computer-Type Plastic Leather Rubber Universal Testing Machine (GW-011A)ISO7500/1 Computer-Type Plastic Leather Rubber Universal Testing Machine (GW-011A)ISO7500/1 Computer-Type Plastic Leather Rubber Universal Testing Machine (GW-011A)ISO7500/1 Computer-Type Plastic Leather Rubber Universal Testing Machine (GW-011A)ISO7500/1 Computer-Type Plastic Leather Rubber Universal Testing Machine (GW-011A)ISO7500/1 Computer-Type Plastic Leather Rubber Universal Testing Machine (GW-011A)ISO7500/1 Computer-Type Plastic Leather Rubber Universal Testing Machine (GW-011A)ISO7500/1 Computer-Type Plastic Leather Rubber Universal Testing Machine (GW-011A)
What about the product quality?
For our products, each instrument must be carried out 100% quality calibration and test when delivery goods. With CE certificate, we are very confident in our products, and we will pack them with safety wooden case to protect the machine when transport oversea.

What about usage of the machine?
We will also give your professional guidance(Product operating manual and video), each products comes with a USB flash drive which have all the details.

What about warranty?
Guarantee one years( if the parts damage within one year, we can replace the part for free)
If customer need any technical support, we can help them solve their problem through email, video meeting. We also can provide door to door service, but customer need to bear the travel fees.

What about standards support?
We are strictly following different international standards such as EN, ISO, ASTM, AATC, JIS, GB ect, and had been recognized by SATRA, CSA international standard agency.
