• Model NO.：md-pt3018
• Power Source：AC 85V-265V
• Weight：〉10Kg
• Installation：Portable Precise
• Customized：Non-Customized
• Transport Package：Plywood
• Specification：30kg
• Trademark：minder-hightech
• Origin：Guangzhou
• HS Code：8015809090
• Production Capacity：50000,Year

Basic Info.

Model NO. md-pt3018 Power Source AC 85V-265V Weight 〉10Kg Installation Portable Precise Customized Non-Customized Transport Package Plywood Specification 30kg Trademark minder-hightech Origin Guangzhou HS Code 8015809090 Production Capacity 50000/Year

Product Description

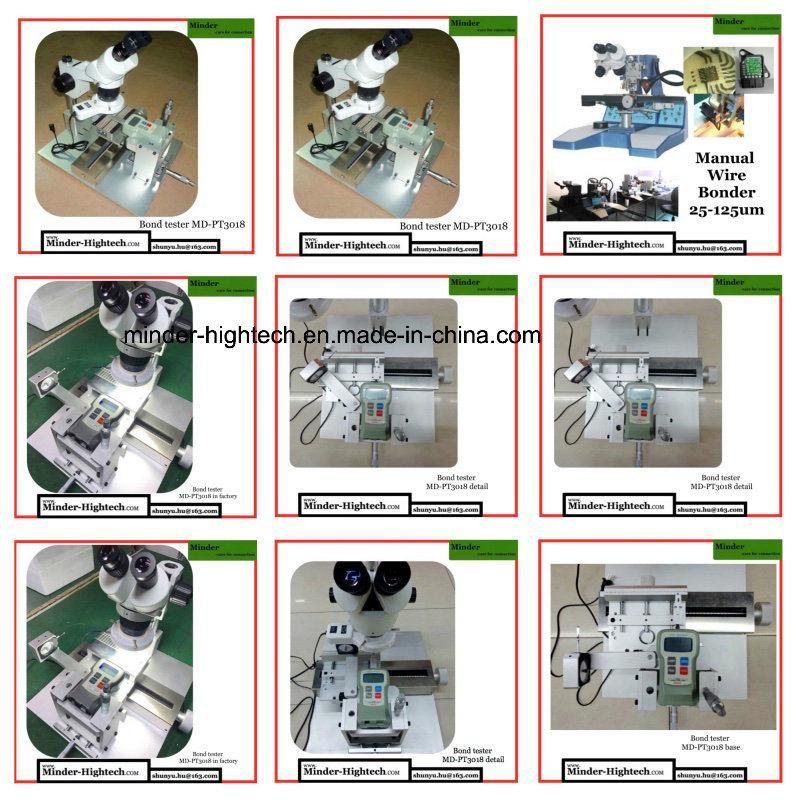

Gold wire bond tester md-pt3018



Introduction:

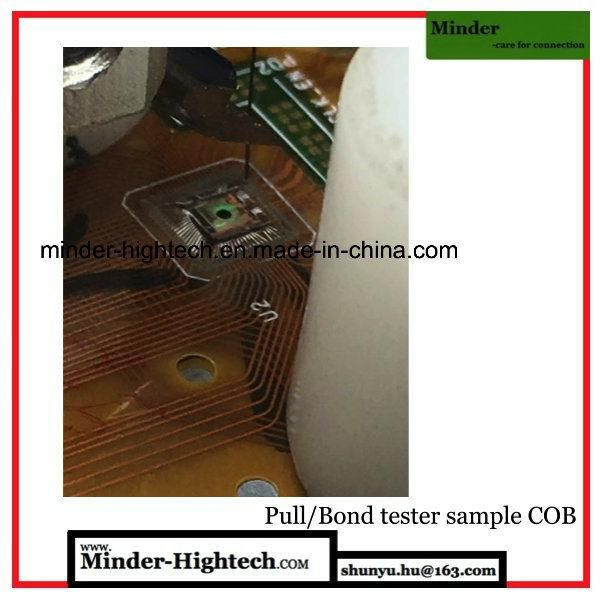

This pull bonder tester is designed for testing the pull strength of the wire bonded on the chip and the push strength of the gold ball on the chip and the die bonding strength(COB).

Specification:

• Dimension:350mm*400mm*500mm
• Power in:220V
• Power:5W
• Microscope:15/30X OR 20/40X
• Push strength range:0-5000G(accuracy: 0.001KG)Meter brand:SP
• Pull strength range:0-30G(accuracy:1G)Meter brand:DESK
• Jig:depend on product(standard jig: COB, DIP,SMD,High power LED)
• Precision lead screw:stroke:200MM
• Micrometer:0-25MM(2 pcs)
• Precision slide:4PCS
• Weight:30kg

Operation:

1,put the product to the jig;

2,adjust the meters to zero;

3, under the microscope, turn the hand wheel slowly, so to push the product to close to the meters;

 4, align the probe or hook on the meter to the gold ball or wire.

5, turn the micrometer slowly, the meter can get a value of the strength. be careful of the strength range of the meter!

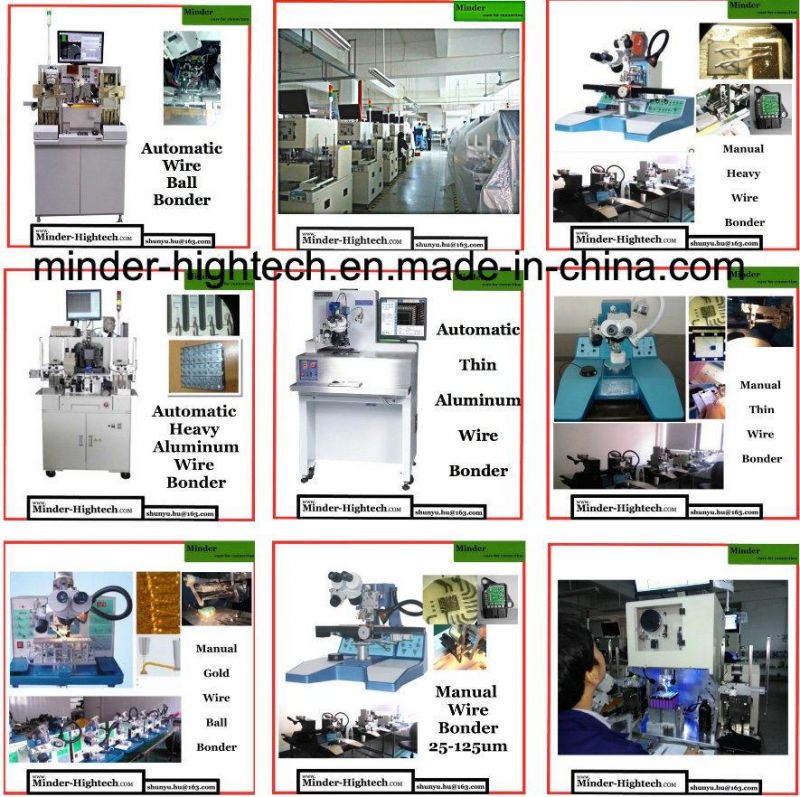

Related other wire bonders:

----------------------------------------------------------------------------------------------------------------------------------------------------------------
