• Model NO.：JCX-820
• Loading Method：0
• Display：LCD
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：0
• Transport Package：Wooden Case
• Specification：860*750*1130mm
• Trademark：Minder
• Origin：Guangzhou-Guangdong
• Production Capacity：100 Sets,Months

Basic Info.

Model NO. JCX-820 Loading Method 0 Display LCD Control Computer Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position 0 Transport Package Wooden Case Specification 860*750*1130mm Trademark Minder Origin Guangzhou-Guangdong Production Capacity 100 Sets/Months

Product Description

Introduction to Functions

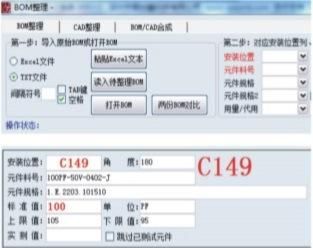

Automatic Generation of Detection Program:

The system automatically identifies customer BOM files and CAD location maps without modifying data.



Automatic judgment result:

The system automatically switches the test gear, automatically reads the value and compares it with the BOM, and automatically determines PASS or NG.

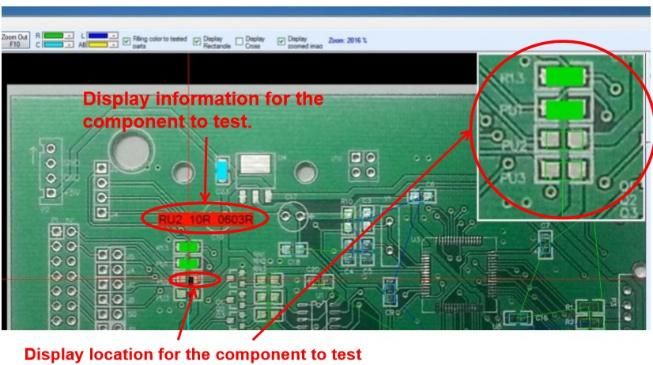

Component search:

 Support a variety of search methods, such as displaying or searching for undetected components, NG components, a certain item number, etc.



Silk screen, direction, polarity automatic identification:

 For components such as chips, diodes and screen printing resistors, the silk screen, direction and polarity (optional) can be automatically determined by the optical system.



Sample function:

 Standard sample storage, testing the same substrate without re-importing the data, can be directly used in the system.

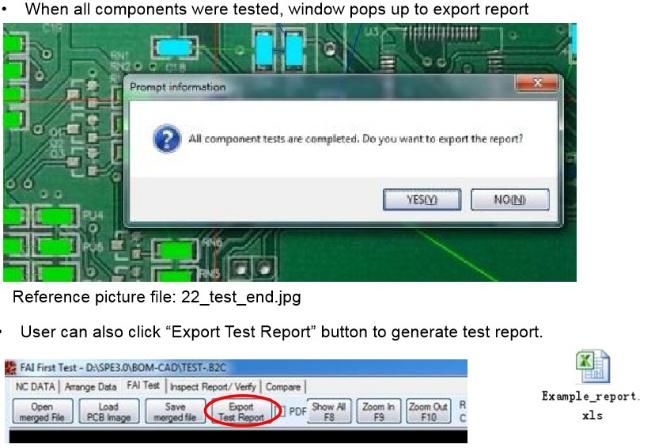

Report function:

After the test is completed, the test report can be automatically generated, and equipped with component images, PCBA related information, reports can be archived and printed.

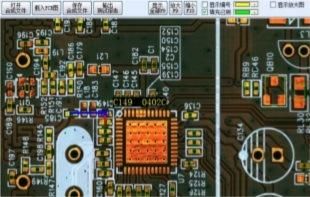

Process diagram function:

Automatically generate process maps, different components automatically fill colors, display the bit number and specification value respectively, and output images and PDF files.
