Tester Test Electronic Universal Fabric Tensile Strength Testing Machine

Qingdao Evertech Industry Co., Ltd.
  • Max Diameter of Workpiece：<500mm
  • Mass Scope of Workpiece：<900kg
  • Type：Tensile Testing Machine
  • Maxcapacity：1kn 2kn 3kn 5kn
  • Accuracy Grade：0.5
  • Load Way：Mechanical Load

Base Info

  • Model NO.：HD-B604-S
  • Loading Method：Dynamic Load
  • Display：Digital
  • Control：Manual Control
  • Weight：100-500Kg
  • Power Source：AC220V
  • Oil Cylinder Position：Under
  • Certificate：ISO 1798: Tensile Test
  • Frame Capacity：2000kg
  • Software：TM 2101
  • Control System：PC with Windows 7 System
  • Motor：Panasonic Servo Motor
  • Force Reading：Kgf, Ibf, N, Kn, T etc
  • Ertical Test Space：1200mm Including Fixture
  • Transport Package：Each Set Protected with Resin Fiber and PP Film
  • Specification：Electronic, 1 phase, 220V ,50HZ
  • Trademark：Evertech
  • Origin：Shandong, China (Mainland)
  • HS Code：84778000
  • Production Capacity：200 Set,Sets Per Month

Description

Item

Description

Frame capacity

2000kg

Load cell brand

Germany brand load cell for high accuracy

2000kg (500,1000kg are optional)

Load accuracy

0.5% F.S

Control system

PC with windows 7 system

Motor

Panasonic servo motor w/AC variable speed drive system, high-precision mechanical ball screw rod

Force reading

kgf, Ibf, N, KN, T etc

Vertical test space

1200mm including fixture

Horizontal test space

≤400mm

Test speed

0.1~500mm/min (adjustable)

Software

TM 2101

Curves display

Load- elongation, Elongation-time, Time-elongation, Stress-strain

Data display

Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc…

Safety features

E-Stop

Over-load protection

Upper and lower limit switches

Load sensor with automatic retreat

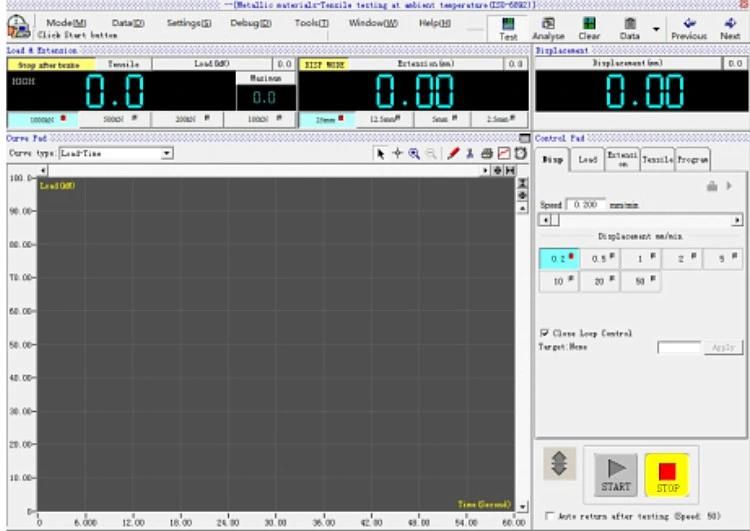

Software:
The TM2101 measurement and control system is designed purposely for microcomputer controlled electronic universal testing machine, microcomputer controlled universal hydraulic testing machine and microcomputer controlled compress testing machine, used for tension, compress, bend, shear, tearing andpeel test. With the personal computer and interface plate, it could collect, save, process and print test result. Further it can calculate multiple parameters, i.e. maximum force, yield strength, average peel force maximum deformation, yielding point and elastic modulus; this system is featured in curve process, multi-sensor support, image interface, flexible data process and powerful system function.
Tester Test Electronic Universal Fabric Tensile Strength Testing MachineCompany Information

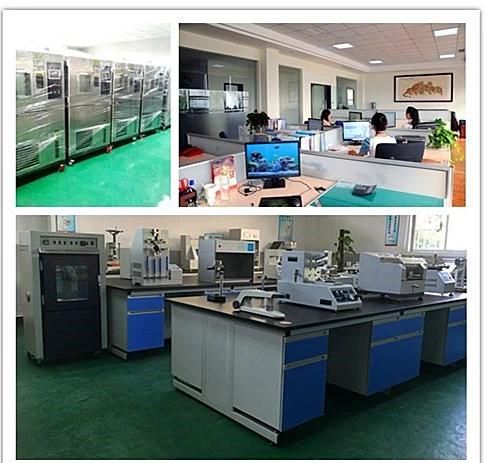

Our company Introduction:

Qingdao Evertech is a professional manufacturer of various kinds of testing equipments over 24 years. Evertech A products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.

Tester Test Electronic Universal Fabric Tensile Strength Testing Machine
Tester Test Electronic Universal Fabric Tensile Strength Testing Machine
Tester Test Electronic Universal Fabric Tensile Strength Testing MachineOur Services

Evertech Equipment Service:

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.

Onsite Service:

1.Device installation; 2.Equipment Operation Test Technology training;3.Equipment Calibration;4.Daily maintenance and maintenance of equipment

Free technical training for visiting factories

24-hour Online contact

Free software upgrades

Free information:

1.Product Instruction;2.Product operation instruction/video;3.Experiment Test (test application, test report)

Device Problem Handling:

1. Social media 24 hours online communication;2. Mail Seamless Docking;3. Video Conferencing;4. Artificial free door-to-door service

Packaging & Shipping



Packaging & Shipping

Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case.


FAQ

Why choose us?

1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.



2.Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your problem controller freely, Free replacement parts, even it's not from our factory's. What you need to do is to send us the controller.We can offer operation video and English operation muanual. We can provide video-con
