• Model NO.：HJ-4
• Power Source：AC220V
• Supply Voltage：220 Vpositive or Negative 10%
• Frequency Range：0-999999
• Speed Range：5-60 Times,Minute
• Stroke Adjustment Range：0-80mm
• Machine Size：500×450×350mm
• Transport Package：Fumigation-Free Standard Export Wooden Box
• Trademark：Hongjin
• Origin：China
• Production Capacity：1000 Sets, Month

Basic Info.

Model NO. HJ-4 Power Source AC220V Supply Voltage 220 Vpositive or Negative 10% Frequency Range 0-999999 Speed Range 5-60 Times/Minute Stroke Adjustment Range 0-80mm Machine Size 500×450×350mm Transport Package Fumigation-Free Standard Export Wooden Box Trademark Hongjin Origin China Production Capacity 1000 Sets/ Month

Product Description

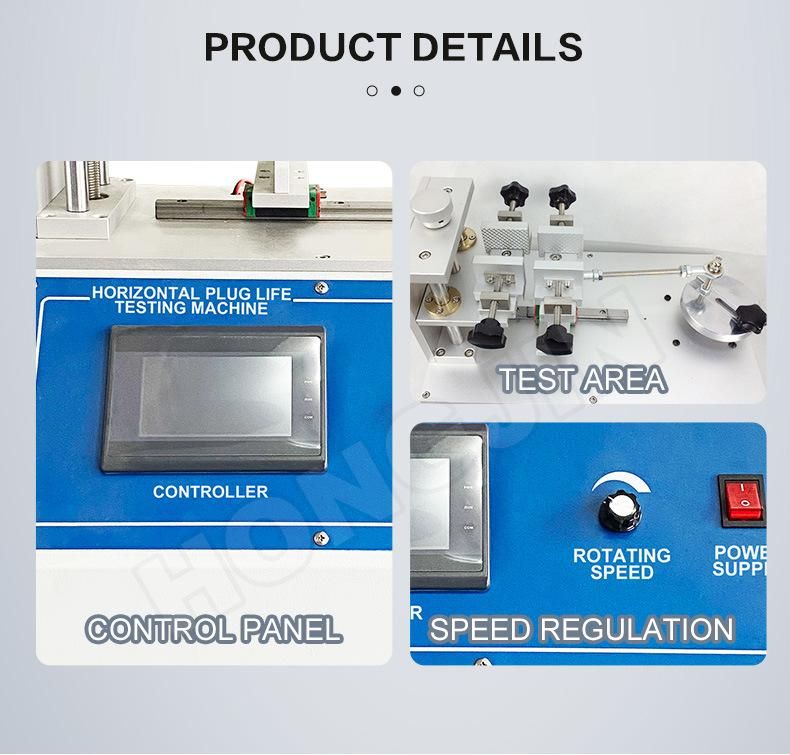

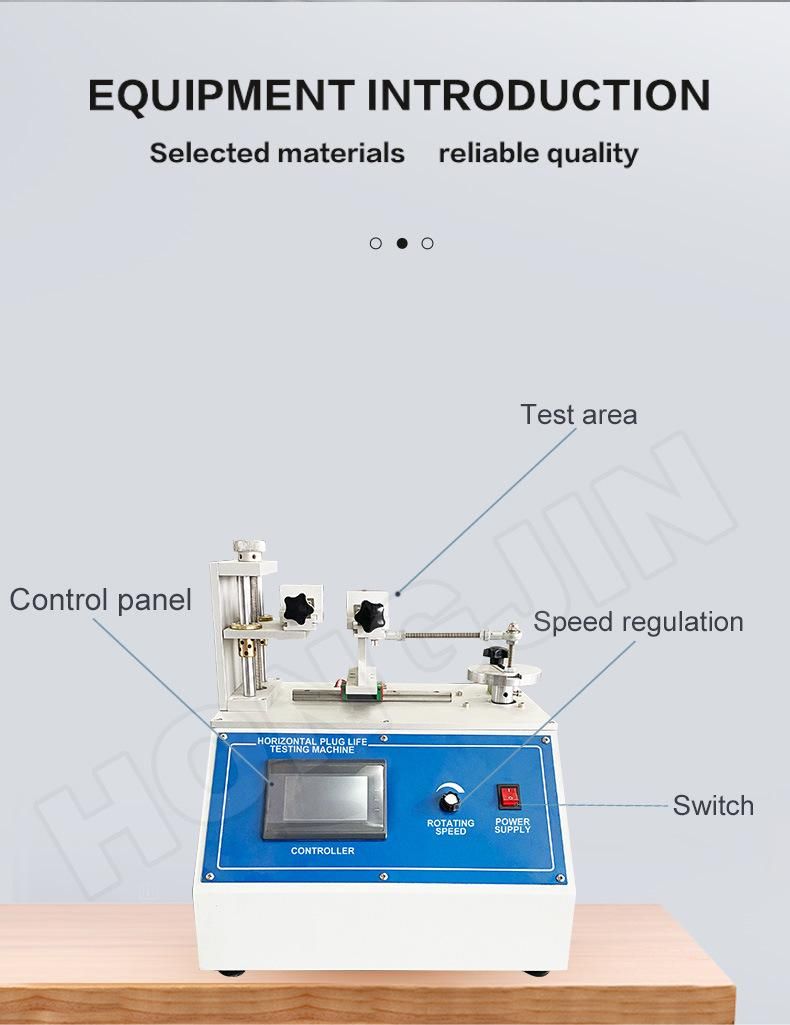

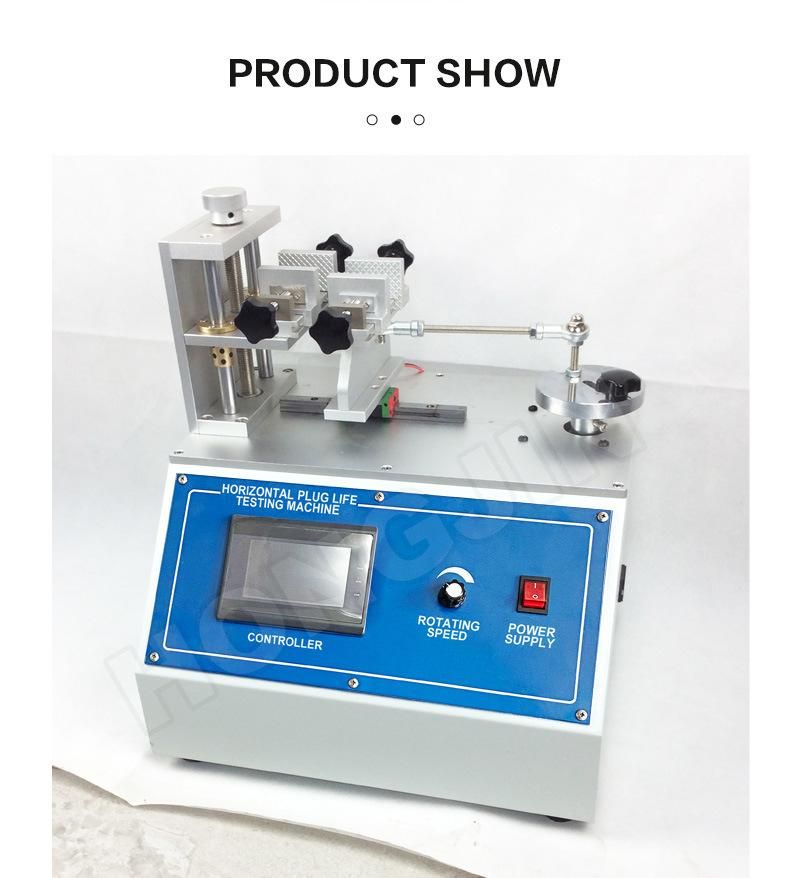

The plug-in life testing machine is suitable for various connector plug-in tests. The speed stroke is adjustable. The LCD screen displays the speed value, the conduction function, the set counting function, and the number of shutdowns is reached. The structure is beautiful and generous.

The plug-in life testing machine can be used for pin headers, female headers, simple horns, long ear horns, crimping heads, WAFER, round hole IC sockets and USB cables (USB3.0), HDMI high-definition cables, Display cables, DVI Connecting cables, VGA cables and other computer peripheral cables, plugging and unplugging tests for various connectors of various types of terminals, to test the life of the product. The speed pull stroke is adjustable, and the required number of times can be set. When the number reaches the set value, the work will stop automatically. When working, it can be unattended and is a very cost-effective machine.

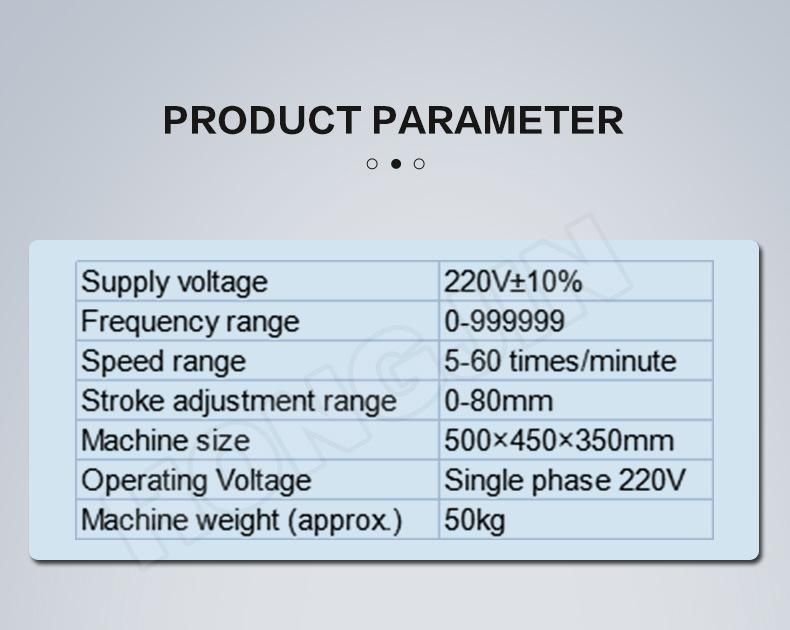

Supply voltage	220V±10%
Frequency range	0-999999
Speed range	5-60 times/minute
Stroke adjustment range	0-80mm
Machine size	500×450×350mm
Operating Voltage	Single phase 220V
Machine weight (approx.)	50kg

Automotive Connector Insertion Force Test Machine
Features:
1.All the testing informations are setting by the computer and it can automatically store: testing condition,test result,(load-displacement),curve,life decay curve and automatically generate reports.
2. High precise:Load resolution:0.01gf,Displacement:0.001mm
3. Adopting high precision explosion Load Cell,Repeated errors:0.01%
4. High stability: adopt Japan Panasonic servo motor drive and no space, no ground ball screw drive, can eliminate noise and resonance.
5.Can enter the upper and lower limit conditions and  automatically rebel the test results Passed or Fail, the maximum, minimum, average and standard deviation, etc.
