• Model NO.：gbds-y
• Accuracy Grade：0.5
• Load Way：Manual Job
• Loading Method：Static Load
• Display：Dial Type
• Control：Manual Control
• Weight：0-100Kg
• Power Source：Mechanical
• Oil Cylinder Position：No with Oil Cylinder
• Usage：for Glass Bottle Jar Testing
• Opeartion Way：Manual Type
• Calibration：Before The Package
• Brand Name：OEM Accept
• Transport Package：Plywood Case
• Specification：610mm× 450mm× 880mm
• Trademark：CHENJI or OEM
• Origin：China Jinan or Others
• HS Code：9024800000
• Production Capacity：50000set Per Year

Basic Info.

Model NO. gbds-y Accuracy Grade 0.5 Load Way Manual Job Loading Method Static Load Display Dial Type Control Manual Control Weight 0-100Kg Power Source Mechanical Oil Cylinder Position No with Oil Cylinder Usage for Glass Bottle Jar Testing Opeartion Way Manual Type Calibration Before The Package Brand Name OEM Accept Transport Package Plywood Case Specification 610mm× 450mm× 880mm Trademark CHENJI or OEM Origin China Jinan or Others HS Code 9024800000 Production Capacity 50000set Per Year

Product Description

Glass Bottle quality checking use impact testing machine manual type
beer bottle mechanical strength impact tester price

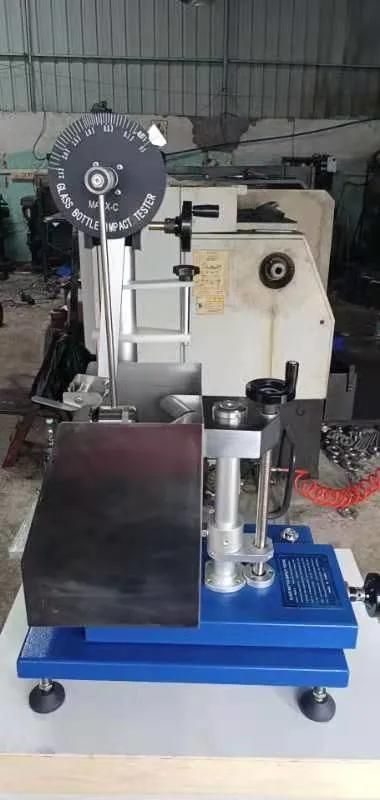

  Glass Bottle Jar Manual Type Impact Tester .

The Dial Display Name canbe customized into English Name

Introduction
JBDS-Y glass bottle impact tester is used to measure the impact strength of various glass bottles, In accordance with the national standard GB6552-2015 Glass glass container mechanical impact test method requirements for testing methods, can complete the national standard specified by the passing and incremental tests.

Main Technical Parameter:
1. Impact Energy Area:0~2.5J
2. Resolution:0.05J(0-1.0J ), 0.1J(1.0-2.5J)
3. Measure Accuracy: ≤1.5%FS (Percentage of accuracy and full range)
4. Measuring Diameter:φ 20~165mm
5. Impact Height Area:20~180mm
6. Swing bar deflection Angle range:0~120°
7. Size:450mm×300mm×650mm ??
(Dimension:610mm×450mm×880mm Package Size )---
8. N.Weight :38KGS  ( Gross Weight: 38KGS after package  )
