• Model NO.：UTM-5
• Loading Method：Static Load
• Display：Computer Screen Digital Display
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC380V
• Oil Cylinder Position：Servo Motor Control
• Product Name：Computerized Material Lab Testing Machine
• Function 1：Tensile Testing Machine
• Function 2：Compression Testing Machine
• Function 3：Benting Testing Machine
• Function 4：Yield Strength Testing Machine
• Function 5：Deformation Testing Machine
• Function 6：Auto Testing Machine
• Function 7：Process Testing Machine
• Crosshead Travel：1100mm
• Effective Tensile Space：900mm
• Load Resolution：1,300000
• Deformation Resolution：1,500000
• Load Control Speed：0.01 - 50 Kn,S
• Transport Package：Plywood Box
• Specification：Tensile testing, compress testing, bending testing
• Trademark：EBP
• Origin：Zhejiang, China
• HS Code：9024101000
• Production Capacity：90 Sets Per Month

Basic Info.

Model NO. UTM-5 Loading Method Static Load Display Computer Screen Digital Display Control Computer Control Weight 100-500Kg Power Source AC380V Oil Cylinder Position Servo Motor Control Product Name Computerized Material Lab Testing Machine Function 1 Tensile Testing Machine Function 2 Compression Testing Machine Function 3 Benting Testing Machine Function 4 Yield Strength Testing Machine Function 5 Deformation Testing Machine Function 6 Auto Testing Machine Function 7 Process Testing Machine Crosshead Travel 1100mm Effective Tensile Space 900mm Load Resolution 1/300000 Deformation Resolution 1/500000 Load Control Speed 0.01 - 50 Kn/S Transport Package Plywood Box Specification Tensile testing, compress testing, bending testing Trademark EBP Origin Zhejiang, China HS Code 9024101000 Production Capacity 90 Sets Per Month

Product Description

 New product Single Column Computerized Universal Testing Machine

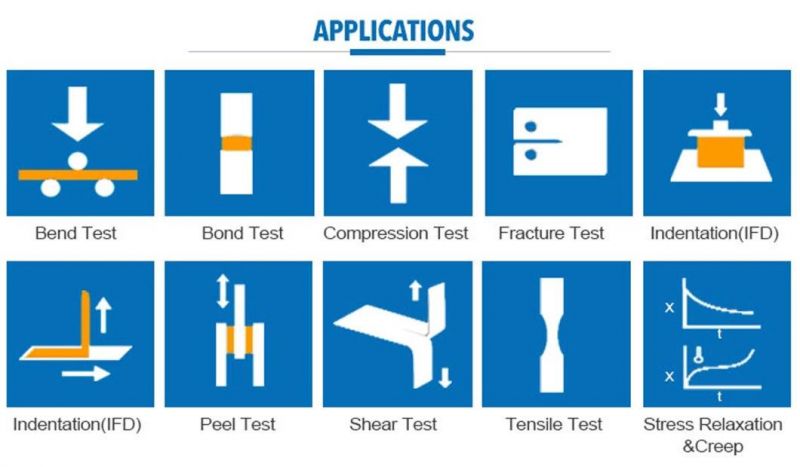

1.Application:
Single Column Test Machines are ideal for tension and compression applications where test force requirements are up to 5 kN with speeds available to 1000 mm/min. This series is required for high travel or high extension test applications such as rubber tensile testing and tensile testing of medical devices such as catheters.

2.Standard:
2.1 ISO 6892-1:2016:Metallic materials - Tensile testing as universal test
2.2 ASTM E8 / E8M - 16a
Standard Test Methods for Tension Testing of Metallic Materials
2.3 ISO 75001 Part 1: Tension/compression testing machines -- Calibration and verification of the force-measuring system
2.4 ASTM E4 - 16 Standard Practices for Force Verification of Testing Machines

3.Main Technical Parameters:

Model	UTM-5
Max. load	5KN
Structure	Single column
Control method	Computer control
Load accuracy	Class 1 (class 0.5 optional)
Load range	1%-100% FS (0.4%-100% FS optional)
Deformation measurement range	0.2%-100%
Displacement Resolution	0.01mm
Test speed	0.05-1000mm/min
Crosshead travel space	1100mm
Tensile space	900mm
Power supply	AC220V±10%,50Hz
Grips	Corrugated grip
Dimension	450*400*1680mm
Extensometer	Electronic Extensometer optional
Weight	around 110 kg

4. Main Unit Feature:
4.1 Automatic stop: After the sample broken, automatic stop.
 4. 2 Display: Real-time display testing force, displacement, testing speed, peak value, testing status on one LCD.
 4.3 Automatic return: automatic return to initial position when testing finished.
 4.4. Limiting protection: Program control and Mechanical limiting protection.
 4.5 High accuracy photoelectric encoder to measure the displacement
4.6 High accuracy load cell to measure the test load
 4.7 Ball screw no backlash to guarantee the low noise and high driving efficiency
4.8 Thousands of test fixture can be used according to different test request
5. Data Acquisition System
5.1 The data acquisition system of machine consists of two high precision A/D conversion channel and the maximum resolution should be 1/300000 (minimum)
5.2 USB powered data -logger with USB 2.0 and RS- 232 pc interface, 5-keys joystick, 2MB RAM, Automatic recognition facility, Internal signal generator and 12-bit conversion resolution

6. Data Acquisition system
61. The data acquisition system of machine consists of two high precision A/D conversion channel and the maximum resolution should be 1/300000 (minimum)
6.2. USB powered data -logger with USB 2.0 and RS- 232 pc interface, 5-keys joystick, 2MB RAM, Automatic recognition facility, Internal signal generator and 12-bit conversion resolution

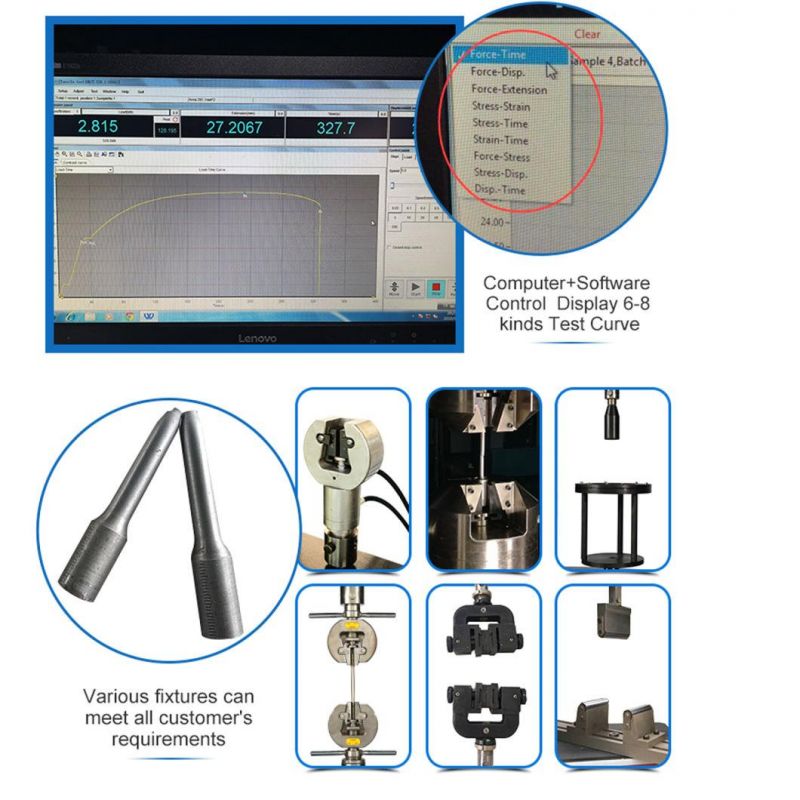

7. Software
7.1 Batch and report processing program facility in doc and exl format
7.2 The software is fully compliance with the corresponding international standards like ISO, ASTM and GB standards
