• Model NO.：uts1030
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Name：Optical Spectrum Analyzer
• Range：9kHz~3.6GHz
• Resolution：1Hz
• Product Color：Red and Grey
• Screen：6.5 Inches Large High-Definition
• Accuracy：1%
• MOQ：1
• Product Size：182mm (W)×288mm(H) ×142mm(D)
• Keyword：Spectrum Analyzer
• Transport Package：Wooden Box with Foam Inside
• Specification：CE,ISO,IEC
• Trademark：HuaZheng
• Origin：Hebei, China
• HS Code：9030409000
• Production Capacity：1000 PCS,Month

SpecificationUTS1030Spectrum MeasurementRange9kHz~3.6GHzResolution 1HzAccuracy±(Frequency Marker Readout*Frequency Reference Accuracy +1%*Span 10%*RBW+0.5*[Span/(Sweep Points-1)]+1Hz)Internal Reference(10MHz)Aging Rate <1ppm/year;  Stability Over Temperature  <0.5ppm(15ºC ~ 35ºC)Resolution Bandwidth (RBW)Range10Hz~3MHz, Customized down to: 1Hz~10HzElectability(60dB/3dB)RBW≤500kHz:<5:1 Typical (Digital implementation,next to Gaussian shape)AccuracyRBW≤500kHz :<5% TypicalVideo Bandwidth10Hz~3MHzAverage Noise Level (1Hz RBW, 0dB RF Attenuator )Preamplifier Off100kHz~1MHz:<-100dBm-3×(f/100kHz)dB;1MHz~10MHz:<-130dBm;
10MHz~1GHz:<-135dBm;1GHz~3.6GHz:<-130dBmPreamplifier On100kHz~1MHz:<-120dBm-3×(f/100kHz)dB;  1MHz~10MHz:<-150dBm;
10MHz~1GHz:<-155dBm;  1GHz~3.6GHz:<-148dBmPhase Noise(fc=500MHz)Offset 30kHz-90dBc/HzOffset 100kHz-100dBc/HzOffset 1MHz-110dBc/HzSweep TimeSpan  (100Hz≤SPAN≤3.6GHz)10ms to 3000sZero Span1ms to 3000sSweep ModesContinuous, SingleTriggerTrigger SourceAUTO,Video,EXTOffset 100kHz5V TTL Level (Typical )Frequency CounterResolution 1Hz,10Hz,100Hz,1kHzUncertainty Frequency Readout x Frequency Reference Progress+Counter ResolutionAmplitude Accuracy (20ºC~30ºC)Overall  Amplitude Accuracy(90%)±1.5dB;  Input Signal Range:  -50dBm ~ 0dBmAmplitude Max. Safe Input  LevelAverage Continuous Power: +27dBmMax. Input DC Voltage50VdcInput Attenuator  Range0~39dB, in 3dB step1dB  Compression+7dBmInternal Memory128MBResidual ResponseThird-Order Intercept(TOI)>30MHz:13dBmSecond Harmonic Intercept(SHI)+30dBmInput Related Spurious<-60dBmResidual Response<-85dBmTracking Generator (Optional)Frequency Range100kHz to 1.5GHzOutput Power-30dBm ~ 0dBm, in 1dB stepOutput Flatness±3dBInput/OutputRF InputSMA Type,Negative (50Ω)USBUSB Host,USB DeviceLAN10/100 Base-T, RJ-45 ConnectorAM/FM Demodulation HeadsetReference Input/Output10MHz, BNC Negative, Input: 0dBm ~  +10dBm;Ouput: 0dBm±2dBGeneral  CharacteristicsPowerLi-ion Battery: 7.4V 6600mAh;   DC Adapter: 100-240VAC 50/60Hz 1.5ADisplay6.5 Inches  TFT  LCD,  640×480Product ColorRed and GreyProduct Net Weight3.0 KgProduct Size182mm (W)×288mm(H) ×142mm(D)Standard AccessoriesDC Adapter,N/SMA Convertor,N/BNC Convertor, RF Cable, AntennaStandard Individual PackingGift Box,  English ManuaStandard Quantity Per Carton1 PCStandard Carton Measurement200mm × 300mm × 150mmStandard Carton Cross Weight7 kg

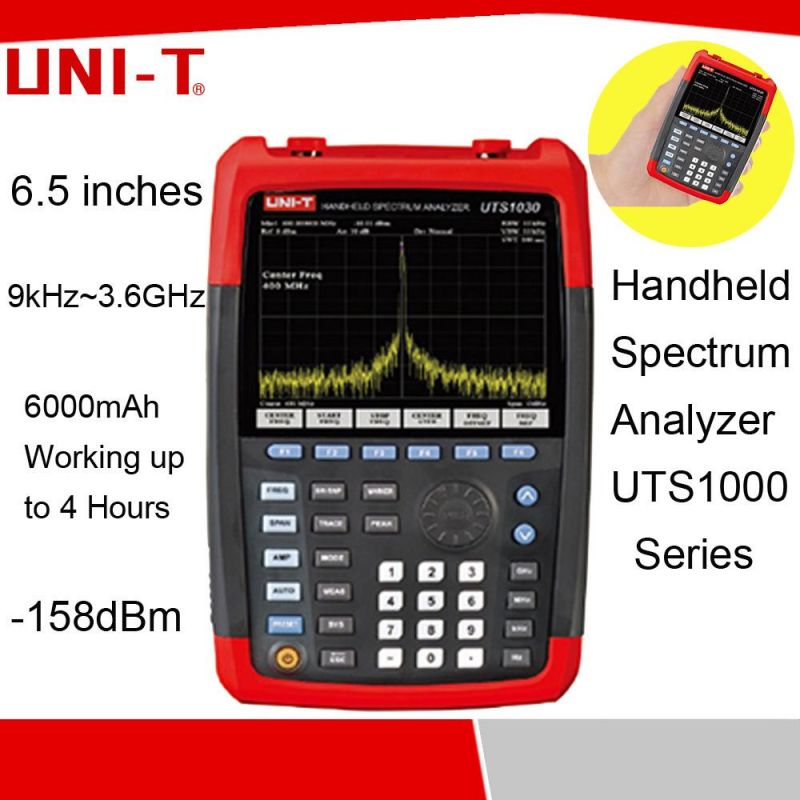

III. Detailed Photos

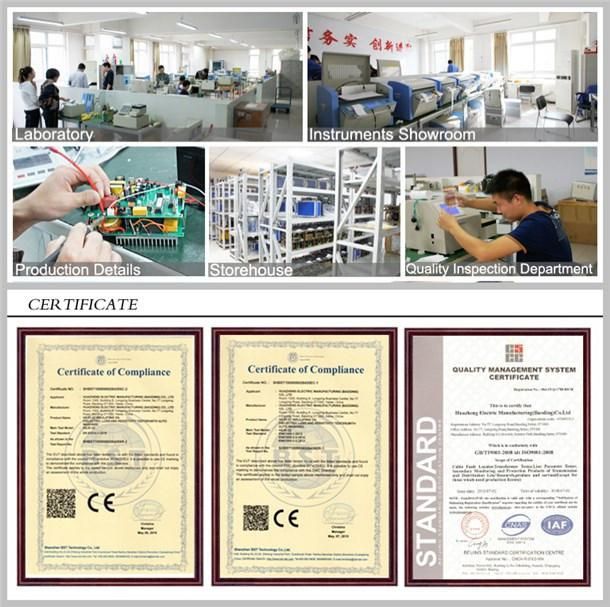

IV. Company Information

HuaZheng Electric Manufacturing (Baoding) Co., Ltd is the supplier of the State Grid in China. It means we are the supplier of the Chinese Government. And our products spread throughout the whole China.

What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malaysia, Vietnam and so on.

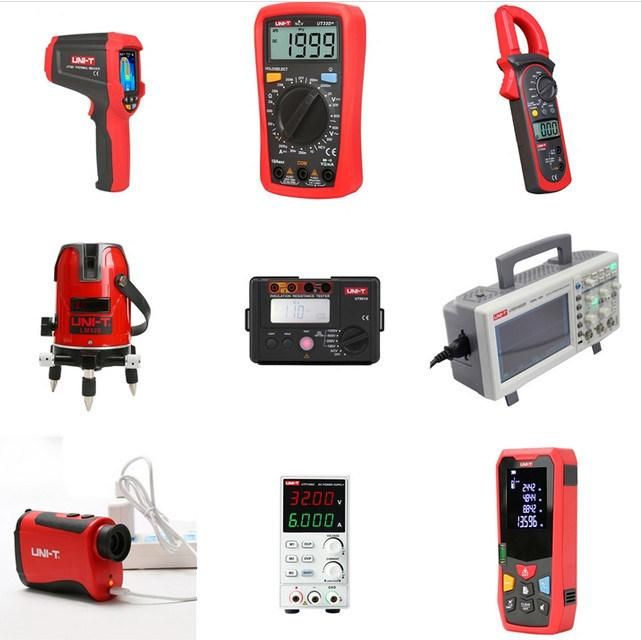

Our main products are Digital Multimeter, Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.
