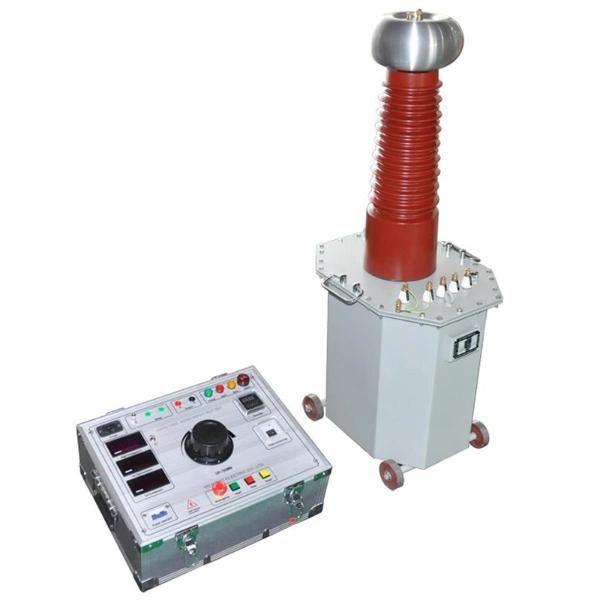

GDYD-105D 5kVA/100kVAC (100kVAC/DC,50mA) AC/DC Hipot Test Set


Application
AC hi-pot testing is the effective and direct way to test insulation strength for electrical
equipment, apparatus, or machines. It checks dangerous flaws which assure
electrical equipment continuous working.
Typical applications include testing of transformers, switchgear, cables, capacitors,
aerial motors platforms, hot sticks bucket bricks, vacuum bottles and other related
equipment like vacuum interrupters, blankets, ropes, gloves, hydraulics hose,
instruments transformers generators.

Features

1. Digital display panel mounted controls & indicators with easy to read legend.
2. Monitoring high voltage side voltage, low voltage side current and indicator of zero, power, working start, timing.
3. Over-current protection, zero-starting protection, sound and light alarm.
4. Continuously variable output from zero to full voltage.
5. Adjustable over current protection, with trip levels variable from 10 to 110%.
6. With new type time relay, time range is wider (1S ~ 99H).
7. Using the latest current relay, more accurate and reliable.
8. Light weight, small size, easy to move.

Technical Specifications

Input	AC220V ± 10%
Frequency	50Hz ± 1
Output	0-100kV, AC RMS 0-100kV, DC RMS
Rating	100%Rated-1minute, 50%-continuous
Capacity	5kVA (based on selectable)
HV Source	Insulation oil (Oil type testing transformer)
Output control	Manual control
Voltage accuracy	≤ 1.5% (F.S)
Current accuracy	≤ 1.5% (F.S)
Timing range	0-99H
Metering	Digital display, kV meter: AC 0-100kV, mA meter: AC 0-50mA
Humidity	85% RH
Environmental temperature	-20ºC~50ºC
Weight	Control Unit: About 20kg Oil testing transformer: About 100kg.

Accessories
Control Unit                                                                 1 piece
Testing transformer (HV unit)                                      1 piece
AC & DC Microammeter & connection cable              2 pcs
Power cord                                                                  1 piece
Metering cable                                                             1 piece
Output cable                                                                1 piece
HV cable                                                                      1 piece
Ground cable                                                               1 piece
Discharge rod                                                              1 piece
Filter capacitor                                                             1 piece
Water resistance                                                          1 piece
User's guide                                                                 1 piece
Factory test report                                                        1 piece
