• Model NO.：STYS-1
• Accuracy Grade：1
• Load Way：No
• Loading Method：No
• Display：Digital
• Control：No
• Weight：45kg
• Power Source：No
• Oil Cylinder Position：No
• Product Name：Digital Liquid Plastic Limit United Device
• Max. Measuring Range：22mm
• Resolution：0.1mm
• Nonlinear Error：Superior Than 2%
• Contact Sensitivity：>10m
• Cone Weight：76g+,-0.1g 100g+,-0.1g
• Cone Angle：30 +,-2
• Measuring Time：5 Second
• Working Voltage：AC220V
• Continuous Working Period：8 Hours
• Transport Package：Wooden Case
• Specification：0.25CBM
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. STYS-1 Accuracy Grade 1 Load Way No Loading Method No Display Digital Control No Weight 45kg Power Source No Oil Cylinder Position No Product Name Digital Liquid Plastic Limit United Device Max. Measuring Range 22mm Resolution 0.1mm Nonlinear Error Superior Than 2% Contact Sensitivity >10m Cone Weight 76g+/-0.1g 100g+/-0.1g Cone Angle 30 +/-2 Measuring Time 5 Second Working Voltage AC220V Continuous Working Period 8 Hours Transport Package Wooden Case Specification 0.25CBM Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

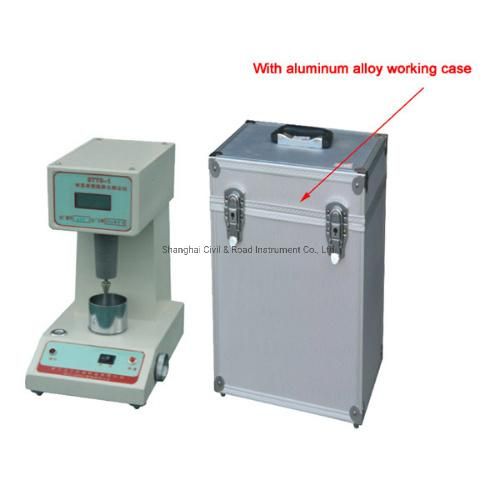

STYS-1 Liquid limit penetrometers And Atterberg Limits

Standard :BS 1337:2, NF P94-052-1

Application: The equipment is used to determine liquid and plastic limits of soil, thus to provide reliable data to classify soil types, calculate natural consistency and plasticity index. Digital display technology is adopted for this machine and automatical measurement can be performed.

Features: Excellent performance, reliable data, and high accuracy, clear direct readings, and convenient operation, high efficiency.
Specification:


Max. measuring range	22mm
Resolution	0.1mm
Nonlinear error	Superior than 2%
Contact sensitivity	>10M
Cone weight	76g+/-0.1g 100g+/-0.1g
Cone angle	30 ° +/-2 °
Measuring Time	5 Second
Working voltage	AC220V±10%
Continuous working period	8 hours
Measurement	24x16x32cm
weight	45kg
