• Model NO.：CTM-01
• HS Code：90248000
• Production Capacity：10000 PCS,Year

Basic Info.

Model NO. CTM-01 HS Code 90248000 Production Capacity 10000 PCS/Year

Product Description

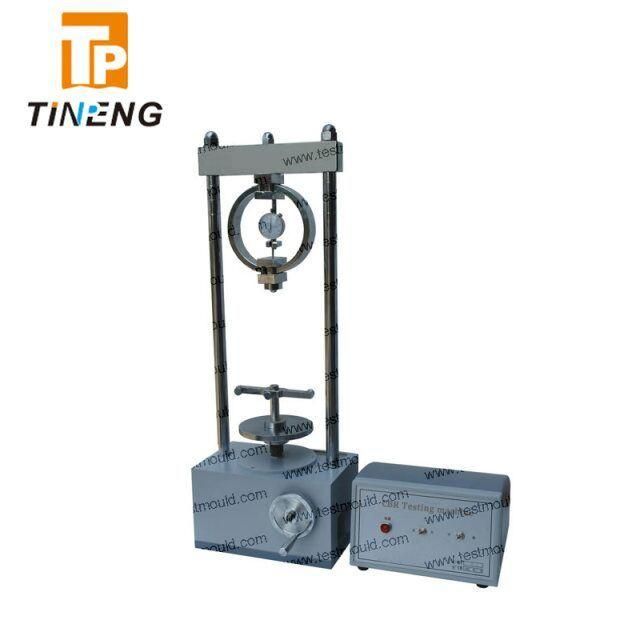

CBR Test Machine

CBR Test Apparatus is suitable for test of soils and mix materials (the grain size of the soil is less than 40mm) compacted with CBR mold so as to confirm the bearing loading ability of pavement, roadbed subcrust as well as material layer of the roadbed to be designed. It consists of a twin column frame, proving ring, penetration bar, loading plate, micrometer, measuring device for swell increment etc.
CTM-01 CBR Test machine

Capacity: 30 KN/50KN (selectable)
Load speed: 1.0 mm/min
Penetration bar: Dia. 50 mm x 100 mm
Platen: Dia. 170 mm
Platen travel: 50 mm
Mold: Dia. 152 mm x 170 mm
Dimension: 310 x 310 x 930 mm
Power: 220 V, 50 Hz
