• Model NO.：GW-027
• Loading Method：Dynamic Load
• Display：Digital
• Control：Manual Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Electric Control
• Packaging：Wooden Case
• Export Markets：Global
• Model No：Gw-027
• Outside Diamerter：108mm
• Inside Diameter：8mm
• Grinding Wheel：Max.45mm
• Center Spacing of Grinding Wheel：63.5mm
• Revolving Speed：60 or 72 Rpm
• Load：250g,500g,1000g
• Power：AC 220V,50Hz
• Transport Package：Standard Export Safety Packing
• Specification：53*32*31CM
• Trademark：Great Win
• Origin：China
• HS Code：9024800000
• Production Capacity：500 Pieces,Year

Basic Info.

Model NO. GW-027 Loading Method Dynamic Load Display Digital Control Manual Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Electric Control Packaging Wooden Case Export Markets Global Model No Gw-027 Outside Diamerter 108mm Inside Diameter 8mm Grinding Wheel Max.45mm Center Spacing of Grinding Wheel 63.5mm Revolving Speed 60 or 72 Rpm Load 250g,500g,1000g Power AC 220V,50Hz Transport Package Standard Export Safety Packing Specification 53*32*31CM Trademark Great Win Origin China HS Code 9024800000 Production Capacity 500 Pieces/Year

Product Description

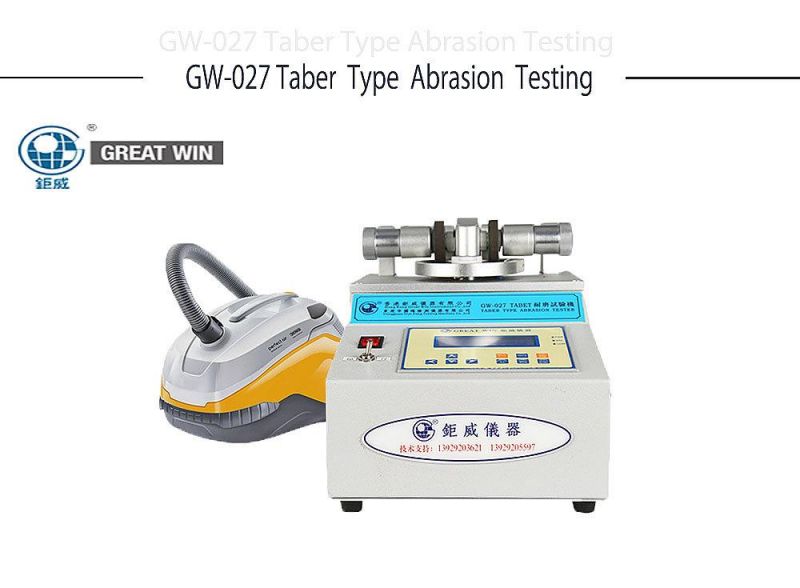

TABER type abrasion testing machine/Crock meter(GW-027 )

•Brief introduction:
This machine is used in leather, cloth, coating, paper, floor tile, plywood, glass, natural rubber abrasion test. Use standard knife cutting specimens, make specimen abraded by a pair of grinding wheels under the specified load. The weight of abrasion loss is the difference of weight for specimens before and after testing.

•Technical Specifications:

Model	GW-027 TABER type abrasion testing machine
Specimen size:	outside diameter¢108mm,inside diameter ¢8mm,3mm(D)
Grinding wheel:	¢2"(max. 45mm),1/2"(W)
Center spacing of Grinding wheel:	63.5mm
Center spacing between grinding wheel and specimen plate:	37~38mm
Revolving speed:	60/72rpm
Load:	250g,500g,1000g
Counter:	LED,0~999.999
Size:	(L×W×H)530×320×310mm+ vacuum cleaner
N.W.:	18kg (not include the vacuum cleaner)
Power:	1∮,220v/50HZ
Coating materials:	CS17
Plywood:	CS32, CS33
Plastic:	CS17,H18,H22
Cloth:	H18,H22 ,CS17

•Standard for:
DIN-53754,53799,53109,52347,TAPPI-T476,ASTM-D1044,D3884,ISO-5470

What about the product quality?
For our products, each instrument must be carried out 100% quality calibration and test when delivery goods. With CE certificate, we are very confident in our products, and we will pack them with safety wooden case to protect the machine when transport oversea.

What about usage of the machine?
We will also give your professional guidance(Product operating manual and video), each products comes with a USB flash drive which have all the details.

What about warranty?
Guarantee one years( if the parts damage within one year, we can replace the part for free)
If customer need any technical support, we can help them solve their problem through email, video meeting. We also can provide door to door service, but customer need to bear the travel fees.

What about standards support?
We are strictly following different international standards such as EN, ISO, ASTM, AATC, JIS, GB ect, and had been recognized by SATRA, CSA international standard agency.
