• Model NO.：HV-10
• Control：Manual Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Transport Package：Plywood
• Specification：520*190*650mm
• Trademark：HST
• Origin：Shangdong, China
• HS Code：9024102000
• Production Capacity：1000

Basic Info.

Model NO. HV-10 Control Manual Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Under Transport Package Plywood Specification 520*190*650mm Trademark HST Origin Shangdong, China HS Code 9024102000 Production Capacity 1000

Product Description

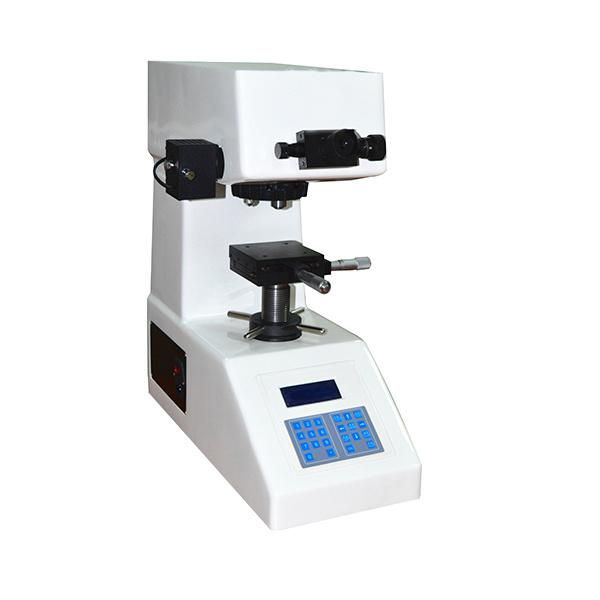

 HV-10 Vickers Hardness Tester

1.Main Features:
HV-10 Vickers Hardness Tester is basic of microscopic hardness tester, this machine adopts LCD
display screen, through the operation panel of hardness or HK each file ruler HV benchmark test
time by choice, the lighting source can do promise regulation.
Operation can be measured D1 eyepiece, D2 value after the direct input, hardness value in LCD
display screen is directly on display.
2.Technical Specifications:

Model	HV-10
Min. Measuring Unit	0.5µm
Test Force	0.3Kgf(2.94N),0.5Kgf(4.9N), 1.0Kgf(9.8N),2.0Kgf(19.6N), 3.0Kgf(29.4N),5.0Kgf(49.0N),10.0Kgf(98.0N)
Max. Height Of Specimen	160mm
Distance Of Indenter To Outer Wall	135mm
Hardness Measuring Range	8~2900HV
Method Of Testing Force Applied	Automatic Loading, Unloading Testing Force
Test Microscope Magnification	200X(Measuring),  100X(Observation)
Duration Time	0~60s
Power Supply	AC220V+5%, 50Hz
Overall Dimension	520*190*650mm
Net Weight	About 40Kg

3.Standard Accessories:

Item	Quantity	Item	Quantity
Weight	3	Vickers Hardness Block	2
"V" Shaped Testing Table	1	Fuse(2A)	2
Circular Testing Table	1	Power Cable	1
Large Testing Table	1	Product Certificate	1
Objective 10X	1	Manual	1
