• Model NO.：HBY-60B
• Loading Method：No
• Display：Digital
• Control：Digital Display
• Weight：400kgs
• Power Source：AC220V
• Oil Cylinder Position：No
• Product Name：Hby-60b Large Capacity Concrete Curing Tank
• Functions：Include Heating, Refrigeration, Spray, Temperature
• Structure：Inner Structure Is Made of Stainless Steel
• Voltage：AC220V, 50Hz
• Compressor Power：125W
• Heating Power：600W
• Humidity：Bigger 95%Rh
• Temperature Range：15c-30c, 1c
• Refrigerating System：Direct Cooling Refrigerator, Coil Evaporator and E
• Humidifier：Ultrasonic Humidifier, Spray Foam Water Molecular
• Working Room：2120X700X1640mm
• Features：Magnetic Valve Adds Water Automatically to The Hum
• Transport Package：Wooden Case
• Specification：2.5CBM
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. HBY-60B Loading Method No Display Digital Control Digital Display Weight 400kgs Power Source AC220V Oil Cylinder Position No Product Name Hby-60b Large Capacity Concrete Curing Tank Functions Include Heating, Refrigeration, Spray, Temperature Structure Inner Structure Is Made of Stainless Steel Voltage AC220V, 50Hz Compressor Power 125W Heating Power 600W Humidity Bigger 95%Rh Temperature Range 15c-30c, 1c Refrigerating System Direct Cooling Refrigerator, Coil Evaporator and E Humidifier Ultrasonic Humidifier, Spray Foam Water Molecular Working Room 2120X700X1640mm Features Magnetic Valve Adds Water Automatically to The Hum Transport Package Wooden Case Specification 2.5CBM Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

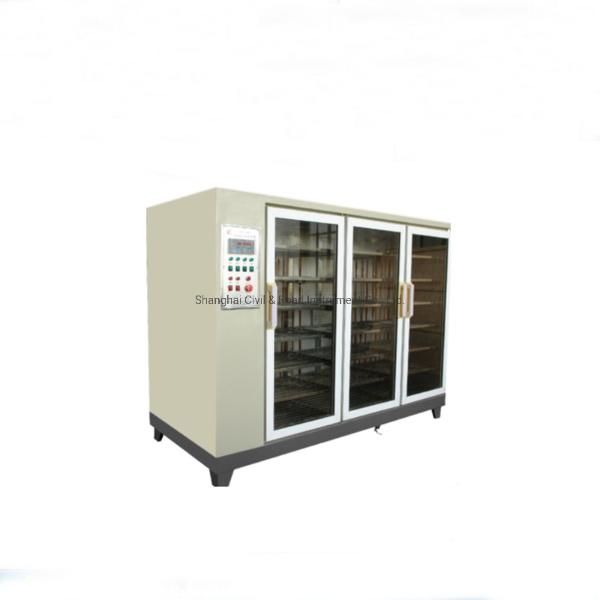

HBY-60B Large Capacity Concrete Curing Tank

Product name	HBY-60B Large Capacity Concrete Curing Tank
Functions	include heating, refrigeration, spray, temperature and humidity controlling.
Structure	Inner structure is made of stainless steel, outer structure is made of high quality cold rolled steel and thermal insulation is polyurethane form. 6 shelves are made of stainless steel. Three-doors design ensures good heat retaining property. Easy observation inside of the cabinet through the glass doors.
Digital control unit	temperature and relative humidity are displayed at all times as well as all the other phases.
Voltage	AC220V, 50HZ
Compressor power	125W
Heating power	600W
Humidity	>95%RH
Temperature range	15ºC-30ºC, ±1ºC
Refrigerating system	direct cooling refrigerator, coil evaporator and exposed condenser; inner fan to help heat exchange and reduce temperature  difference; Heating: U type electric heating tubes;
Humidifier	ultrasonic humidifier, spray foam  water molecular style ensures humidity >95%RH.
Working room	2120X700X1640mm
Features	magnetic valve adds water automatically to the humidifier, uniform temperature and humidity  inside of the cabinet, high precision, no dripping from  cabinet top.
