Portable Digital Ultrasonic Equipment NDT Flaw Detector for Sale

Shandong China Coal Industrial & Mining Supplies Group Co., Ltd.
  • Max Diameter of Workpiece：Flaw Detector
  • Mass Scope of Workpiece：Flaw Detector
  • Type：Flaw Detector
  • Maxcapacity：Flaw Detector
  • Accuracy Grade：Flaw Detector
  • Load Way：Flaw Detector

Base Info

  • Model NO.：Flaw Detector
  • Loading Method：Flaw Detector
  • Display：Digital
  • Control：Flaw Detector
  • Weight：2kg
  • Power Source：Flaw Detector
  • Oil Cylinder Position：Flaw Detector
  • Working Frequency：(0.5-15)MHz
  • Material Sound Velocity：(1000-9999)M,S
  • Pulse Shift：(0-2000)mm
  • Probe Zero：(0-99.99)Us
  • Vertical Linear Error：≤3%
  • Transport Package：Wooden
  • Specification：270mm*190mm*60mm
  • Trademark：China Coal
  • Origin：Shandong, China
  • Production Capacity：1000 Sets Per Month

Description

Product Name

Flaw Detector

model

YUT2600

working frequency

(0.5-15)MHz

Resolution

≥32dB

Material sound velocity

(1000-9999)m/s

Dynamic Range

≥30dB

Work way

Pulse echo, twin crystal

Sensitivity margin

≥55dB (depth200mm Φ2)

Pulse shift

(0-2000)mm

Average electrical noise level

≤10%

Probe zero

(0-99.99)us

Battery working time

>8 hour

Gain adjustment

(0-110)dB,(0.1,1,2,6)dB

 power source

12V DC,220V AC

Vertical linear error

≤3%

Dimension

270mm*190mm*60mm

Horizontal linear error

≤0.3%

weight

2Kg

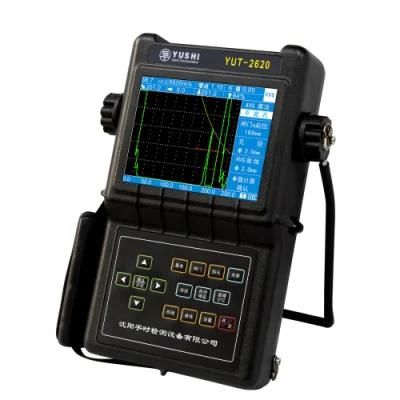

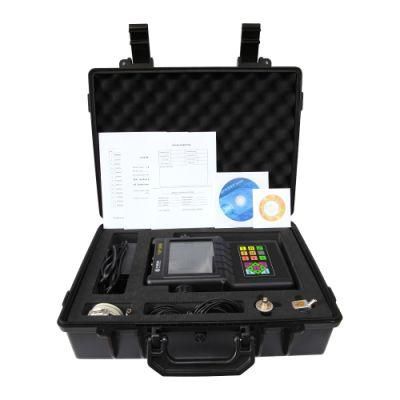

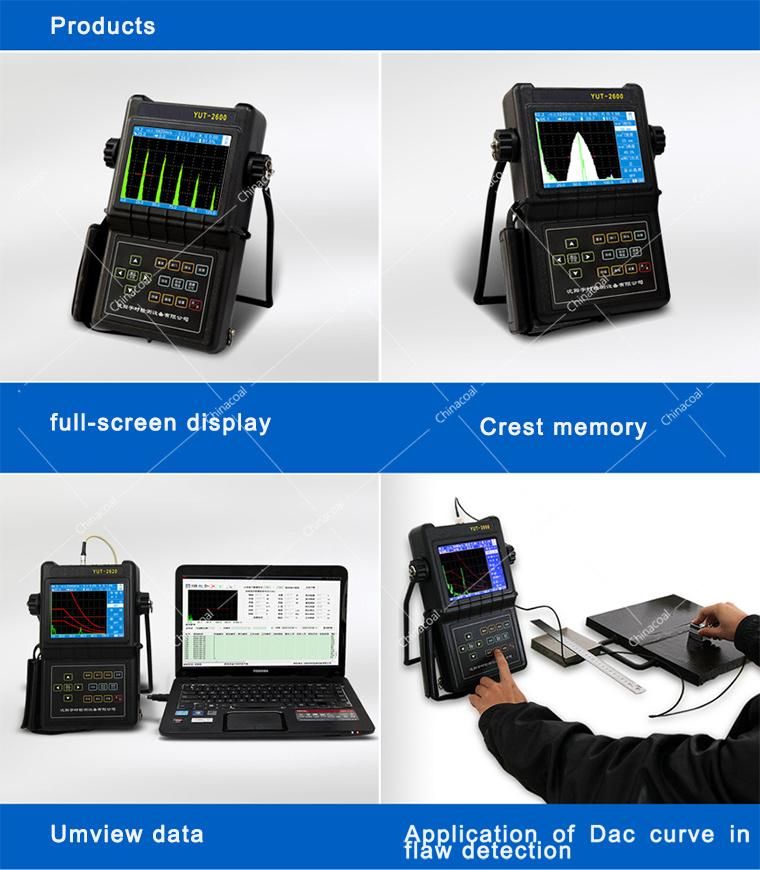

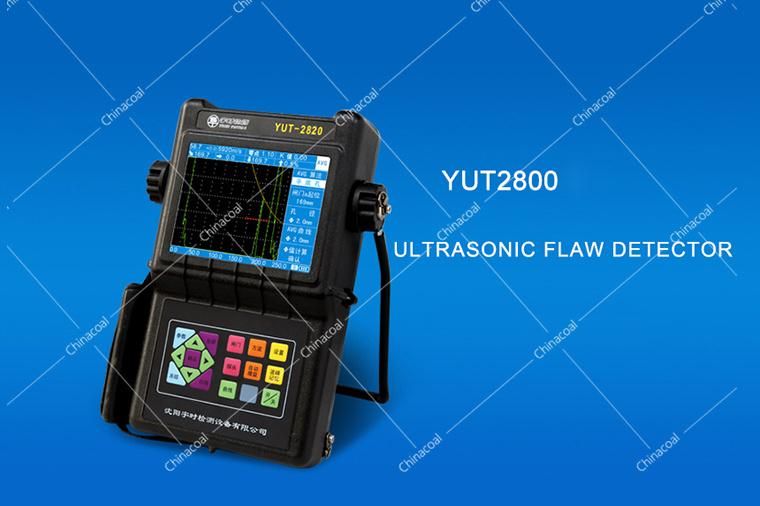

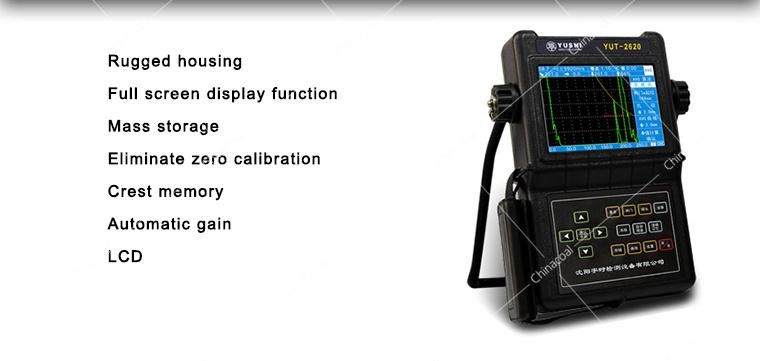

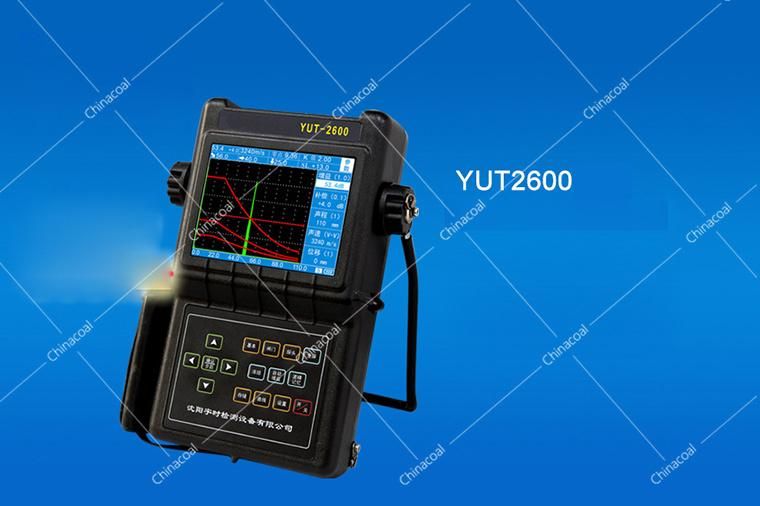

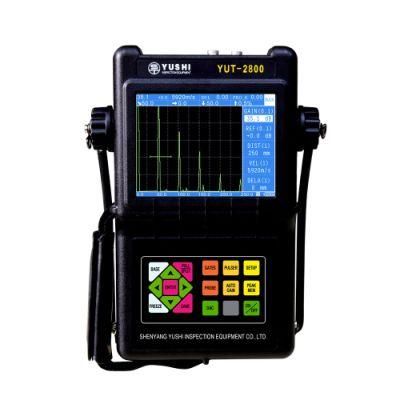

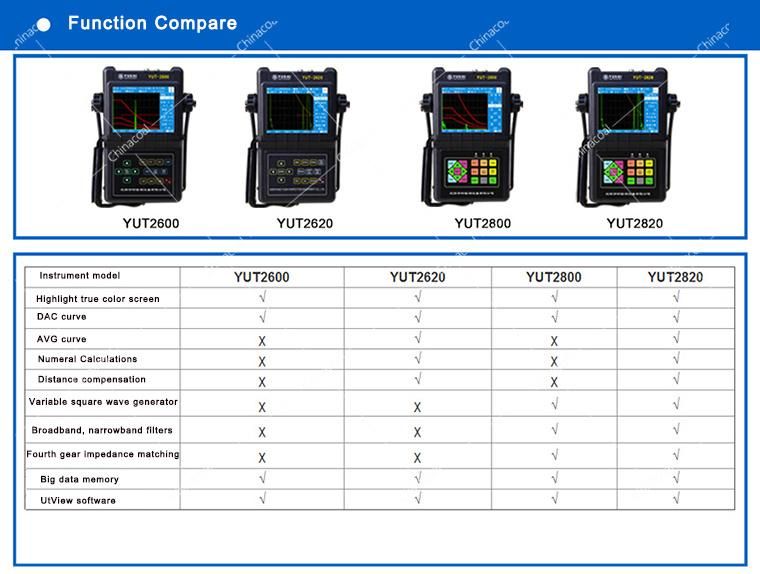

Photos of Ultrasonic Flaw Detector
Portable Digital Ultrasonic Equipment NDT Flaw Detector for SalePortable Digital Ultrasonic Equipment NDT Flaw Detector for SalePortable Digital Ultrasonic Equipment NDT Flaw Detector for SalePortable Digital Ultrasonic Equipment NDT Flaw Detector for SalePortable Digital Ultrasonic Equipment NDT Flaw Detector for SalePortable Digital Ultrasonic Equipment NDT Flaw Detector for Sale
